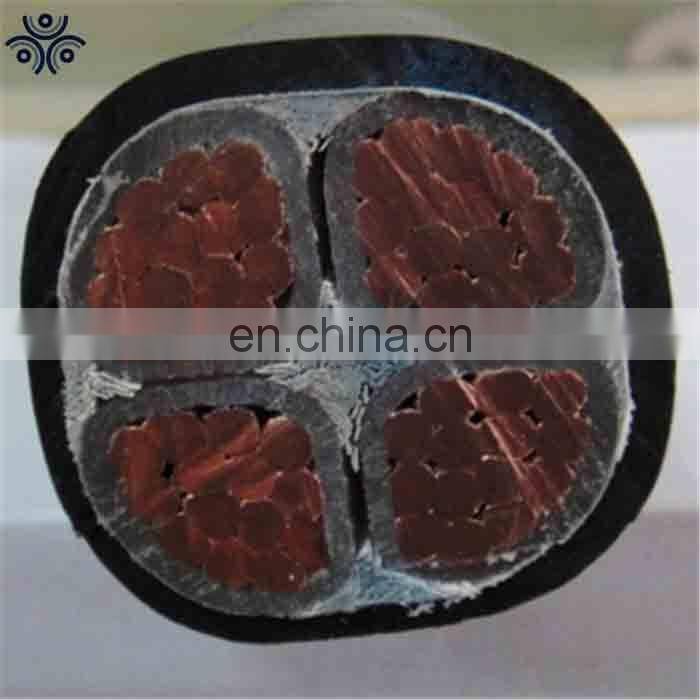

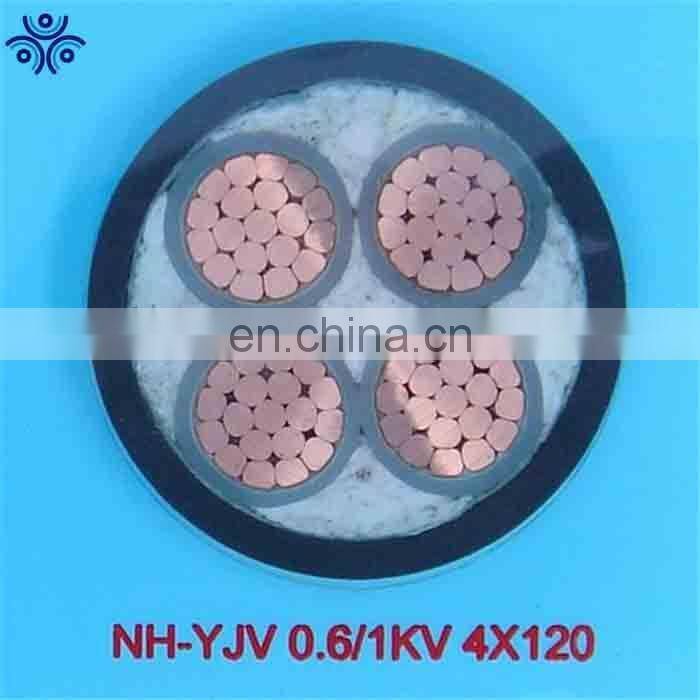

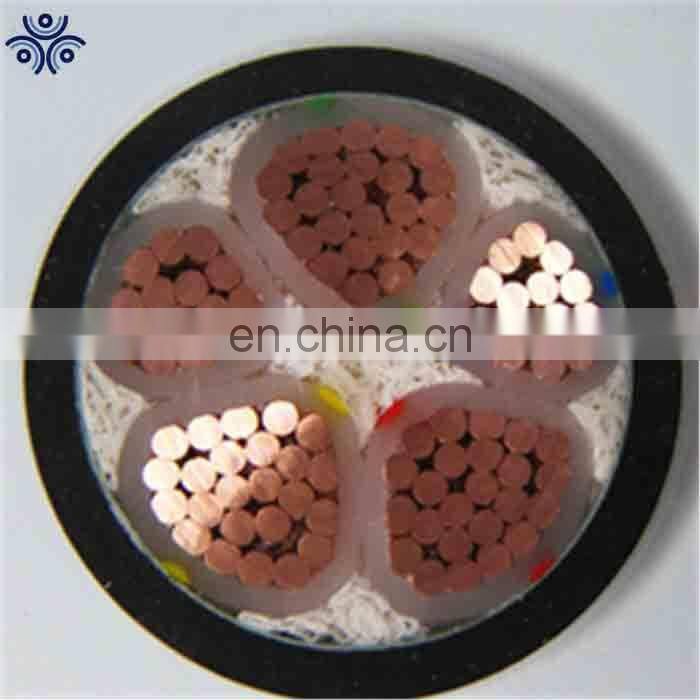

China Professional Manufacture 4 Core Cable Trench Power Cable

China professional manufacture 4 core cable trench power cable

Top ten cable manufacturer in China
Largest cable manufacturer in north China
Annual export volume exceed 200million USD
With UL,TUV,KEMA,CE,BV,PSB,SABS,LLOYD'S,GL,NK,KR,ABS  Products certifications
With TUV type testing report
Wide products range
ISO9001,ISO18001,OHSAS18001 system certifications
CNAS approval laboratory

1 Product Standard

This product is manufactured according to GB/T12706.1, equivalent to IEC60502.1. Or BS, DIN, ICEA standard as customer request.

2 Application

The product is suitable for power transmission and distribution lines with rated power frequency voltage up to and including 0.6/1KV.

Operating Performance

1). Rated power frequency voltage Uo/U: 0.6/1KV.
2). Max. Permissible continuous operating temperature of conductor: 90℃
3). Max. Short-circuit temperature of the conductor shall not exceed: (5S maximum duration) 250℃

4). The ambient temperature under installation should not below 0℃
5). The bending radius of a cable should not be less than 15 times of the cable diameter.

6). The test voltage (A.C.): 3.5kV/5min.

7). The flame-retardant properties of cable comply with grade A, B, C of GB/T19666-2005 or IEC60332.

3 Construction:

Conductor: Solid or stranded copper,aluminum

Insulation: Cross-linked polyethylene( XLPE or PVC)

Circuit Identification: The insulation shall be red, black

Filler: Polypropylene lament with lapped binding tape

Inner Sheath: Polyvinyl chloride (Black)

Core-covering: Binding tape

Outer Sheath: Polyvinyl chloride (Black)

Package:  Wooden Drum Package or Iron-wooden drum

 Type and name

We are one of China top rank cable&wire manufacturer.Our products meet standards of GB, IEC DIN ASTM, JIS, NF, AS/NZS CSA GOST and so on. We also  have obtained ISO9001,ISO14001,OHSAS18001, UL,CE,

KEMA, TUV, SABS,PBS,Bureau Veritas, Lloyd,GL,NK,KR certifications.

 We have obtained UL certifications for TC cable, DLO cable,RHH/RHW/RHW-2,XHHW/XHHW-2/SIS, THHN,SER/SEU/USE, MV-90/MV-105,MC cable,AC cable,TECK 90,SOOW,Welding cable,Mining cable,type DG,PV cable,Shipboard cable  and so on.

Wooden Drum Package or Iron-wooden drum

 HeBei huatong wires&cables Group Co.,ltd.It was established in 1993, we are JV with Furukawa(Japanese company) for rubber serious cables and JV with Riken(Japanese company) for elevator cables. Besides these,our submersible oil pump cable and shipboard cable are very influential in domestic, and, the traditional cables are also produced such as PVC powercables, XLPE power cables, ABC cables, wires, control cables, screened cables,communication cables, conductors.We are OEM for many USA, Europen, Australia cable company,70% of our products are exported, most customers are from developed countries. We got ISO,UL,TUV,KEMA,CE and many other certifications.

CNAS accredited national level laboratory.

1. 25 years production experience and 16 years export experience .

2.high-end  Machinery and equipment for high quality cable .

3.manufacture various of cable :power cable,control cable,abc cable,submersible oil pump cable,rubber cable,elevator cable,electric cable...

4. products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL,DNV:

    system ceryification:ISO9001,ISO14001,OHSAS18001

5.our product sells all over the world and has the good  reputation.

fessional teamwork service for you actively.

7.quick solution and long time online time waiting for your inquiry.

8.rapid delivery and feedback.

9. Stock available, Free sample.

10.We can do that you expect.
