Three Core XLPE Insulated Copper Wire Shield PVC Sheath Power Cable
- 10000 Meter / Meters per Month
- Tianjin Port
- T/T Credit Card
- Single core XLPE insulated copper wire shielded PVC sheath power cable
- Hot sell medium voltage xlpe 24kv power cable/underground cable
- 6.35/11kV Aluminum Type A Cable SABS certificate
- 1KV copper conductor xlpe insulation and pvc sheath power cable for sale
- High quality factory price 600/1000V copper core 70mm2 95mm2 xlpe insulated PVC sheathed power cable
- Great quality 0.6/1KV70mm xlpe insulated pvc sheathed power cable for sale
Product Details
Brand Name: | RNEDA | Place of Origin: | Hebei, China | Model Number: | N2XSEY/NA2XSEY |
Type: | Medium Voltage | Application: | Construction | Insulation Material: | XLPE |
Jacket: | PVC | Conductor Material: | Aluminum |
Product Description

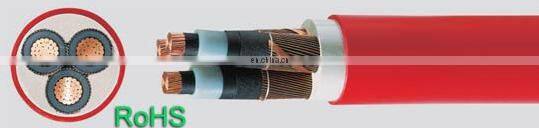

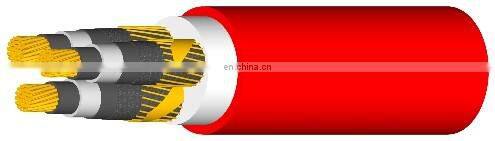

Three Core XLPE Insulated Copper Wire Shield (Or Copper Strip, Or Copper Wire + Copper Strip) PVC Sheath Power Cable
Top ten cable manufacturer in China
Largest cable manufacturer in north China
Annual export volume exceed 200million USD
With UL,TUV,KEMA,CE,BV,PSB,SABS,LLOYD'S,GL,NK,KR,ABS Products certifications
With TUV type testing report
Wide products range
ISO9001,ISO18001,OHSAS18001 system certifications
CNAS approval laboratory
Application:
Conductor shape: Compression Circular
Standard: IEC 60502-1997
Or equivalent DIN, BS, AS/NZS, JIS, ASTM, IS, etc.
Package: Steel or wooden Drum
Additional Options: Halogen free, flame retardant, Low smoke, Anti-termite.
Technical details:
Conductor: Conductor cross section of 800mm2 or below is stranded through compacting round core, with better roundness and higher compacting coefficient. Conductor cross section more than 800mm2 is made by segment of Milliken method to minimize skin connecting and alternating current impedance and increase power transmission capacity of cable.
Insulation: XLPE.
Product line: CCV
Metallic screen/sheath: Copper wire, copper tape or copper wire+tape
Armor: Steel tape
Outer sheath: PVC, MDPE, HDPE, LDPE
Characteristic of use:
Allowable max. long-time operation temperature of cable conductor: 90°C
Allowable Max. short circuit temperature of cable conductor (max. sustaining period not exceeding 5s): 250 °C
Allowable Min. bending radius when laying cable, generally 20 times of the cable diameter
HeBei huatong wires&cables Group Co.,ltd.It was established in 1993, we are JV with Furukawa(Japanese company) for rubber serious cables and JV with Riken(Japanese company) for elevator cables. Besides these,our submersible oil pump cable and shipboard cable are very influential in domestic, and, the traditional cables are also produced such as PVC powercables, XLPE power cables, ABC cables, wires, control cables, screened cables,communication cables, conductors.We are OEM for many USA, Europen, Australia cable company,70% of our products are exported, most customers are from developed countries. We got ISO,UL,TUV,KEMA,CE and many other certifications.
Specialized production equipment
Customer visit
We are one of China top rank cable&wire manufacturer.Our products meet standards of GB, IEC DIN ASTM, JIS, NF, AS/NZS CSA GOST and so on. We also have obtained ISO9001,ISO14001,OHSAS18001, UL,CE,
KEMA, TUV, SABS,PBS,Bureau Veritas, Lloyd,GL,NK,KR certifications.
We have obtained UL certifications for TC cable, DLO cable,RHH/RHW/RHW-2,XHHW/XHHW-2/SIS, THHN,SER/SEU/USE, MV-90/MV-105,MC cable,AC cable,TECK 90,SOOW,Welding cable,Mining cable,type DG,PV cable,Shipboard cable and so on.
CNAS accredited national level laboratory.
Standard Steel or wooden Drum
1. 25 years production experience and 16 years export experience .
2.high-end Machinery and equipment for high quality cable .
3.manufacture various of cable :power cable,control cable,abc cable,submersible oil pump cable,rubber cable,elevator cable,electric cable...
4. products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL,DNV:
system ceryification:ISO9001,ISO14001,OHSAS18001
5.our product sells all over the world and has the good reputation.
fessional teamwork service for you actively.
7.quick solution and long time online time waiting for your inquiry.
8.rapid delivery and feedback.
9. Stock available, Free sample.
10.We can do that you expect.
(1)When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, pleasecall us or tell us in your e-mail so that we will regard your inquiry priority.
(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freightcharge should be paid.
(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account or prepay us if you do not have an account.
(4).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
