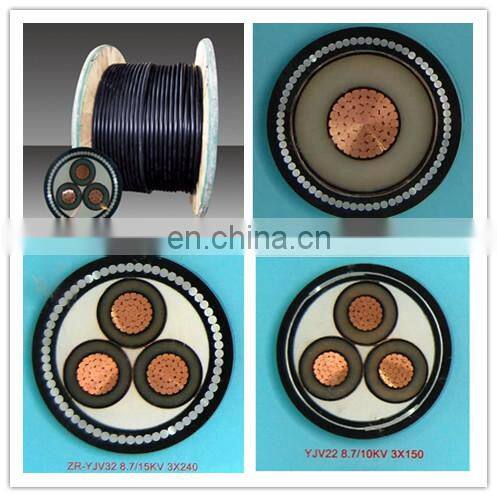

Medium Voltage 24kv 3 Core 240mm2 Steel Wire Armoured XLPE Insulated Power Cable

Medium voltage 24kv 3 core 240mm2  Steel Wire Armoured XLPE Insulated Power Cable

Top ten cable manufacturer in China
Largest cable manufacturer in north China
Annual export volume exceed 200million USD
With UL,TUV,KEMA,CE,BV,PSB,SABS,LLOYD'S,GL,NK,KR,ABS  Products certifications
With TUV type testing report
Wide products range
ISO9001,ISO18001,OHSAS18001 system certifications
CNAS approval laboratory

1 Application:

It is used to transmit and distribute power in power transmission and distribution system of 35kV or lower. It is generally applied to the fields including power, construction, mines, metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable and in partial replace of PVC insulated power cable. Power cables for power networks, underground, outdoors and in cable ducting

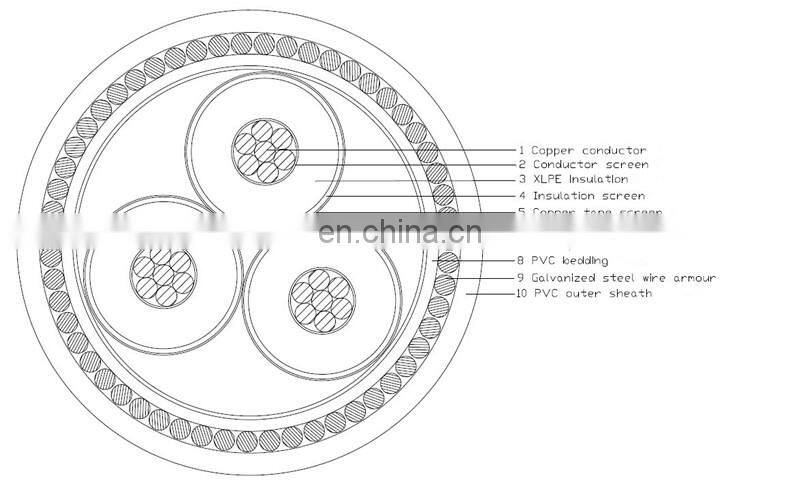

 2 Construction

Standards: BS6622, BS EN/IEC 60228,IEC60502.2

Conductor: Class 2 stranded plain copper conductor to BS EN 60228:2005 (previously BS6360)

Conductor screen: Semi-conducting material

Insulation: XLPE (Cross-Linked Polyethylene) Type GP8 to BS7655

Insulation Screen: Semi-conducting material

Metallic Screen: Individual and overall copper tape screen to BS6622

Filler: PET (Polyethylene Terephthalate) fibres

Separator: Binding tape

Bedding: PVC (Polyvinyl Chloride) Type TM1 to BS7655

Armoring:

Single Core: Aluminum Wire Armored (AWA)

MultiCore: Steel Wire Armored (SWA)

Sheath: PVC (Polyvinyl Chloride) Type TM1 to BS7655

Color: Red or Black

Type and Name

Single Core or Three Cores Armoured  Power Cable

 HeBei huatong wires&cables Group Co.,ltd.It was established in 1993, we are JV with Furukawa(Japanese company) for rubber serious cables and JV with Riken(Japanese company) for elevator cables. Besides these,our submersible oil pump cable and shipboard cable are very influential in domestic, and, the traditional cables are also produced such as PVC powercables, XLPE power cables, ABC cables, wires, control cables, screened cables,communication cables, conductors.We are OEM for many USA, Europen, Australia cable company,70% of our products are exported, most customers are from developed countries. We got ISO,UL,TUV,KEMA,CE and many other certifications.

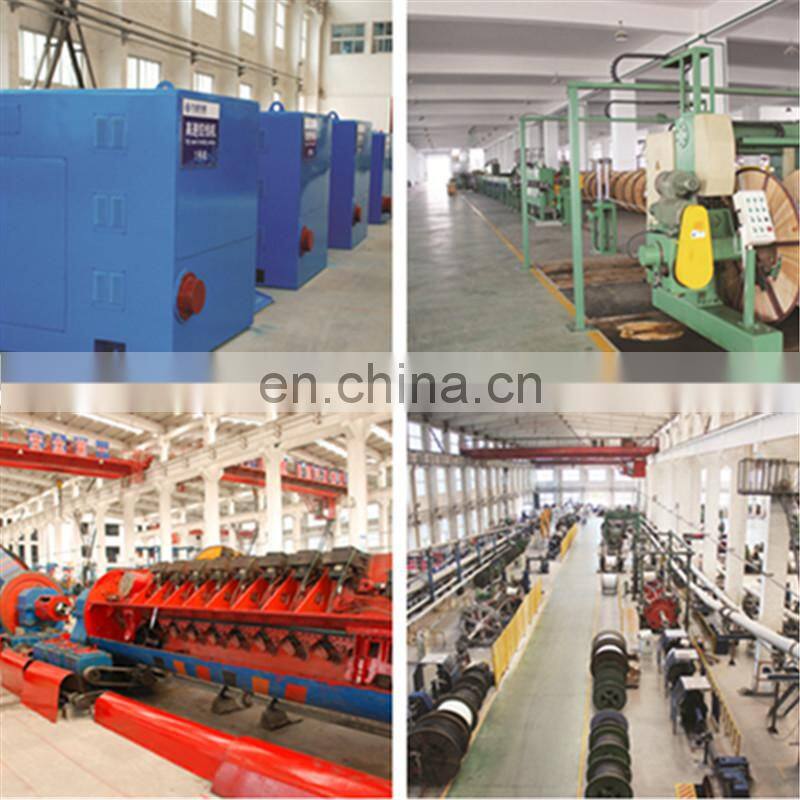

 Specialized production equipment

Customer visit

We are one of China top rank cable&wire manufacturer.Our products meet standards of GB, IEC DIN ASTM, JIS, NF, AS/NZS CSA GOST and so on. We also  have obtained ISO9001,ISO14001,OHSAS18001, UL,CE,

KEMA, TUV, SABS,PBS,Bureau Veritas, Lloyd,GL,NK,KR certifications.

 We have obtained UL certifications for TC cable, DLO cable,RHH/RHW/RHW-2,XHHW/XHHW-2/SIS, THHN,SER/SEU/USE, MV-90/MV-105,MC cable,AC cable,TECK 90,SOOW,Welding cable,Mining cable,type DG,PV cable,Shipboard cable  and so on.

CNAS accredited national level laboratory.

Standard drum for armored cable

1. 25 years production experience and 16 years export experience .

2.high-end  Machinery and equipment for high quality cable .

3.manufacture various of cable :power cable,control cable,abc cable,submersible oil pump cable,rubber cable,elevator cable,electric cable...

4. products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL,DNV:

    system ceryification:ISO9001,ISO14001,OHSAS18001

5.our product sells all over the world and has the good  reputation.

fessional teamwork service for you actively.

7.quick solution and long time online time waiting for your inquiry.

8.rapid delivery and feedback.

9. Stock available, Free sample.

10.We can do that you expect.
