GLC Shell and Tube Coolers

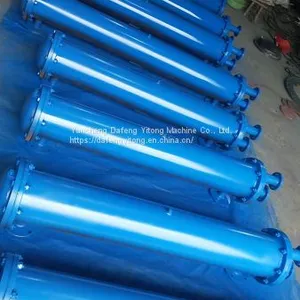

GLC Shell and Tube Coolers thumbnail-1

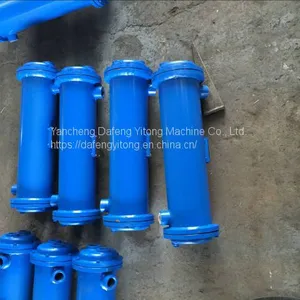

GLC Shell and Tube Coolers thumbnail-2

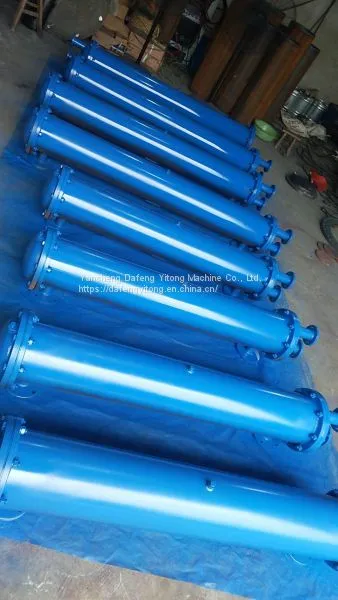

GLC Shell and Tube Coolers photo-1

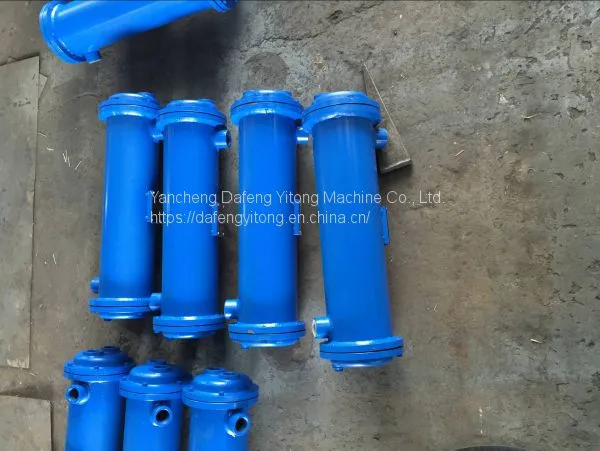

GLC Shell and Tube Coolers photo-2
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
OEM
Place of Origin:
China
Model Number:
GLC
Contact Supplier Request Quote Chat Now
Yancheng Dafeng Yitong Machine Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
guangzhou
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name OEM
Place of Origin China
Model Number GLC
After-sales Service Provided No overseas service provided
Warranty 1year
Condition New
Structure Tube Heat Exchanger
Maximum Working Pressure 1Mpa

Dimensional sketch of GLC shell and tube coolers

Dimension table of GLC shell and tube coolers

Model

L

C

L1

H1

H2

D1

D2

C1

C2

B

L2

L3

N-D3

D1

D2

GLC1-0.4

370

240

67

75

87

89

115

45

102

132

115

145

4-(φ11)

G1”

(Dg25)

G3/4”

(Dg20)

GLC1-0.6

540

405

310

GLC1-0.8

660

532

435

GLC1-1

810

665

570

GLC1-1.2

940

805

715

GLC2-1.3

560

375

98

90

100

121

162

75

145

175

172

225

4-(φ11)

G1”

(Dg25)

G 1”

(Dg25)

GLC2-1.7

690

500

350

GLC2-2.1

820

635

485

GLC2-2.6

960

775

630

GLC2-3

1110

925

780

GLC2-3.5

1270

1085

935

GLC3-4

840

570

152

118

138

165

215

110

170

210

245

380

4-(φ15)

G1   1/2”

(Dg25)

G1 1/4”

(Dg30)

GLC3-5

990

720

530

GLC3-6

1140

870

680

GLC3-7

1310

1040

850

GLC3-8

1470

1200

1010

G2”

(Dg50)

G1 1/2”

(Dg36)

GLC3-9

1630

1360

1170

GLC3-10

1800

1530

1340

GLC3-11

1980

1710

1520

GLC4-13

1340

985

197

147

170

219

293

140

270

320

318

745

4-(φ19)

G2”

(Dg50)

G2”

(Dg50)

GLC4-15

1500

1145

905

GLC4-17

1660

1305

1065

GLC4-19

1830

1475

1235

GLC4-21

2010

1655

1415

GLC4-23

2180

1825

1585

GLC4-25

2360

2005

1765

GLC4-27

2530

2175

1935

GLC5-30

1932

1570

202

182

236

273

360

180

280

320

327

1320

4-(φ23)

G2   1/2”

(Dg60)

G2 ”

(Dg50)

GLC5-34

2152

1790

1540

GLC5-37

2322

1960

1710

GLC5-41

2542

2180

1930

GLC5-44

2712

2350

2100

GLC5-48

2872

2510

2260

GLC5-51

3092

2730

2480

GLC5-54

3262

2900

2650

GLC6-55

2272

1860

227

208

282

325

410

200

300

390

362

1590

4-(φ23)

G3”

(Dg70)

G2 1/2”

(Dg60)

GLC6-60

2452

2040

1170

GLC6-65

2632

2220

1950

GLC6-70

2812

2400

2130

GLC6-75

2992

2580

2310

GLC6-80

3172

2760

2490

GLC6-85

3352

2940

2670

GLC6-90

3532

3120

2850




Product Tags: shell and tube coolers , GLC3-4 , GLC3-8
