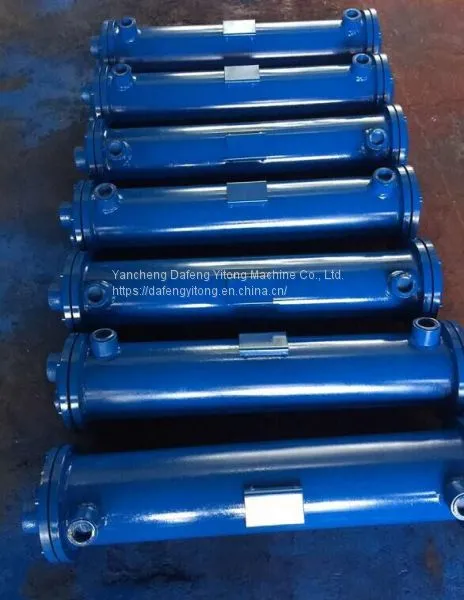

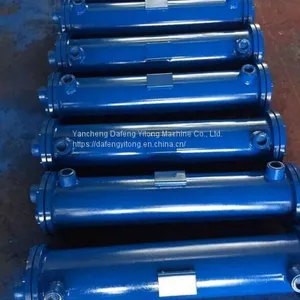

Help CenterGL Shell and Tube Coolers
Related Products
Our company produces GLC, GLL, LQ, LC, SL, LQG, FC and KL shell and tube coolers. At the same time, the company produces a variety of non-standard shell and tube coolers. shell and tube coolers are widely used in metallurgy, mining, power, machine tools, light industry, chemical industry and other industries in the cold and heat exchange of hydraulic oil, well received by domestic and foreign fields.
Description of GL shell and tube coolers
GL X X — X / X X X
Installation Form L:vertical,Horizontal non-marking.
Tube count
S:Four,Double non-marking.
Nominal pressure MPa。
Nominal cooling area㎡.
Serial number (1.2.3.4.5.6.7)
Tube Structure C: finned tube,L: fare tube
shell and tube coolers
Type and Performance Parameter Table
Type |
Cooling Area |
Pressure |
Temperature |
Pressure drop |
Oil-water flow ratio |
Medium viscosity |
Heat transfer coefficient |
||||
GLC1 |
0.4~1.2 |
0.63 1.0 |
≤120 |
≤0.1 |
≤0.05 |
1：1 |
20~300 |
≥350 |
|||
GLC2 |
1.3~3.5 |
||||||||||
GLC3 |
4~11 |
||||||||||
GLC4 |
13~27 |
||||||||||
GLC5 |
30~54 |
||||||||||
GLC6 |
55~90 |
||||||||||
GLL2 |
3~7 |
0.63 1.0 |
1：1.5 |
≥300 |
|||||||
GLL3 |
8~11 |
||||||||||
GLL4 |
12~28 |
||||||||||
GLL5 |
35~60 |
||||||||||
GLL6 |
80~120 |
||||||||||
GLL7 |
140~180 |
||||||||||
GLL8 |
200~300 |
||||||||||
