Strongly Recommended Rock Drilling Rig /core Drilling Machine for Sale

FOB Price

US$ 4500 - 5000 / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsT/T L/C D/P D/A
Delivery Detail3 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HuaxiaMaster	Place of Origin	China
Model Number	QZ-2C	Type	Core Drilling Rig
Certification	ISO	After-sales Service Provided	Engineers available to service machinery overseas
Warranty	one year	Weight	95
Dimension(LWH)	6004501900	Power Type	Diesel
Voltage	220	Usage	Coal
Condition	New	Power(W)	6(4.5kw)

Product Description

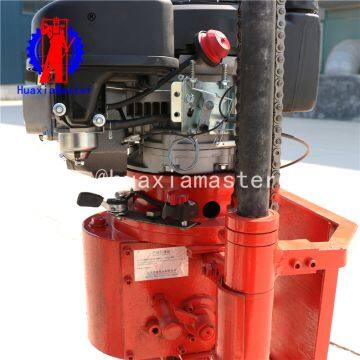

1.The brief introduction of QZ-2C portable core drill rig

QZ-2C type gasoline engine portable sampling drill for geological industrial and civil buildings, bridges, railway, highway, hydropower industry survey, geophysical exploration, advanced drilling and grouting hole drilling, embedded hole guiding, broken hole, hole, check out small household wells.

QZ-2C drilling rig feature: compact structure、small volume、light weight、two gears、easy movement.

2.The techincal parameter of QZ-2C gasoline core drilling rig

QZ-2C
End hole caliber (mm)		32-91
Drilling depth（m）		soil φ91：10-15m stone φ91：5-10m stone φ75：10-15m stone φ60：15-20m stone φ46：20-30m
Diameter of drill rod(mm)		30
Gasoline engine	Soup(hp）	6(4.5kw)
	Displacemen（cc）	224
Dimension（lwh）		6004501900
Weight（kg）		95

3.The packing list of QZ-2C portable sampling drilling machine with gasoline engine

Name	Model	Unit	Quantity
Gasoline core drilling rig	QZ-2C	set	1
Drill rod	φ30*1500	root	6
Drill rod	φ30*800	root	14
Pipe joint	Φ38	pcs	20
Core tube joint	φ58/38	pcs	2
Core tube	φ58*800	root	1
Core tube	φ58*1500	root	1

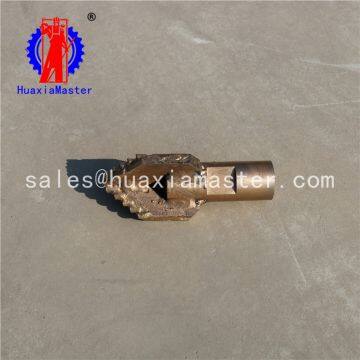

Alloy bit	φ60	pcs	1
Diamond bit	φ60	pcs	1
Core tube joint	φ73/38	pcs	2
Core tube	φ73*800	root	1
Alloy bit	φ75	pcs	1
Diamond bit	φ75	pcs	1
Soil bit	Φ75	pcs	1
Plate fork		pcs	1
Water seal type	Y 305010	pcs	4
Oil seal	305010	pcs	1
Pipe tongs	18	pcs	2
Monkey wrench		pcs	1
Shaft snap ring clamp		pcs	1
Hole snap ring clamp		pcs	1
Clamp		pcs	1
Cross screwdriver		pcs	1
Hex wrench		pcs	1
Steering wheel		Pcs	1

（If you need a wooden base, a high pressure pump, and a high pressure water pipe, please explain）
