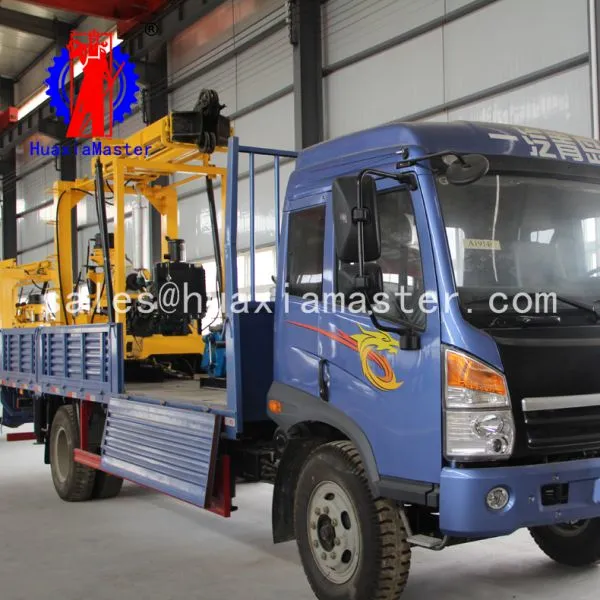

1.Main features of XYC-3 vehicle type drilling rig
a.XYC-3 vehicle driller for multi function hydraulic vertical shaft rotary drilling rig.
b.The car chassis adopts Qingdao liberation truck chassis, drilling rig transmission system and hoist, mud pump and other important accessories installed on the chassis. The layout is reasonable and compact, and the operation is simple.
c.The BW-250 slurry pump is equipped with high pressure and large flow, which ensures drilling depth and bore diameter.
d.The drilling machine self matching mobile device can realize the movement of the drill machine's own front and back, and it is convenient for the wellhead operation.
e.The rig tower hydraulic lifting type automatic telescopic rigs, safe and convenient operation.
2.Adaptability range of XYC-3 vehicle type drilling rig
Geological survey and exploration, road and high-rise building foundation exploration, and all kinds of concrete structure inspection holes, river embankments, subgrade grouting holes, drilling and direct grouting, civil wells and ground temperature central air conditioners.
3. Parameters of XYC-3 vehicle type drilling rig
XYC-3 vehicle type drilling rig | |||
Drill depth |
30-600 |
||
Drill hole diameter |
300-75 |
||
Diameter of the end hole |
75 |
||
Drill angle |
90-75 |
||
Spindle forward rotary speed |
30-1050 |
||
Spindle reverse rotary speed |
29-137 |
||
Spindle stroke |
600 |
||
Main winch lifting force |
3000 |
||
Main winch rope capacity |
65 |
||
Lifting speed |
0.3-1.9 |
||
Rope diameter |
12.5 |
||
Drill mast height |
7000 |
||
Drill effective height |
6500 |
||
Driving drilling rod |
59*53、70*63、79*89 |
||
Drilling rod diameter |
42/50/60 |
||
Weight |
3500 |
||
Engine |
Model:Yunnei YN27 |
||
|
BW-250 Mud pump |
Rated flow (l/min) |
250 |
|
Ratedpower(mpa) |
7 |
||
Driving power(kw) |
15 |
||
Host weight(kg) |
500 |
||
Dimension(mm) |
1110*994*665 |
||
|
Chassis
|
Model |
The liberation of Qingdao truck 180 HP 4*2 truck |
|
Driving form |
4*2 |
||
Engine |
Model |
BF4M2012-16E4 |
|
Emission standard |
GB17691-2005Ⅳ |
||
Rated power (kw) |
121 |
||
Rotary speed (r/min) |
2200 |
||
External dimension (mm) |
8998*2496*2900 |
||
Shandong Master Machinery Group Co.,Ltd.
Sales manager：Candice
Mobile phone：8618865479502
WeChat: 18865479502
QQ：1447852867
Send Inquiry to This Supplier
