Product Details
| Brand Name | HuaxiaMaster | Place of Origin | China | |
| Model Number | QTZ-2 | Type | Core Drilling Rig | |
| Certification | ISO | After-sales Service Provided | Engineers available to service machinery overseas | |
| Warranty | one year | Weight | 25KG | |
| Power Type | Diesel | Voltage | 220 | |
| Usage | Ore | Condition | New | |
| Power(W) | 3.3HP |
Product Description

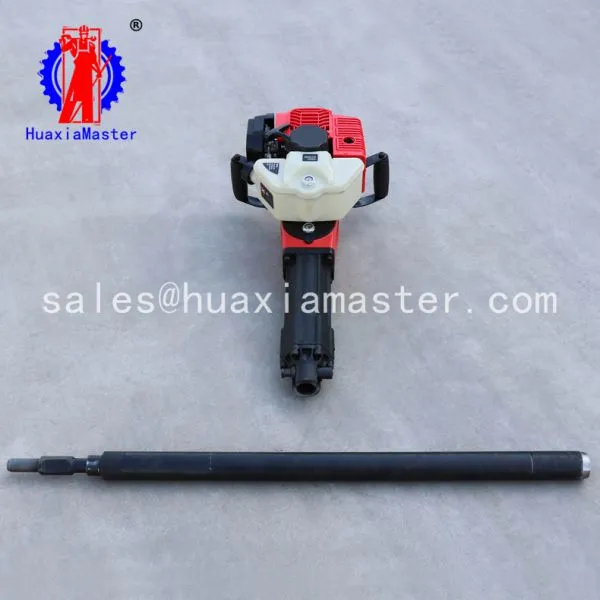

1.The brief introduction of QTZ-2 portable driller
QTZ-2 portable soil drilling rig is an improvement of the QTZ-1 portable soil drilling rig, The rig adopts the strengthening power, the impact force is stronger and the drilling is deeper, which can meet the needs of the soil sampling engineering of the depth of 10~15 meters.
2. The range of application of QTZ-2 portable soil drilling rig
a.Geotechnical engineering investigation; environmental soil survey; agricultural soil survey.
b.Groundwater survey; coastal geological survey; wetland environment investigation.
c.Tailing pond investigation, archaeological investigation, physical chemistry and secondary halo sampling.
3.The technical parameters of QTZ-2 portable soil drilling rig
QTZ-2 portable earth drilling rig | ||
Power | Power | 3.3HP |
Fire mode | backflush pull rope | |
Oil consumption | 0.55 l/h | |
Impact times | 1650r/min | |
Impact energy | 35J-65J | |
Core depth | 10m-15m | |
Host weight | 25kg | |

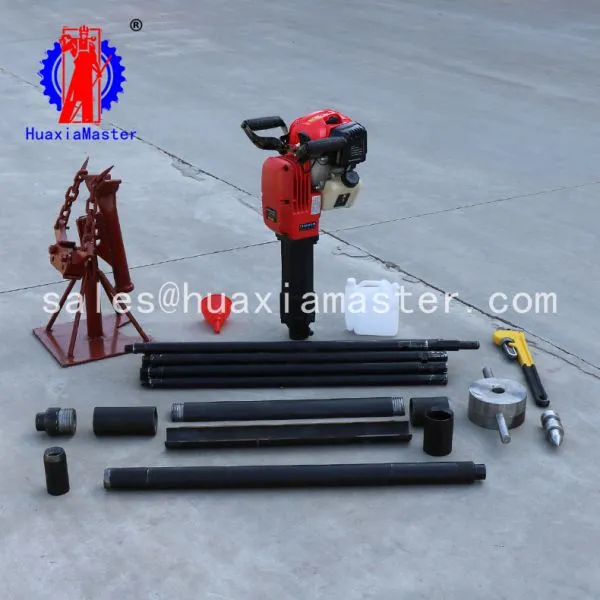

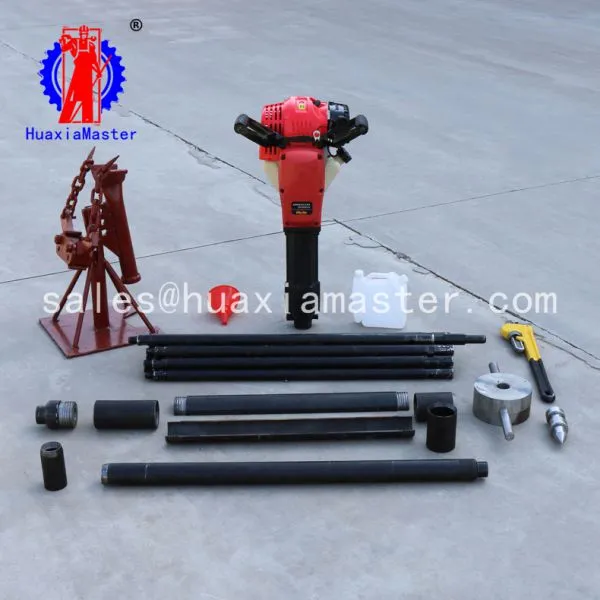

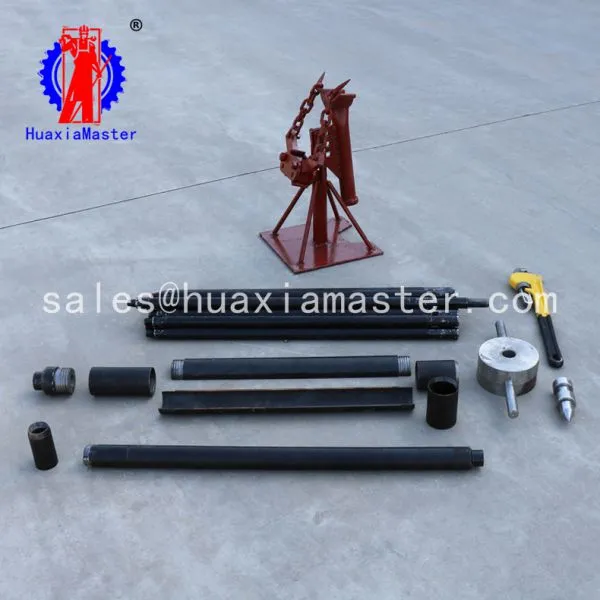

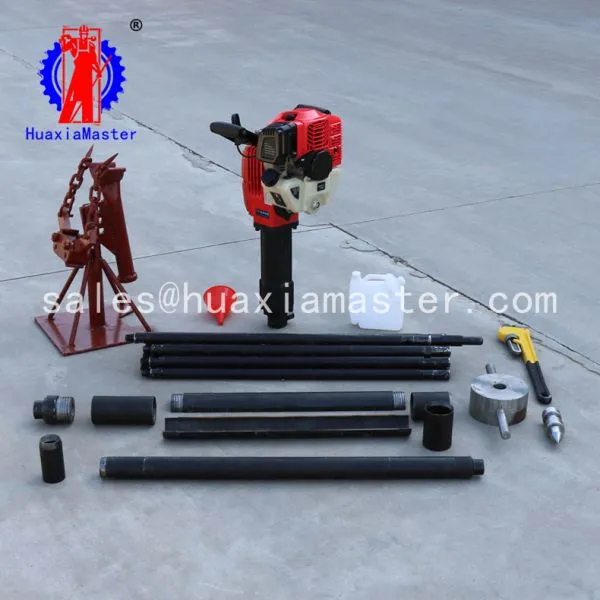

4.The packing list of QTZ-2 portable driller
Name | Model | Unit | Quantity |
Portable driller | QTZ-2 | platform | 1 |
Square buckle | φ32*150 | pcs | 1 |
Cones | φ32*80 | pcs | 13 |

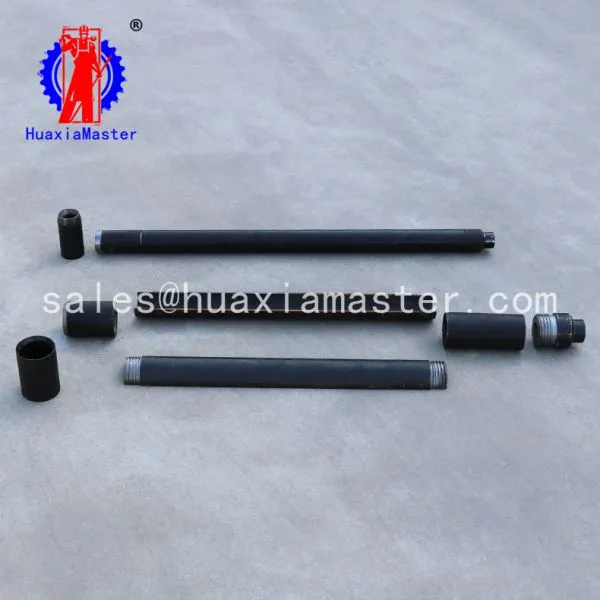

Drill pipe | φ32*700 | root | 13 |
Taper wire | φ32*100 | pcs | 13 |
Head | φ32*50 | pcs | 1 |
Collar | φ50*150 | pcs | 1 |
Open tube | φ50*600 | root | 1 |
Double-edged pipe boots | φ50*100 | pcs | 2 |
Head | φ32*70 | pcs | 1 |
Collar | φ70*150 | pcs | 1 |
Open tube | φ70*600 | root | 1 |
Inner edge pipe boots | φ70*100 | pcs | 1 |
Outer edge pipe boots | φ70*100 | pcs | 1 |
Portable sounding hammer | 10kg | pcs | 1 |
Sounding the head | φ32 | pcs | 1 |
Double sided hand | φ32 | pcs | 1 |
Touch probe | φ32 | pcs | 1 |
Puller | three force arm | set | 1 |
The ratio of oil | 25:1 | pcs | 1 |
Oil injection funnel | pcs | 1 | |
Forceps | 80mm | hold | 1 |
Dedicated six party | Multi-function | 1 | |
Wrench | 24/27 | 1 | |
Internal six party | #6 | 1 | |
Six prismatic wrench | 1 | ||
Spark plug wrench | 1 | ||
Bolt driver | 1 | ||
Spare spark plug | 1 |
