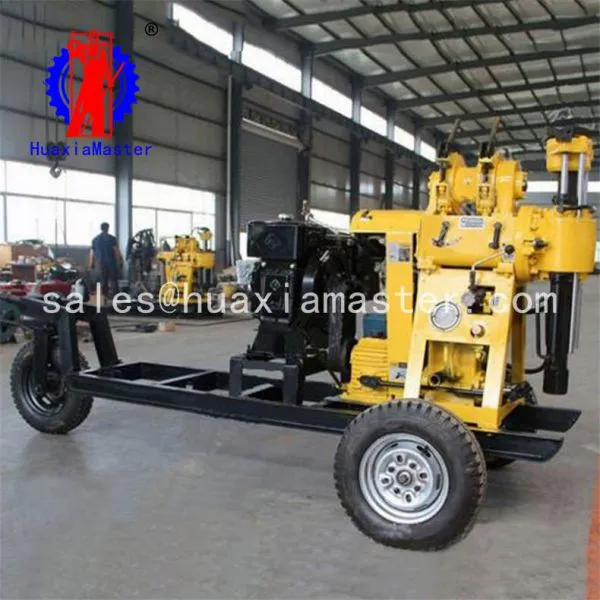

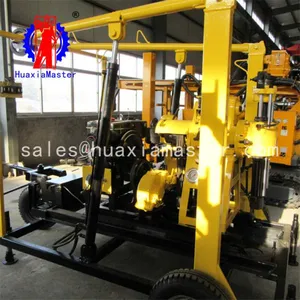

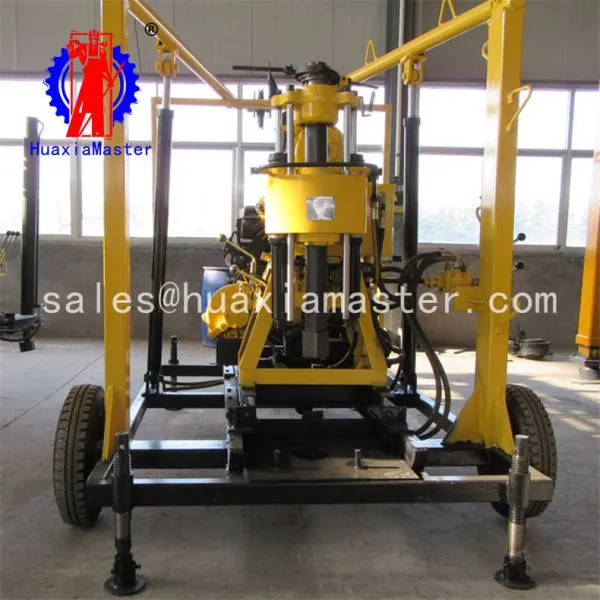

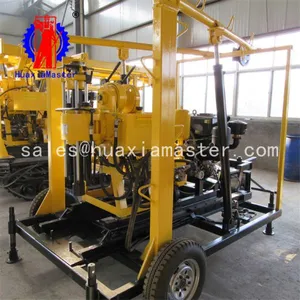

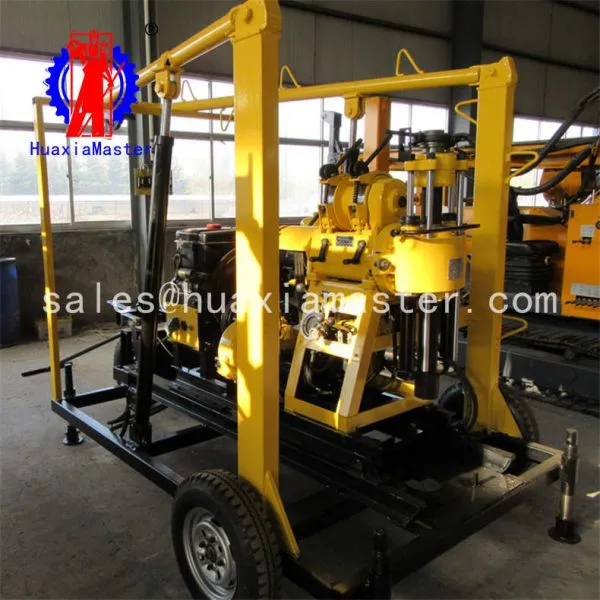

Tractor mounted hydraulic water well drilling rig for sale/water well drilling equipment
- 100 Set / Sets per Month
- Qingdao
- T/T L/C D/P D/A
- 3 days
-
China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
-
100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
-
HY-50H Small Domestic Hydraulic Water Well Drilling Rig of China
-
50m Depth Core Drilling Rig Portable Diamond in Mountain
-
TSP core bit, BQ NQ HQ PQ core drill bits, HWL, wireline core barrels, diamond coring bits, hard formation, deep hole rock core recovery
-
1.5M 3M inner tube assembly, wireline core barrels, head assembly, impregnated diamond drilling, hard formation coring, deep hole rock core recovery
Product Details
| Brand Name: | HuaxiaMaster | Place of Origin: | China | Model Number: | XYX-130 |
| Type: | Rotary Drilling Rig | Certification: | ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
| Warranty: | one year | Weight: | 1600kg | Dimension(L*W*H): | 680*1200*3800 |
| Power Type: | Diesel | Voltage: | 220 | Usage: | Water Well |
| Condition: | New | Power(W): | 13.2 |
Product Description
1. Application range of XYX-130 wheeled drilling rig
Geological survey and exploration, basic exploration for roads and high-rise buildings, inspection holes for various concrete structures, river embankments, subgrade grouting holes, direct grouting, civil wells and ground temperature central air conditioners.
2.Main features of XYX-130 wheeled hydraulic drilling rig
The rig is equipped with a wheeled walking mechanism, which is convenient for the whole machine to move.
With oil pressure feeding mechanism to improve drilling efficiency.
The drill rig is equipped with a ball card holding mechanism instead of chuck, and it can be operated without stopping the rod. The working efficiency is high and the operation is convenient and safe and reliable.
Equipped with pressure gauge at the bottom of the hole to facilitate mastering the hole in the hole.
3.Technical parameters of XYX-130 wheeled drilling rig
XYX-130 wheeled drilling rig | |
Drilling depth | 130m |
Max open hole caliber | 220mm |
End hole caliber | 75mm |
Drilling Rod diameter | 50mm |
Drilling angle | 90°-75° |
Drill weight | 950kg |
Spindle | |
Spindle speed | 142 285 570r/min |
Spindle stroke | 450mm |
Windlass | |
Maximum lifting weight of single rope | 1600kg |
Single rope lifting speed | 0.41 0.82 1.64m/s |
Drum diameter | 140mm |
Wire rope diameter | 13mm |
Wire rope capacity | 27m |
Mud pump | |
Type | Horizontal single cylinder double action |
Displacement diesel engine / motor | 95/77L/min |
Maximum pressure | 1.2Mpa |
Work pressure | 0.7Mpa |
Inlet Size | 30mm |
Outlet pipe diameter | 20mm |
Trigonometric belt | B1575mm |
