High Quality 20 w Fiber Laser Marking Machine for Rings Key

High Quality 20 w Fiber Laser Marking Machine for Rings Key thumbnail-1
High Quality 20 w Fiber Laser Marking Machine for Rings Key thumbnail-2
High Quality 20 w Fiber Laser Marking Machine for Rings Key thumbnail-3
High Quality 20 w Fiber Laser Marking Machine for Rings Key photo-1
High Quality 20 w Fiber Laser Marking Machine for Rings Key photo-2
High Quality 20 w Fiber Laser Marking Machine for Rings Key photo-3
US$ 2500 - 5000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Jiaoxi
Place of Origin:
China
Model Number:
JX-FTBX-Y20
Contact Supplier Request Quote Chat Now
Shanghai Jiaoxi Laser Equipment Co.,ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai port
Delivery Detail:
3 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Jiaoxi
Place of Origin China
Model Number JX-FTBX-Y20
Certification CE, ISO, SGS
After-sales Service Provided Engineers available to service machinery overseas
Condition New
Power(W) 500W
Graphic Format Supported AI, BMP, DST, DWG, DXF, DXP, PLT
Control Software EZCAD
Cooling Mode Air Cooling
CNC or Not No
Laser Type Fiber Laser
Working Accuracy 0.002mm
Product Description
 Machine Parameter
                           Laser watts
                                     20W/ 30W/50W/100W
                          Marking area
      110*110/200*200/300*300mm (Other size is optional)
                          Laser type
                                   MAX/Rycus/IPG
                             Power
                                       200 watt
                       Laser Wavelength
                                        1064nm
                          Response time
                                          0.5ms
            Batter, laser welding frequency
                                           20-100KHz
                       Cooling system
                                  Air Cooling
                             Marking depth
                                         ≤0.4mm
                             Marking speed
                                       ≤7000mm/s
                              Marking lines
                            1-10 lines(in the marking area)
                                  Accuracy
                                      ±0.001mm
                   Minimum line width
                                            0.1mm
                   Minimum character
                                           0.15mm
                  Speed and power control
           Computer or manually controlled speed,
max up to 600mm/s, and power in 1% increments to 100%.
                       Operation system
                      Microsoft Windows7 / 2000 / XP, etc
                          Control software
                                    JCZ EZCAD software
                  Electrical requirements
                                       AC 110-220V ± 10%
Products Introduction
1.Application range: Can be used on many materials like metal, plastic, leather, alloy etc. Can be used in many industries like Jewelry engraving, Medical devices, Phone case engraving, Hardware industry, stainless steel tableware, electron components marking etc. Below is a Youtube link for it's marking
/watch?v=lA6rPbme-8Q&t=34s

2.Permanent marking: Laser marking is a permanent marking. It won't fade, run or become less discernable as time passes like traditional marking including ink jet, hand engraving, dot-peen marking.

3.Long service time: Fiber laser model has a over 100,000 hours working life. Almost no maintenance during this period.

4.Easy to operate: Support almost any Windows-based software like Coreldraw, AutoCAD, Photoshop. No need to adjust Q-switch easier than YAG diode marking machine.

5.High precision: 0.0025mm re-position accuracy. Minimum line width 0.01mm.

6.Non-contact process: Won't cause mechanical extrusion or mechanical stress to materials. Laser beam won't move the work piece.

7.Portable: Small footprint, easy to move and transportation. Size like a computer case.
Main components

1.1 The European CE standard production

1.2 Marking area: 110*110mm

1.3 Laser type: fiber laser source 20w Raycus laser source(the best quality laser in China)

1.4 Sino brand galvo head.

1.5 F-theta lens: Wavelength brand from Singapore.

1.6 Control system: Beijing JCZ control system, EZCAD software.

1.7 Supported Photoshop, Coral draw and format AI, PLT, DXF, BMP, DST, DWG, DXP etc.

1.8 Computer: Industrial Desktop computer.

1.9 Working table: 2D (X-Y worktable).

1.10 Protective glasses

Detailed Images

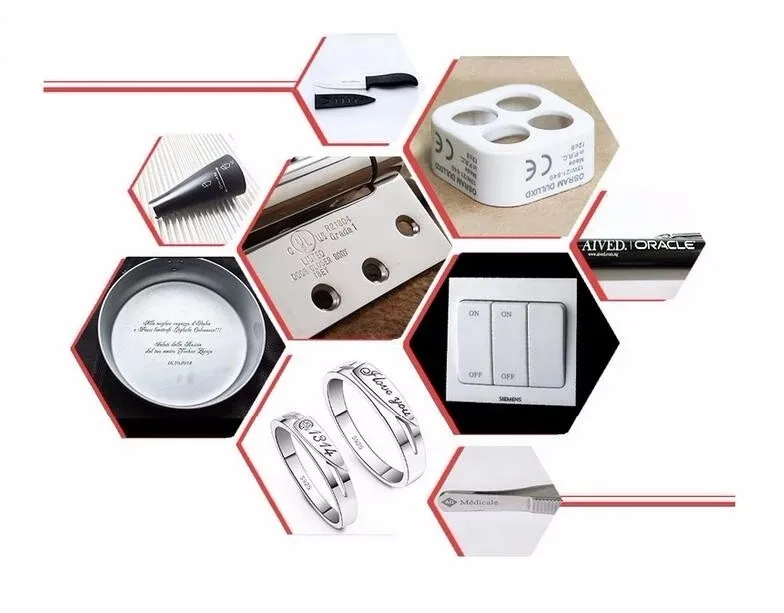

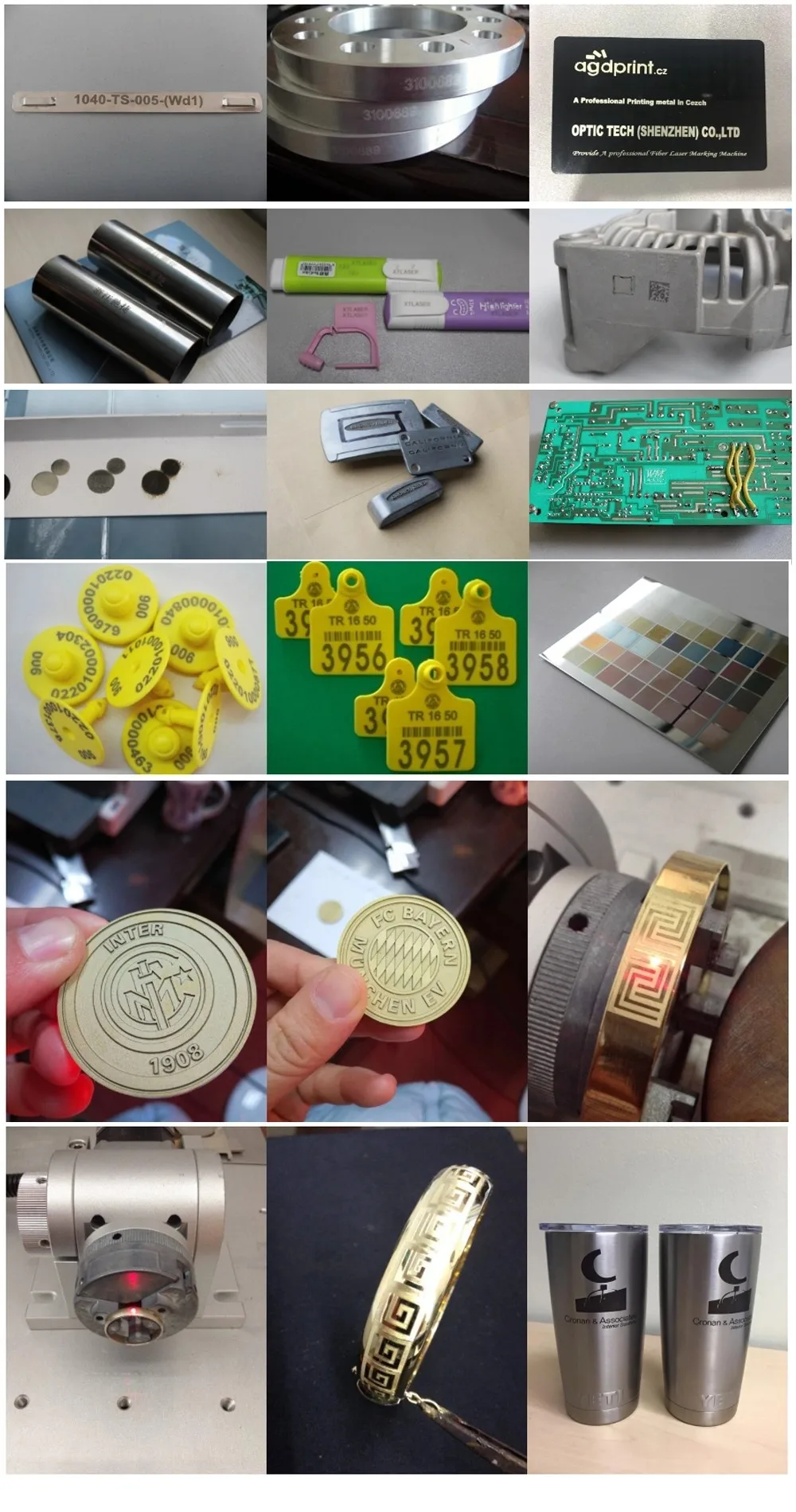

Product Samples
Company Information

Shanghai Jiaoxi Laser Equipment Co.,Ltd is a professional manufacturer of  Laser Marking Machine ,Laser Cutting Machine and CNC ROUTER ,Located in Shanghai

Baoshan industrial zone,it has a modern R & D center and manufacturing plant,since it was established ,it has continued to train and recruit talents through cooperation with colleges and brought a large number of enterprising and leading elites of the industry

 Our company mainly products including laser marking machine ,CO2 laser cutting machine and cnc router etc , widely used in metal and non-metal field ,for example hardware ,integrated circuit chips ,

industrial bearings ,variety of auto parts ,hardware tools ,wire and cable ,mould,garment leather and craft gifts etc .in line with our advanced philosophy ,excellent products ,down to earth service,along with our strong R&D and production  capacity ,wide social cooperation as well as efforts of our every employee,some machines are exported to the Europe, America, Singapore, Vietnam, India and  Bangladesh etc .

Manufacturer the world first-class laser equipments is the enternal pursuit of  jiaoxi laser
