20w fiber laser marking machine for stainless steel
Application of Fiber Laser Marking Machine
for mobile phones buttons, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products and so on
Description of Fiber Laser Marking Machine
1.Adopt the advanced fiber laser system and speedy gavol scanning system,
it ensures excellent laser focusable beam and stable performance.
2.High Speed, Compared with the YAG laser marking machine,its marking speed can reach up to 8000mm/s.
3.Compared with YAG laser or diode laser, it has a much higherphotoelectric conversion efficiency.The efficiency
of optic-electrical converting is up to 30%.
4.Long-span working life: its working life is up to 100000 hours.
5.Easy Operation: Special control software,compatible with a variety of software, strong function, easy for learning
and operate. We can see the power, speed, frequency parameters in the software,
and design the working file in AutoCAD, CorelDRAW and Photoshop and so on.
6.No maintenance:Without any consumptive part and no maintenance within life time.
Machine parameter:
Marking Range |
110*110mm |
Laser types |
Fiber laser |
Laser power |
20w/30W |
Marking speed |
≤7000mm/s |
Location accuracy |
±0.01mm |
Laser source |
RAYCUS |
Auxiliary accessories |
computer,vibration lens |
Laser wavelength |
1064nm |
Repeating Frequency |
20-80KHZ |
Beam Quality |
M |
Marking Depth |
0.1-2 mm(depend on material and marking time) |
Marking Speed |
≤10,000mm/s |
Min.line Width |
0.01mm |
Min.Character |
0.1mm |
Repeatability Accuracy |
±0.002 |
Power Supply |
220V±10% / 50-60Hz |
Power Consumption |
500w |
Operating System |
Win98/Win2000/WinXP/Win 7 |
Cooling Way |
Built-in air cooling |
Control Interface |
Standard USB |
File Format |
All character styles from character store of OS |

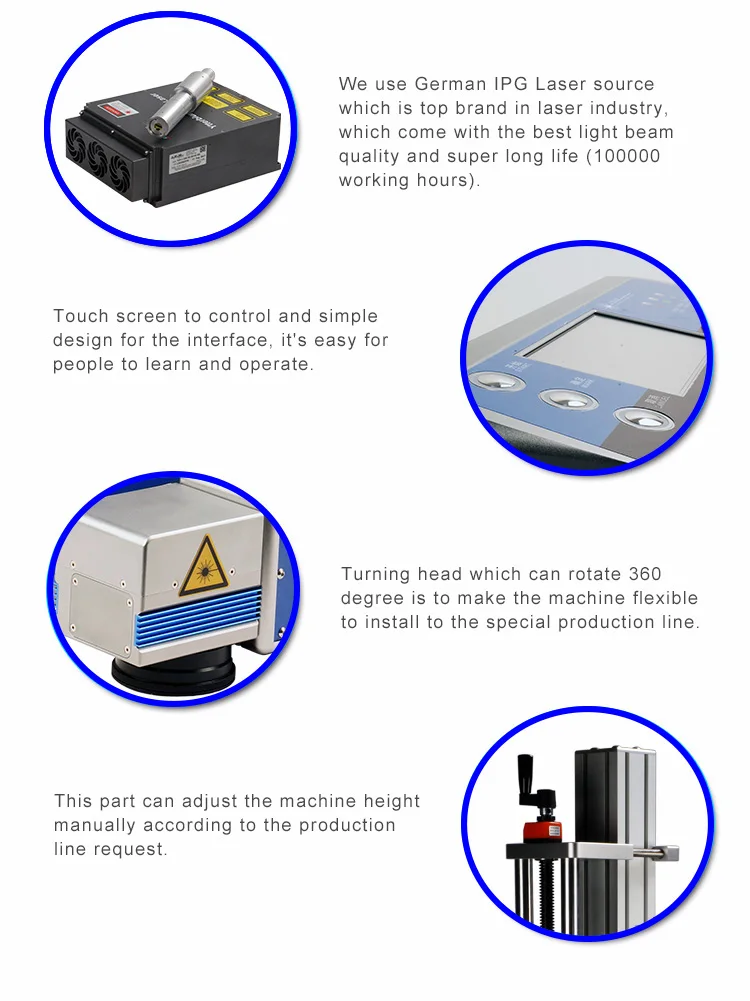

laser marking details show:
What is Features of our laser marking machine
Portable: Integration design causes small volume. Can be easily installed. Air cooling.
High speed scanning galvo mirror: Providing high speed precise marking/engraving.
Various field lens for different marking size: F=100mm/160mm/254mm/300mm/420mm.
Red dot pointer: To indicate the laser beam position.
Up & down worktable: Easy to adjust focal point.
Powerful software: Can be used in many applications like serial number marking, data marking, text/logo/graphic marking, barcode, 2d code etc.
Support files in many format: PLT, PCX, AI, DXF, BMP, JPG etc.
Various add-ons for different application like rotary marking on cylinder items. Automatically marking on production line, filling line etc.
Fiber laser: TEM00 very good quality laser beam.

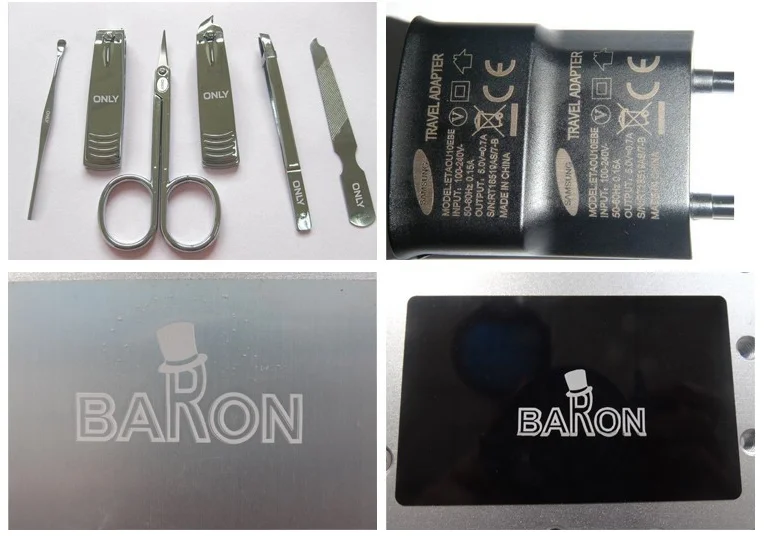

Samples:
