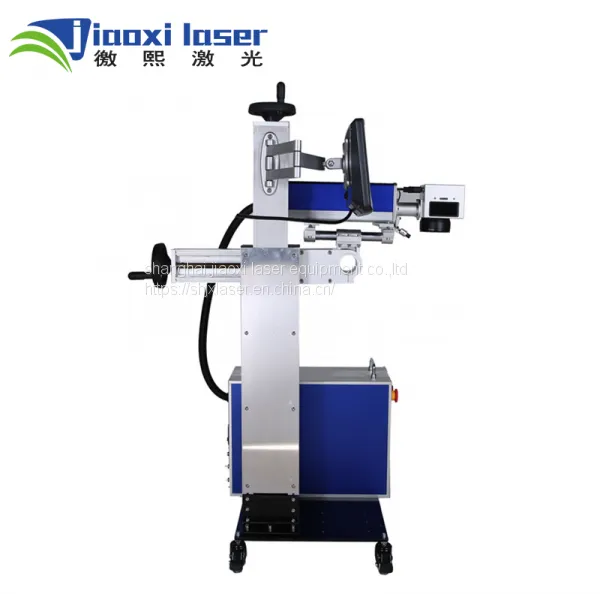

20w Flying Fiber Laser Marking Machine for Production Line Plastic Metal

20w Flying Fiber Laser Marking Machine for Production Line Plastic Metal photo-1

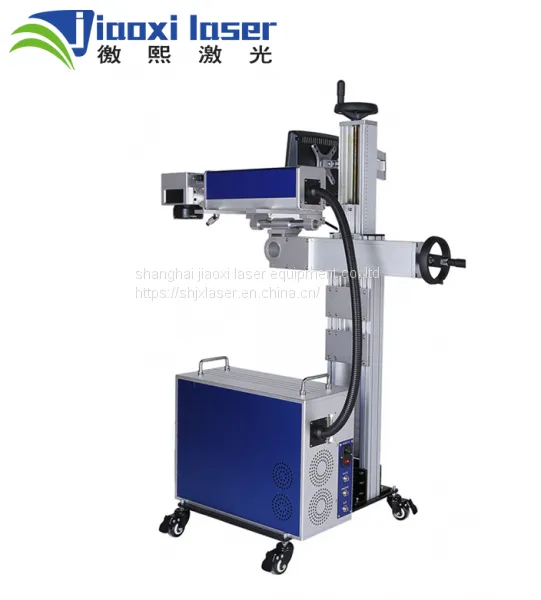

20w Flying Fiber Laser Marking Machine for Production Line Plastic Metal photo-2

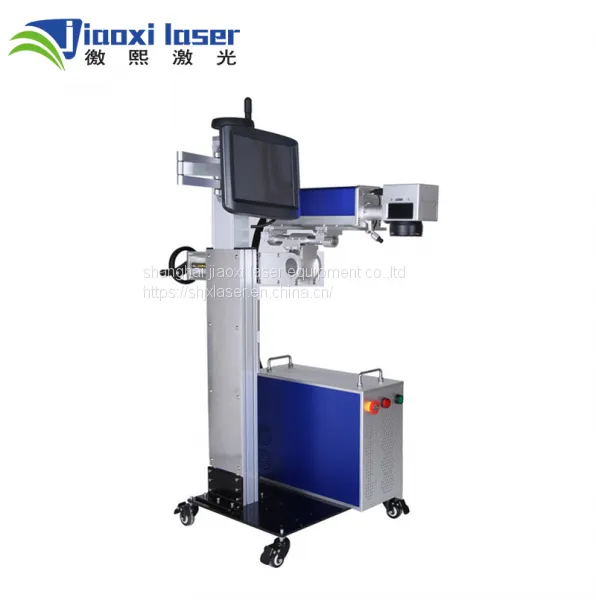

20w Flying Fiber Laser Marking Machine for Production Line Plastic Metal photo-3
US$ 2500 - 5000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Jiaoxi
Place of Origin:
China
Model Number:
JX-FLY-Y20
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai port
Delivery Detail:
3 days
Brand Name Jiaoxi
Place of Origin China
Model Number JX-FLY-Y20
Certification CE, ISO, SGS
After-sales Service Provided Engineers available to service machinery overseas
Condition New
Power(W) 500W
Graphic Format Supported AI, BMP, DST, DWG, DXF, DXP, PLT
Control Software EZCAD
Cooling Mode Air Cooling
CNC or Not No
Laser Type Fiber Laser
Working Accuracy 0.002mm
Application

What materials flying fiber laser marking machine for production line plastic metal could mark on:

Model
JX-FLY-Y20/30 Fiber laser marking machine
Marking scope
100*100(200*200)mm
Power
20W(Optional 30W/50W)
Laser sources
Fiber module
Laser Head
Sino-Galvo SG7110
Red light dot
From Xi'an
Wave length of laser
1064nm
Minimal character
0.001mm
Marking speed
7000mm/s
Support format
PLT, BMP, DXF, JPG, TIF, AI etc
Power supply
Taiwan MW
Power supply
110V/220V/ 50Hz/2kVA
Process Material
All kinds of metal and part of Non-metal Materials
Cooling ways
Inner Installed-air Cooling
Interface
USB
Warranty
3 years
Main Features of flying fiber laser marking machine for production line plastic metal

1) Genuine EzCad software.

2) Raycus Fiber laser source offer 3 years Warranty.

3)High quality laser beam. The diameter of  focal spot not over 20μm.

4)High speed marking. Special laser head for High-speed scanning.

5)Low consumption.

6)Long lifetime without maintenance. More than 100000 working life.

7)Small size suit for harsh working environment.

8)Fast processing speed. High precision.

Detailed Images

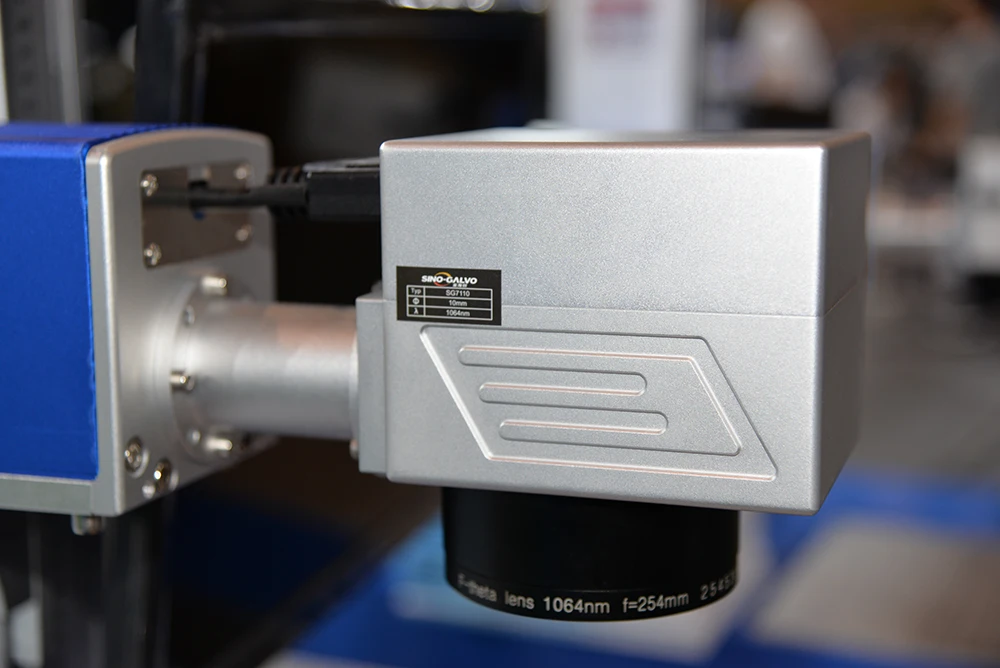

Sino-Galvo scanner head, model SG7110 galvo scanner has the good running stability, high positioning accuracy, fast marking speed, strong anti-interference ability, the overall performance of JD1403 has reached the international leading level in this field.

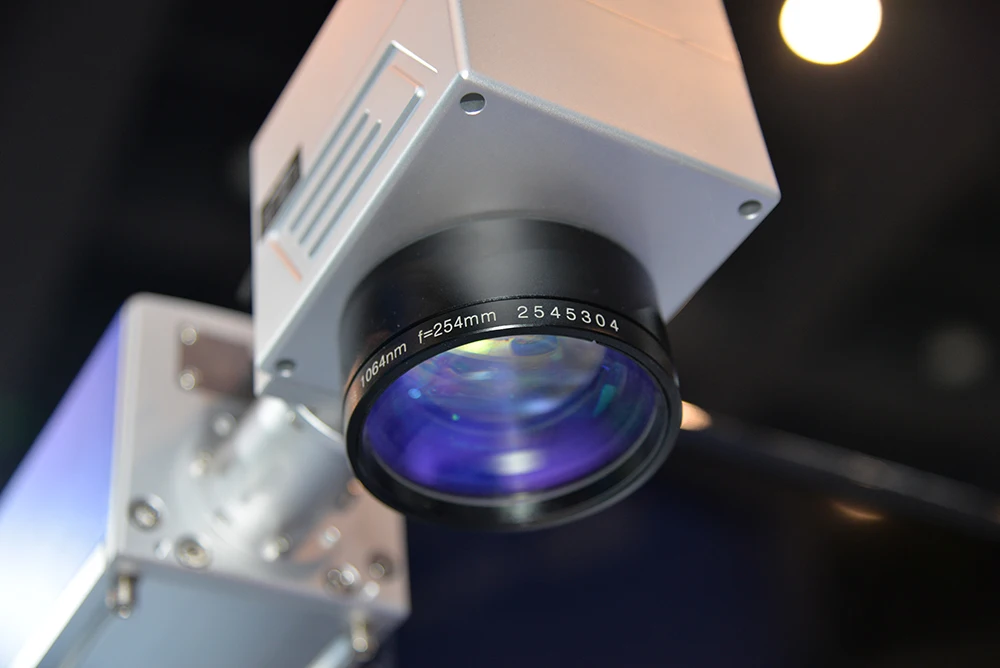

Lens from Singapore,1064nm f=254mm, highest light transmission make sure no power reduction

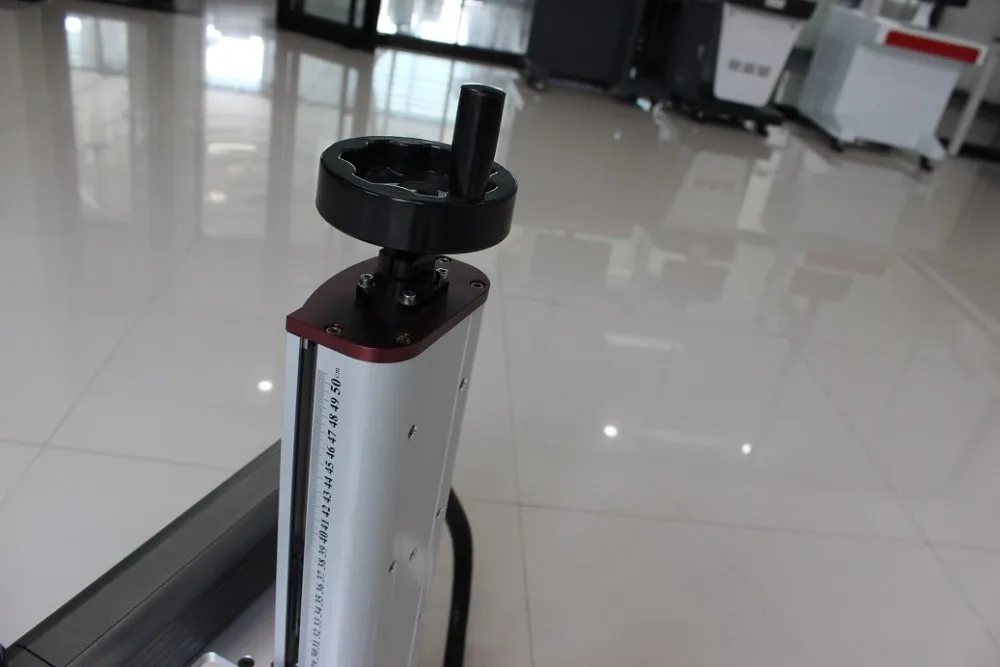

Up-down controller and clear Ruler,easy to adjust the up-down system to find correct focus distance .

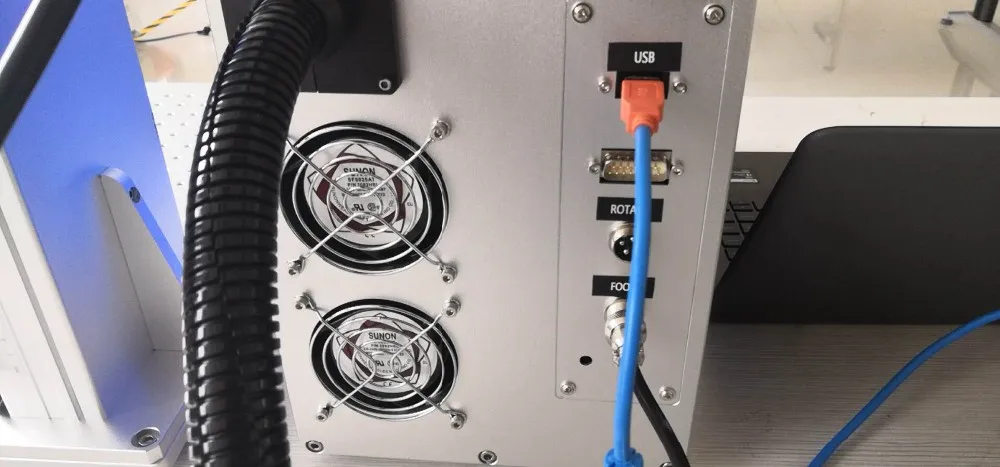

Fans

Cool down machine to protect it and make sure long time working

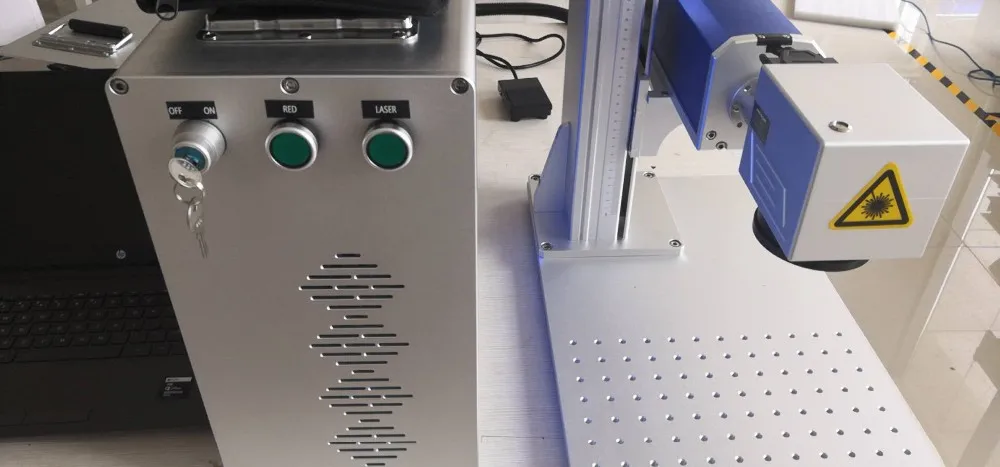

Switch and Key

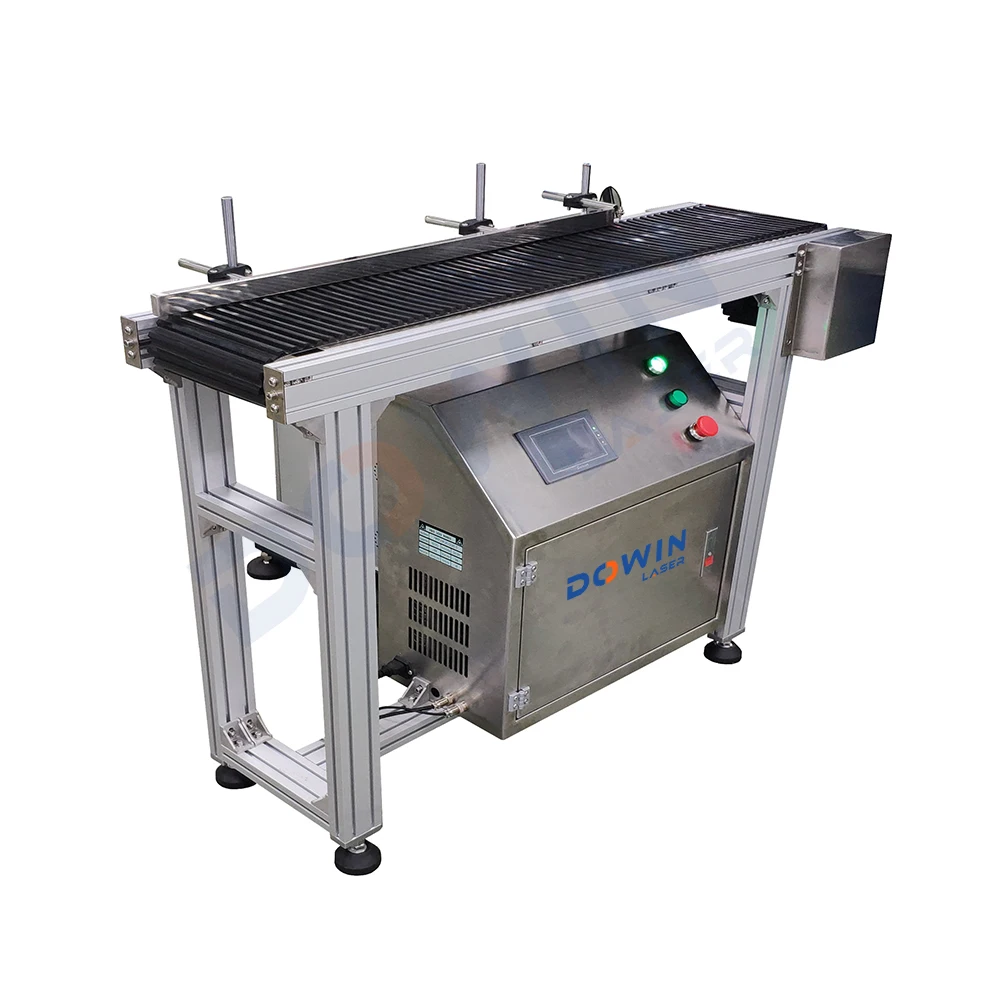

tell us your requirement, we offer customized Fiber laser marking machine conveyor belt for high-efficiency mass production

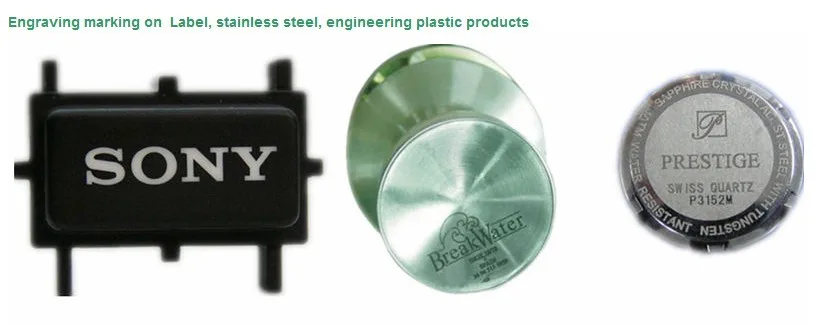

Samples
Company information
About us.

Shanghai Jiaoxi Laser Equipment Co.,Ltd is a professional manufacturer of  Laser Marking Machine ,Laser Cutting Machine and CNC ROUTER ,Located in Shanghai

Baoshan industrial zone,it has a modern R & D center and manufacturing plant,since it was established ,it has continued to train and recruit talents through cooperation with colleges and brought a large number of enterprising and leading elites of the industry

 Our company mainly products including laser marking machine ,CO2 laser cutting machine and cnc router etc , widely used in metal and non-metal field ,for example hardware ,integrated circuit chips ,

industrial bearings ,variety of auto parts ,hardware tools ,wire and cable ,mould,garment leather and craft gifts etc .in line with our advanced philosophy ,excellent products ,down to earth service,along with our strong R&D and production  capacity ,wide social cooperation as well as efforts of our every employee,some machines are exported to the Europe, America, Singapore, Vietnam, India and  Bangladesh etc .

Manufacturer the world first-class laser equipments is the enternal pursuit of  jiaoxi laser

FAQ

Q1: How can I get the best desktop portable 3D metal laser engraving machine Fiber laser marking machine for me?

You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience.

Q2: This is the first time I use this kind of machine, is it easy to operate?

We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online help software.Or we can talk by phone, email or other contact ways.

Q3: This model is not suitable for me, do you have more models available?

Yes, we can supply many models . (20*30cm,30*40cm,40*60cm,60*90cm,90*130cm,130*250cm) , and laser wattage (ranging from 40 watts to 300 watts) If you'd like help determining which laser is right for your application or receive pricing information.

Q4:What's the guarantee, in case the machine breaks down?

The machine has one year guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client s feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.

Q5:How about the documents after shipment? And how long is the delivery time?

After shipment, we'll send all original documents to you by email or by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients. For standard machines, it would be 5-10days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.

Q6:How's the payment?

Telegraphic Transfer(T/T) to our official company bank account or Western Union(WU) or via alibaba trade insurance order payment

Q7:Do You Arrange Shipment For The Machines?

Yes, For EXW price, It is costly to pick up machine from our factory ,we could send machines to any Chinese sea port warehouse by add some domestic shipping cost.

For FOB or CIF price, we will arrange shipment for you.

Q8:If the machine has problem in my place, how could I do?

We could send free parts to you in warranty period if machines have any problem under "normal use".
