High Precision Marine Echo Sounder HD-MAX Full Digital Echo Sounder for sale
Product Description

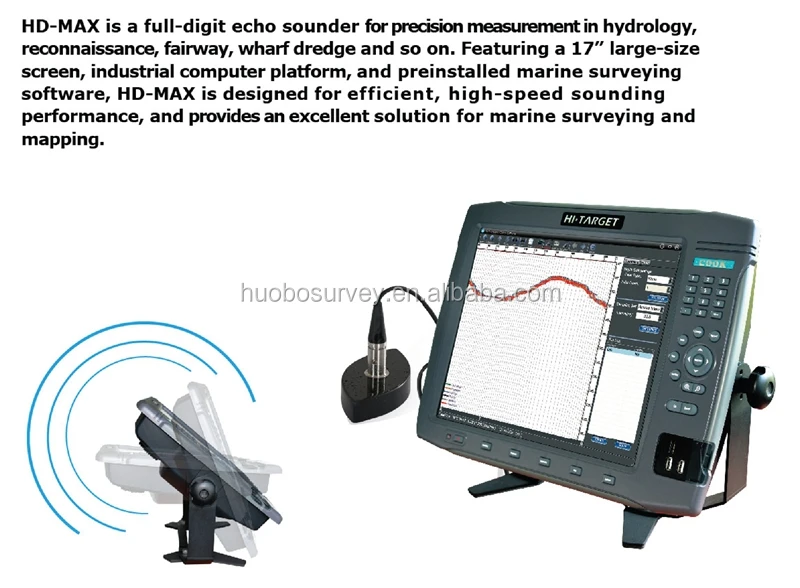

HD-MAX is a full-digit echo sounder for precision measurement in hydrology, reconnaissance, fairway, wharf dredge and so on. Featuring a 17'' large-size screen, industrial computer platform, and preinstalled marine surveying software, HD-MAX is designed for efficient, high-speed sounding performance, and provides an excellent solution for marine surveying and mapping.
Performance Advantages
Fully digital design, easy recording of analog signals and water depth data for easy playback of water depth data.
High SNR sonar processing circuit for deep and complex water measurement.

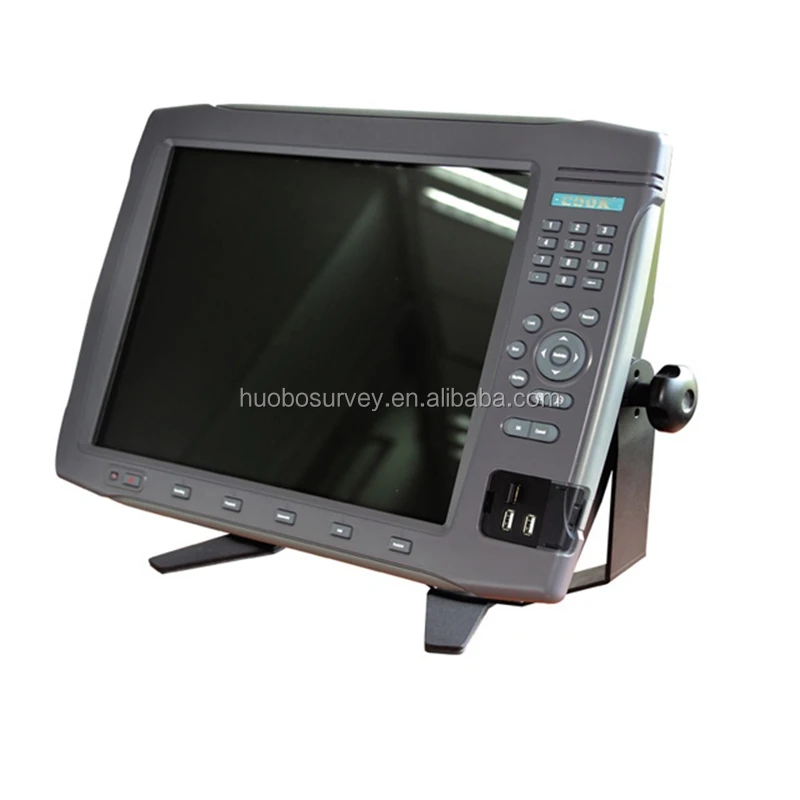

17" large screen, ultra high pixel design

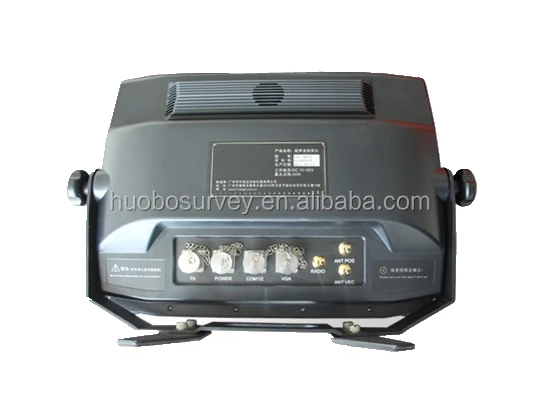

It can be connected to different sensor devices, provide VGA interface, support multi-terminal display.
Optional different positioning accuracy modules, can support pseudo-range differential and Beidou RTK differential module, strong scalability.
Built-in new HiMAX navigation, acquisition, post-processing software, support analog signal digital signal superposition, arbitrary point output, multi-tidal correction, different data format output.

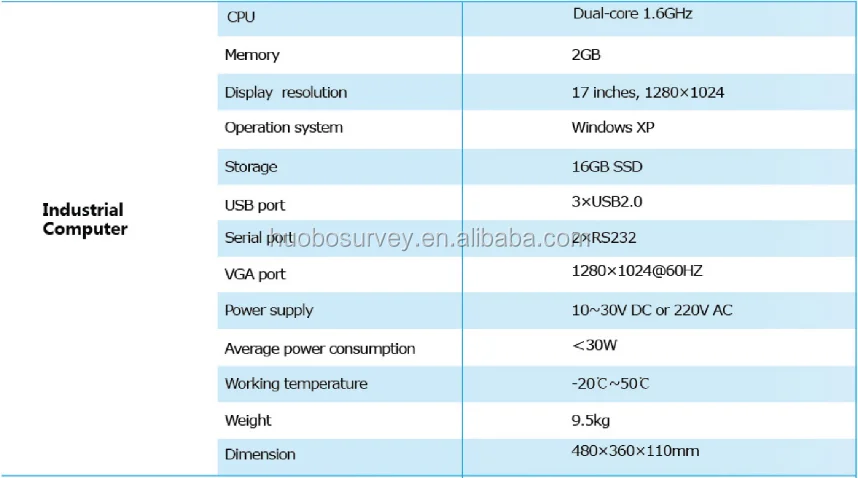

Hardware Parameters
Friendly Design
Multipe shortcut buttons ensure convenient field operation
Supports multi-screen display with VGA

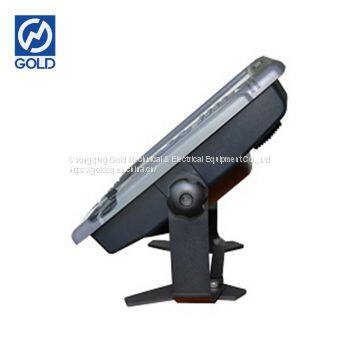

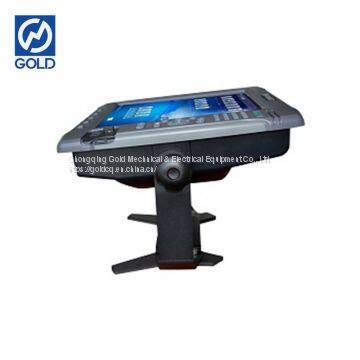

Adjustable screen display angle
Optimized Sounding Technology
Advanced signal tracking gate technology
Sampling rate up to 30Hz
Optimized TVG curve delivers improved sounding performance
Upgrading data processing framework to adapts to a more complex terrain environment
Easy to record and replay analog signals and water depth information
Industrial Computer Platform
17” large-size screen
16GB SSD and one-key reset function
Waterproof, sturdy and durable with high strength polyethylene plastic shell
Compatibility and Development
Supports other devices such as GNSS receivers, attitude indicators, sound velocimetersand electric gyrocompasses and so on
Optional built-in beacon module with precision up to 0.5 meters
Data Compatibility and Security
Supports NMEA-0183 data
Supports multi sensor data input, such as attitude indicator, sound velocimeter and electric gyrocompass
Supports transmitting water depth data to3rd-party software such as HyPack
Encypts original echo data to prevent malicious tampering
Powerful Edit Function
Supports manual operation and software calculations to modify GPS delay
Users can manually input, output or edit plan line and mark(point, line and surface)
Supports import and export of DXF format plan line and background image
Friendly Post-processing Function
Corrects false echo signal by comparing echo graph with data curve of water depth
Manually add depth sampling point to meet the demands of special feature point extraction
Supports single tidal station, dual tidal station and triple tidal station corrections

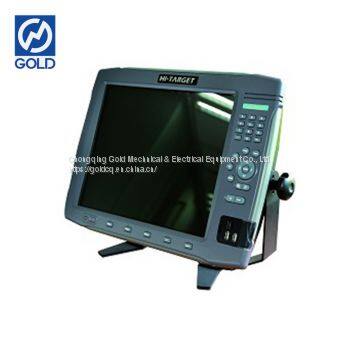

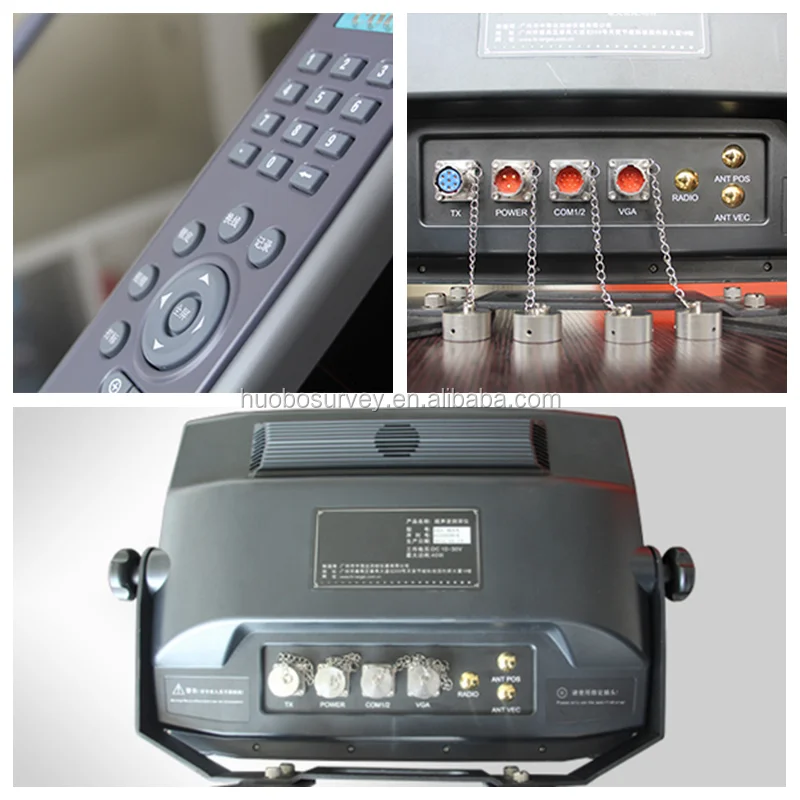

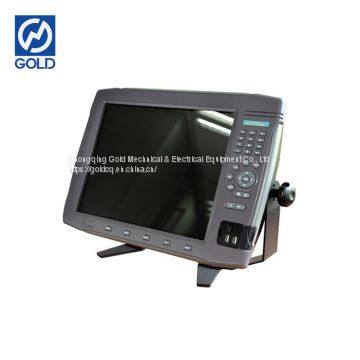

Product Images
