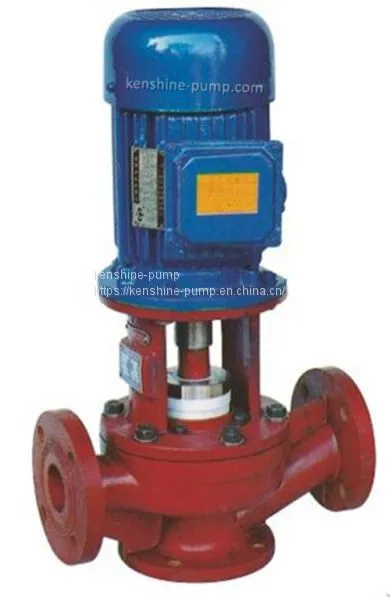

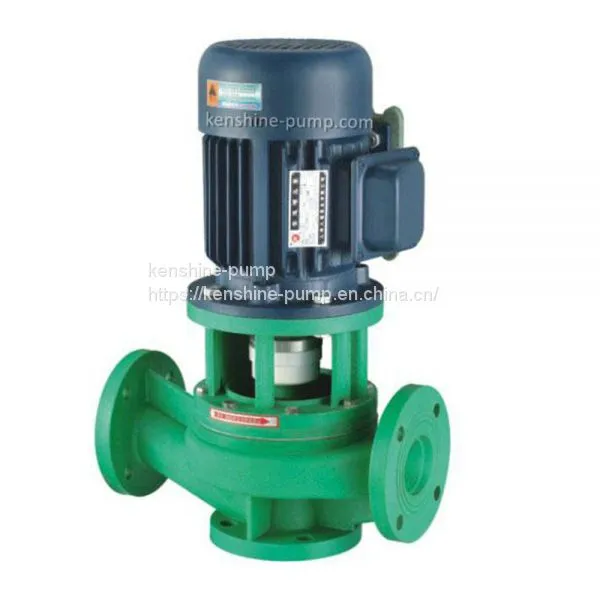

HCLF Vertical Fluorine Plastic Lining Magnetic Pump Inline Pump

HCLF Vertical Fluorine Plastic Lining Magnetic Pump Inline Pump thumbnail-1
HCLF Vertical Fluorine Plastic Lining Magnetic Pump Inline Pump thumbnail-2
HCLF Vertical Fluorine Plastic Lining Magnetic Pump Inline Pump thumbnail-3
HCLF Vertical Fluorine Plastic Lining Magnetic Pump Inline Pump thumbnail-4
HCLF Vertical Fluorine Plastic Lining Magnetic Pump Inline Pump thumbnail-5
HCLF Vertical Fluorine Plastic Lining Magnetic Pump Inline Pump photo-1
HCLF Vertical Fluorine Plastic Lining Magnetic Pump Inline Pump photo-2
HCLF Vertical Fluorine Plastic Lining Magnetic Pump Inline Pump photo-3
HCLF Vertical Fluorine Plastic Lining Magnetic Pump Inline Pump photo-4
HCLF Vertical Fluorine Plastic Lining Magnetic Pump Inline Pump photo-5
US$ 600 - 6000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
kenshine-pump
Place of Origin:
China
Model Number:
HCLF80-125
Contact Supplier Request Quote Chat Now
Kenshine-pump
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name kenshine-pump
Place of Origin China
Model Number HCLF80-125
Application Other, Chemical liquid transfer
Fuel Other, electric motor
Power Electric
Usage Other, chemical fluid transfer
Theory Centrifugal Pump
Standard or Nonstandard Standard
Structure Single-stage Pump
Pressure Low Pressure

HCLF vertical Fluorine plastic lining magnetic pump has the features of pipeline pump and magnetic pump. The flow parts are fluorine plastic (PTFE,PFA,FEP). The pump has the advantages of no leakage, good corrosion resistance and small volume, high efficiency etc.

HCLF Vertical fluorine plastic lining magnetic pump is suitable to transfer flammable, explosive, volatile, toxic, high temperature alkali, organic fluxing agent and corrosive liquids in petroleum, chemical industry, alkali product, smelting, rare earth,pesticides,dyes,medicine,papermaking,electroplating,electrolysis,defense industry etc



Model Speed Flow Head Efficiency NPSH Inlet/outlet Motor power Weight
r/min m3/h m ％ m mm kw kg
HCLF25-125 2900 1.5 22 18 2.5 25×20 1.1 27
2 20 20 2.5
3.2 18.5 24 3
HCLF25-160 2900 1.5 34.3 19 2.5 25×20 1.5 36
2 32 22 2.5
3.2 29.6 25 3
HCLF25-200 2900 1.5 52.5 18 2.5 25×20 3 51
2 50 20 2.5
3.2 48 22 3
HCLF25-250 2900 1.5 82 12 2.5 25×20 7.5 63
2 80 18 2.5
3.2 78.5 26 3
HCLF32-125 2900 2 22 20.5 2.5 32×20 1.5 30
3.2 20 20 2.5
5.5 18.5 18 3
HCLF32-160 2900 2 34.3 20.5 2.5 32×20 2.2 35
3.2 32 20 2.5
5.5 29.6 18 3
HCLF32-200 2900 2 52.5 32 2.5 32×20 4 61
3.2 50 36 2.5
5.5 48 34 3
HCLF32-250 2900 2 82 26 2.5 32×20 7.5 75
3.2 80 30 2.5
5.5 78.5 28 3
HCLF40-125 2900 4.4 22 16 2.5 40×25 1.5 35
6.3 20 20 2.5
8.3 18.5 23 3
HCLF40-160 2900 4.4 34.3 30 2.5 40×25 3 40
6.3 32 31 2.5
8.3 29.6 32 3
HCLF40-200 2900 4.4 52.5 26 2.5 40×25 5.5 66
6.3 50 33 2.5
8.3 48 32 3
HCLF40-250 2900 4.4 82 24 2.5 40×25 11 95
6.3 80 28 2.5
8.3 78.5 28 3
HCLF50-125 2900 7.5 22 43 2 50×32 2.2 44
12.5 20 51 2
15 18.5 49 2.5
HCLF50-160 2900 7.5 34.3 35 2 50×32 3 61
12.5 32 47 2
15 29.6 47 2.5
HCLF50-200 2900 7.5 52.5 28 2 50×32 7.5 113
12.5 50 40 2
15 48 48 2.5
HCLF50-250 2900 7.5 82 23 2 50×32 11 180
12.5 80 33 2
15 78.5 36.5 2.5
HCLF65-125 2900 15 21.8 46 2 65×50 3 80
25 20 56 2
30 18.5 65 2.5
HCLF65-160 2900 15 35 46 2 65×50 5.5 97
25 32 56 2
30 30 65 2.5
HCLF65-200 2900 15 53 34 2 65×40 11 120
25 50 46 2
30 47 50 2.5
HCLF65-250 2900 15 82 33 2 65×40 18.5 203
25 80 48 2
30 78 50 2.5
HCLF65-315 2900 15 127 28 2.5 65×40 30 345
25 125 39 2.5
30 123 42.5 3
HCLF80-125 2900 30 22.5 52 3 80×65 5.5 125
50 20 65 3
60 18 70 3.5
