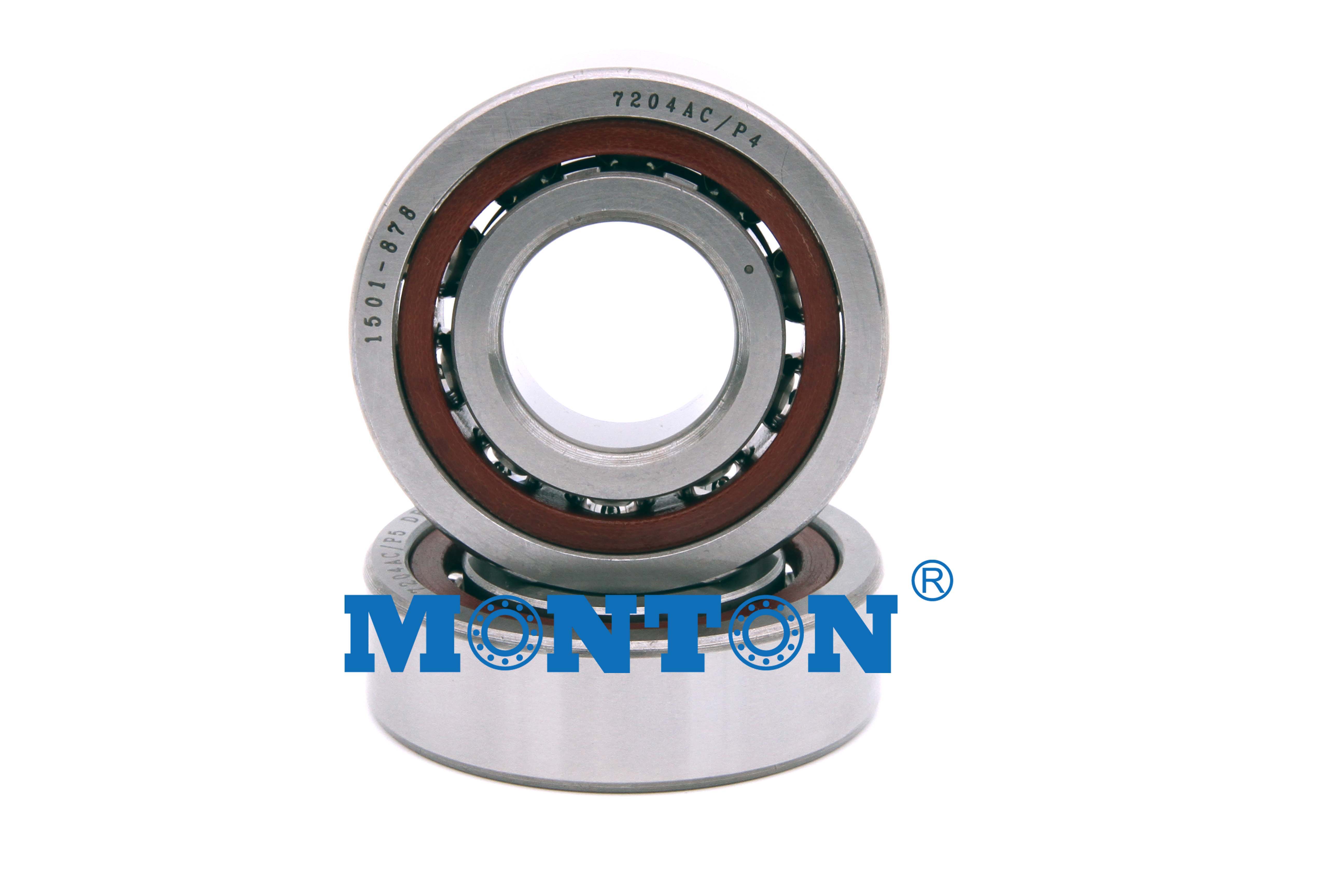

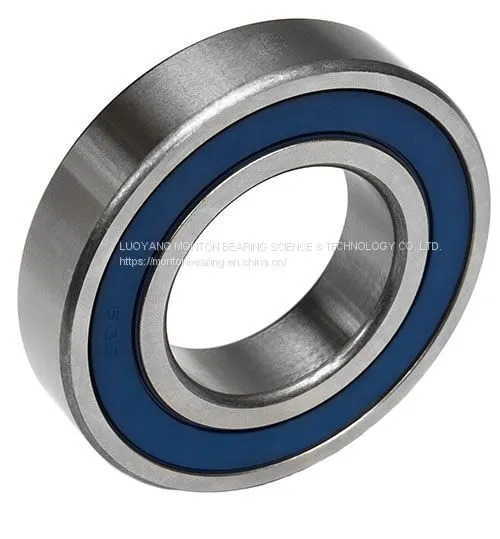

7005CTYNSULP4 Angular Contact Ball Bearing
25mm X 47mm X 12mm bearing for machine tool spindle
Super Precision Angular Contact bearings are designed for rigid, high speed, high tolerance applications. Spindle bearings used in pairs in a 'back to back' or 'face to face' arrangemet can support axial forces on both directions and moments. Bearings in a tandem arrangement can only support axial loads in one direction. Spindle bearings are available with a 15 degree or 25 degreee contact angle. Various cage options are available as well as the use of ceramic balls which allow for higher speed, lower friction and heat generation and a longer operating life. Available bore dimension range 10mm to 240mm. Super Precision also available in Radial Ball Bearings.
Measurements
Inner Diameter: 25
Outer Diameter: 47
Thickness: 12
Measurement Unit: Metric
Materials
Bearing Type: Radial Bearing
Product Seal: No Seal (N)
Ball Material: Chrome Steel
Retainer Material: Metal or High Speed Plastic
Technical Specifications
Quantity: 1
Condition: New Inventory From Factory.
Quality Level ABEC 3 or Better
Operating Temperature: Sealed or Metal Shields Ranges: –20 °F to +230°F [–30 °C to +110°C]. The determining factor will be the lube and the seal material.
Raceways: Finely polished superior finish for long life, and low noise.
Lubrication Wide temperature range (-50F to + 300F) High Quality Synthetic Lubricant.
| Bearing name | 7005C bearing | ||
|---|---|---|---|
| Classification | Angular Contact Ball Bearings | Brand | MONTON |
| New models | 7005C | Old Models | 36105 bearing |
| Inner diameter d | 25 | Outer diameter D | 47 |
| Thickness B(mm) | 12 | Reference Model | |
| Rated speed | Limiting speed | ||
| Static Load | Dynamic load | ||
