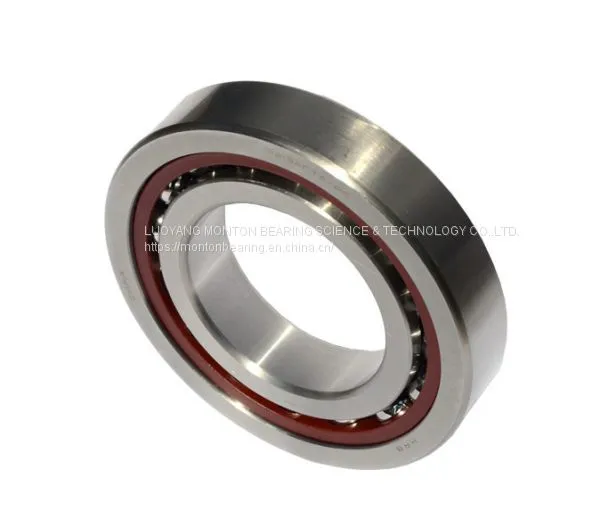

7016 7016C 7016CTYNSULP4 80x125x22 ABEC-7
Angular Contact Ball Bearing CNC Universal Arrangement Metric
Angular contact ball bearings are able to support radial load and axial load. As single row angular contact ball bearings can only support axial load in single direction, it often adopts mounting in pair. As matched pairs of bearings, preload for them is more convenient. Retainer are made of brass, synthetic resins or others subject to individual bearing feature and application conditions.
The raceways of angular contact ball bearing in the inner and outer rings can have relative displacement on the horizontal axis. Therefore, this design can make it withstand combined loads, namely, supporting radial and axial loads simultaneously. The axial load capacity of angular contact ball bearing improves with the increasing contact angle.
7016CTYNSULP4 SUPER PRECISION ANGULAR CONTACT SPINDLE BEARINGS
Brand : Monton
Type :Angular Contact Ball Bearings
Contact angle C: 15 Degree
Cage material TYN: Ball guided polyamide Resin
Rings material Bearing steel (SUJ2)
Rolling elements material Bearing steel (SUJ2)
Arrangement SU: universal Single row for matched set
Accuracy rating P4: ISO Class 4 (ABEC – 7)
Limiting speeds Grease: 21,300 rpm Oil: 32,500 rpm
Dynamic load rating 21.6 KN
Static load rating 17KN
Axial load rating 15KN
Dimensions 80mm x 125mm x 22mm
Quantity Two bearings
Made in China
THIS MATCHED SET OF TWO NSK 7016CTYNSULP4:
REPLACES THE FOLLOWING
NSK 7016CTYNDBLP4 NSK 7016CTRDULP4Y NSK 7016CTRDULP4
NACHI 7016CYDUP4 NACHI 7016CYDU/GLP4
FAG 7016CT P4S DUL
SKF 7016CD/P4A SKF 7016CD/P4A DBA
RHP 7016CTDULP4
| Commodity name | super precision bearing angular contact ball bearing |
| Bearing model | 7016CTYNSULP4 7016CTYNDBLP5 7016CTYNDULP4 |
| Bearing specification | 80*125*22mm bearing |
| Weight /KG | 0.5 KG |
| Greese/Oil | As you requirement ,such as SRL,PS2,Alvania R12 and so on |
| Bearing Series | 70xx,72xx,718XX,719xx |
| Ring Materical | Chrome Steel,Carbon steel, Stainless steel |
| Tolerance grade | GB/T307.1-205 |
| ID Size | 10mm-280mm |
| Quality standard | NSK precision bearing passed ISO 9001:2008 standard |
| Bearing Precision | P0,P6,P5 ,P4 |
| Steel pressed cage | Bending claw form or rivet form |
| Delivert Date | Normally ready goods and stock within 7 days |
| Payment Terms | A:30% T/T In Advance,70% Against Copy Of B/L B: 100% L/C At Sight C: Paypal D: Western Union |
| Application | Home appliances, low noise and high speed electric motors,automotive components,pumps,machinery. |
| Bearing Service | precision bearing can offer OEM service |
| Package | Single box or according to buyers requirement |
Angular Contact Ball Bearing Specification:
| Seals Types | 2RS,OPEN |
| Vibration Level | Z1V1,Z2V2,Z3V3 |
| Clearance | C2,C0,C3,C4,C5 |
| Tolerance Codes | ABEC-1,ABEC-3,ABEC-5 |
| Materral | GCr15-China/AISI52100-USA/Din100Cr6-Germany |
| MOQ | 1Set at least |
| Delivery Time | 15-45 days after contract |
| Payment Terms | TT/PAPAL/WESTERN UNION |
| Pavkage | Tube package+outer carton+pallets;Single box+outer carton+pallets;Tube pavkge+middle box+outer carton+pallets;According to your requirement |
N1007BTBKRCC1P4 NN4920MBKRCC1P4 NNU4920MBKRCC1P4
N1008BTRKRCC1P4 NN4921MBKRCC1P4 NNU4921MBKRCC1P4
N1009BTTKRCC1P4 NN4922MBKRCC1P4 NNU4922MBKRCC1P4
N1010BTRKRCC1P4 NN4924MBKRCC1P4 NNU4924MBKRCC1P4
N1011BTRKRCC1P4 NN4926MBKRCC1P4 NNU4926MBKRCC1P4
N1012BTRKRCC1P4 NN4928MBKRCC1P4 NNU4928MBKRCC1P4
N1015BTRKRCC1P4 NN4930MBKRCC1P4 NNU4930MBKRCC1P4
N1014BTRKRCC1P4 NN4932MBKRCC1P4 NNU4932MBKRCC1P4
N1015BTRKRCC1P4 NN4934MBKRCC1P4 NNU4934MBKRCC1P4
N1016BTRKRCC1P4 NN4936MBKRCC1P4 NNU4936MBKRCC1P4
N1017BTRKRCC1P4 NN4938MBKRCC1P4 NNU4938MBKRCC1P4
N1018BTRKRCC1P4 NN4940MBKRCC1P4 NNU4940MBKRCC1P4
N1019BMRKRCC1P4 NN4944MBKRCC1P4 NNU4944MBKRCC1P4
N1020BMRKRCC1P4 NN4948MBKRCC1P4 NNU4948MBKRCC1P4
N1022BMRKRCC1P4 NN4952MBKRCC1P4 NNU4952MBKRCC1P4
N1024BMRKRCC1P4 NN4956MBKRCC1P4 NNU4956MBKRCC1P4
N1026BMRKRCC1P4
N1028BMRKRCC1P4
NN3007TBKRCC1P4 NN3920MBKRCC1P4 NNU3920MBKRCC1P4
NN3008TBKRCC1P4 NN3922MBKRCC1P4 NNU3922MBKRCC1P4
NN3009TBKRCC1P4 NN3924MBKRCC1P4 NNU3924MBKRCC1P4
NN3010TBKRCC1P4 NN3926MBKRCC1P4 NNU3926MBKRCC1P4
NN3011TBKRCC1P4 NN3928MBKRCC1P4 NNU3928MBKRCC1P4
NN3012TBKRCC1P4 NN3930MBKRCC1P4 NNU3930MBKRCC1P4
NN3013TBKRCC1P4 NN3932MBKRCC1P4 NNU3932MBKRCC1P4
NN3014TBKRCC1P4 NN3934MBKRCC1P4 NNU3934MBKRCC1P4
NN3015TBKRCC1P4 NN3936MBKRCC1P4 NNU3936MBKRCC1P4
NN3016TBKRCC1P4 NN3938MBKRCC1P4 NNU3938MBKRCC1P4
NN3017TBKRCC1P4 NN3940MBKRCC1P4 NNU3940MBKRCC1P4
NN3018TBKRCC1P4 NN3944MBKRCC1P4 NNU3944MBKRCC1P4
NN3019TBKRCC1P4 NN3948MBKRCC1P4 NNU3948MBKRCC1P4
NN3020MBKRCC1P4 NN3952MBKRCC1P4 NNU3952MBKRCC1P4
NN3022MBKRCC1P4
NN3024MBKRCC1P4
NN3026MBKRCC1P4
NN3028MBKRC C1P4
NN3030MBKRCC1P4
NN3032MBKRCC1P4
NN3034MBKRCC1P4
NN3036MBKRCC1P4
NN3038M BKRCC1P4
NN3040MBKRCC1P4
NN3044MBKRCC1P4
NN3048MBKRCC1P4
NN3052MBKRCC1P4
NN3 056MBKRCC1P4
NN3060MBKRCC1P4
7001A5TYNSULP4 7200CTYNSULP4 7200A5TYNSULP4
7002A5TYNSULP4 7201CTYNSULP4 7201A5TYNSULP4
7003A5TYNSULP4 7202CTYNSULP4 7202A5TYNSULP4
7004A5TYNSULP4 7203CTYNSULP4 7203A5TYNSULP4
7005A5TYNSULP4 7204CTYNSULP4 7204A5TYNSULP4
7006A5TYNSULP4 7205CTYNSULP4 7205A5TYNSULP4
7007A5TYNSULP4 7206CTYNSULP4 7206A5TYNSULP4
7008A5TYNSULP4 7207CTYNSULP4 7207A5TYNSULP4
7009A5TYNSULP4 7208CTYNSULP4 7208A5TYNSULP4
7010A5TYNSULP4 7209CTYNSULP4 7209A5TYNSULP4
7011A5TYNSULP4 7210CTYNSULP4 7210A5TYNSULP4
7012A5TYNSULP4 7211CTYNSULP4 7211A5TYNSULP4
7013A5TYNSULP4 7212CTYNSULP4 7212A5TYNSULP4
7014A5TYNSULP4 7213CTYNSULP4 7213A5TYNSULP4
7015A5TYNSULP4 7214CTYNSULP4 7214A5TYNSULP4
7016A5TYNSULP4 7215CTYNSULP4 7215A5TYNSULP4
7017A5TYNSULP4 7216CTYNSULP4 7216A5TYNSULP4
7018A5TYNSULP4 7217CTYNSULP4 7217A5TYNSULP4
7019A5TYNSULP4 7218CTYNSULP4 7218A5TYNSULP4
7020A5TYNSULP4 7219CTYNSULP4 7219A5TYNSULP4
7021A5TYNSULP4 7220CTYNSULP4 7220A5TYNSULP4
7022A5TYNSULP4 7221CTYNSULP4 7221A5TYNSULP4
7024A5TYNSULP4 7222CTYNSULP4 7222A5TYNSULP4
7026A5TYNSULP4 7224CTYNSULP4 7224A5TYNSULP4
7028A5TRSULP4 7226CTYNSULP4 7226A5TYNSULP4
7030A5TRSULP4
7032A5TRSULP4
7034A5TRSULP4
7036A5TRSULP4
7038A 5TRSULP4
7040A5TRSULP4
7901CTYNSULP4 7901A5TYNSULP4 7001CTYNSULP4
7902CTYNSULP4 7902A5TYNSULP4 7002CTYNSULP4
7903CTYNSULP4 7903A5TYNSULP4 7003CTYNSULP4
7904CTYNSULP4 7904A5TYNSULP4 7004CTYNSULP4
7905CTYNSULP4 7905A5TYNSULP4 7005CTYNSULP4
7906CTYNSULP4 7906A5TYNSULP4 7006CTYNSULP4
7907CTYNSULP4 7907A5TYNSULP4 7007CTYNSULP4
7908CTYNSULP4 7908A5TYNSULP4 7008CTYNSULP4
7909CTYNSULP4 7909A5TYNSULP4 7009CTYNSULP4
7910CTYNSULP4 7910A5TYNSULP4 7010CTYNSULP4
7911CTYNSULP4 7911A5TYNSULP4 7011CTYNSULP4
7912CTYNSULP4 7912A5TYNSULP4 7012CTYNSULP4
7913CTYNSULP4 7913A5TYNSULP4 7013CTYNSULP4
7914CTYNSULP4 7914A5TYNSULP4 7014CTYNSULP4
7915CTYNSULP4 7915A5TYNSULP4 7015CTYNSULP4
7916CTYNSULP4 7916A5TYNSULP4 7016CTYNSULP4
7917CTYNSULP4 7917A5TYNSULP4 7017CTYNSULP4
7918CTYNSULP4 7918A5TYNSULP4 7018CTYNSULP4
7919CTYNSULP4 7919A5TYNSULP4 7019CTYNSULP4
7920CTYNSULP4 7920A5TYNSULP4 7020CTYNSULP4
7921CTYNSULP4 7921A5TYNSULP4 7021CTYNSULP4
7922CTYNSULP4 7922A5TYNSULP4 7022CTYNSULP4
7924CTYNSULP4 7924A5TYNSULP4 7024CTYNSULP4
7926CTYNSULP4 7926A5TYNSULP4 7026CTYNSULP4
7928CTRSULP4 7928A5TRSULP4 7028CTRSULP4
7930CTRSULP4 7930A5TRSULP4 7030CTRSULP4
7932CTRSULP4 7932A5TRSULP4 7032CTRSULP4
7934CTRSULP4 7934A5TRSULP4 7034CTRSULP4
7936CTRSULP4 7936A5TRSULP4 7036CTRSULP4
7938CTRSULP4 7938A5TRSULP4 7038CTRSULP4
7940CTRSULP4 7940A5TRSULP4 7040CTRSULP4
7944CTRSULP4 7944A5TRSULP4
7948CTRSULP4 7948A5TRSULP4
