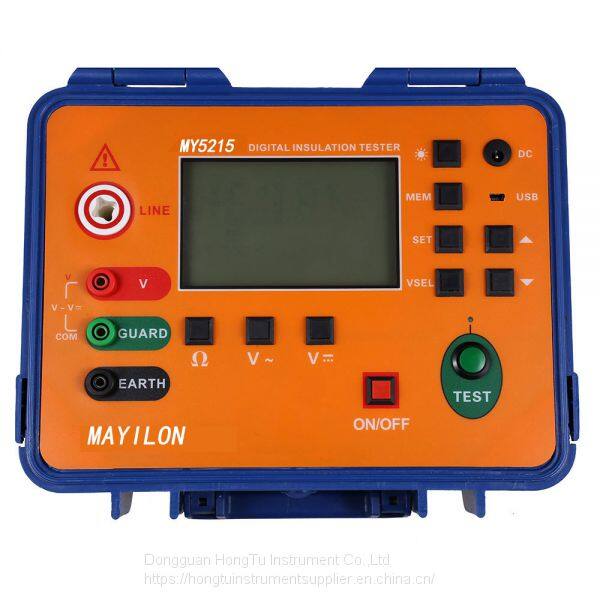

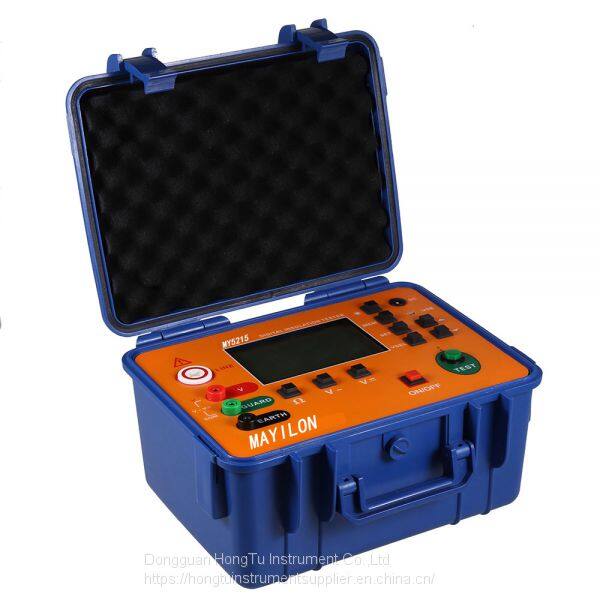

Digital Insulation Resistance Tester
Specification
Function |
Insulation resistance test, voltage test |
Benchmark Condition |
23ºC±5ºC,Under 75%rh |
Rated voltage (V) |
100;250;500;1000;2500;5000V Precision:±3%rdg±5dgt |
Measuring Voltage (V) |
Rated voltage×(1±10%) |
Insulation Resistance range (GΩ) |
0.01MΩ~1000GΩ Precision:±3%rdg±5dgt |
Insulation ResistanceResolution |
0.01MΩ |
DC Voltage Range |
0~1000V |
DC Voltage Resolution |
0.1V |
AC Voltage Range |
0~750V |
AC Voltage Resolution |
0.1V |
Output Short Circuit Current |
≥5mA(5000V) |
Absorption Ratio and Polarization IndexMeasurement |
Yes |
Power Supply |
12V Battery |
Backlight |
Controllable gray and white screen backlight for use in dark places |
Display Mode |
4-bit Large LCD display, Gray Screen Backlight |
LCD Size |
108mm×65mm |
Size |
277.2mm×227.5mm×153mm |

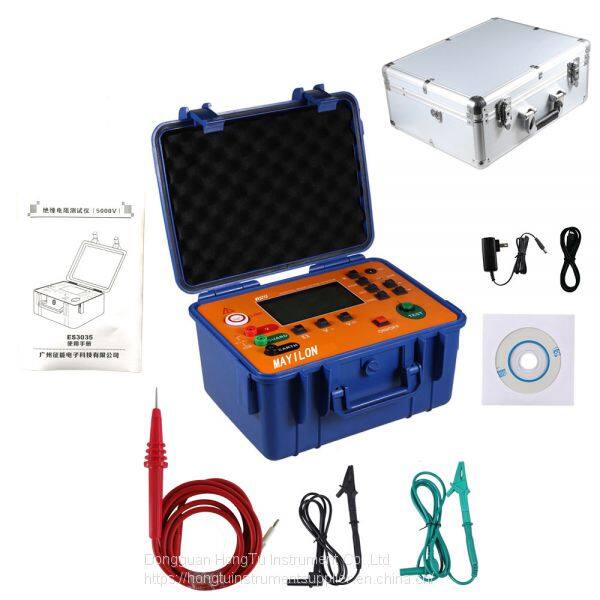

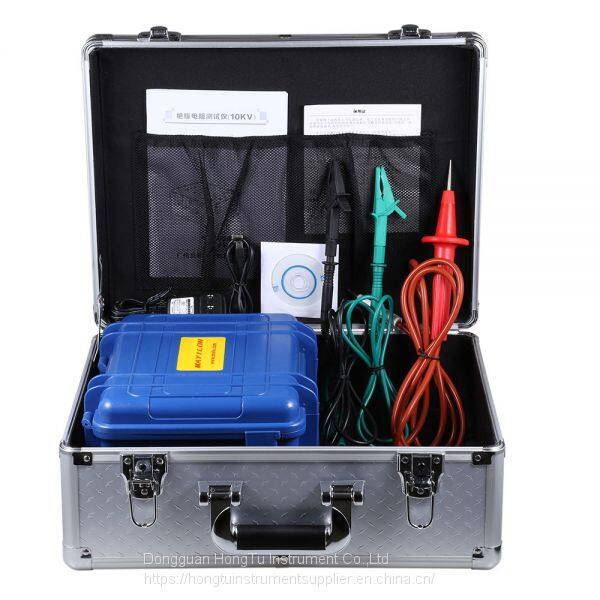

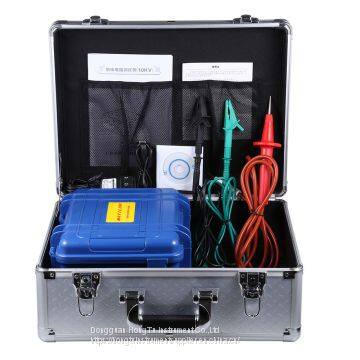

Test Line |
High voltage red 3 meters, high voltage test Blackline 1.5 meters, green line 1.5 meters |
Data Storage |
500Group |
USB |
Yes |
Communication line |
1pcs |
Data review |
READ |
Overflow display |
OL |
Alarm Function |
Yes |
|
Power Consumption
|
Standby: 30mA Max (backlight off) |
Turn on the backlight:42mA Max | |
Measurement:200mA Max | |
Weight |
2720g |
Battery |
Yes |
Automatic Shut-Down |
The instrument has no operation for 15 minutes. |
Insulation Resistance |
≥50MΩ |
Withstand Voltage |
AC3kV/50Hz 1min |
Working Temperature andHumidity |
-10ºC~+50ºC |
Storage Temperature andHumidity |
-15ºC~+55ºC |
Safety Rating |
IEC61010-1,IEC1010-2-31,IEC61557-1,5,IEC60529(IP54),Class of pollution 2,CAT 300V |
