Home > Instruments & Meters > Test Instrument > Test Machine > Hail Impact Testing Machine for PV Module Breakage
US$ 6000 - 10000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HOTOTECH
Place of Origin:
China
Model Number:
HTPV-09
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
60 days
Related Products
-
PV Module Breakage Testing Machine for SolarUS$ 6000 - 10000MOQ: 1 Set -
Mechanical Load Tester for PV ModuleUS$ 6000 - 10000MOQ: 1 Set
-
Ground Resistance Soil Resistivity Meter Simple TesterUS$ 193.35 - 235.69MOQ: 1 Set
-
China Factory Digital Multimeter DC AC Voltage High Percision MultimetroUS$ 15.5 - 16.8MOQ: 80 Sets
-
Hot Sale Mini AC/DC Digital Clamp Meter Test Equipments ClampsUS$ 10 - 10.58MOQ: 80 Sets
Brand Name
HOTOTECH
Place of Origin
China
Model Number
HTPV-09
Power
Electronic
Usage
Drop Tester

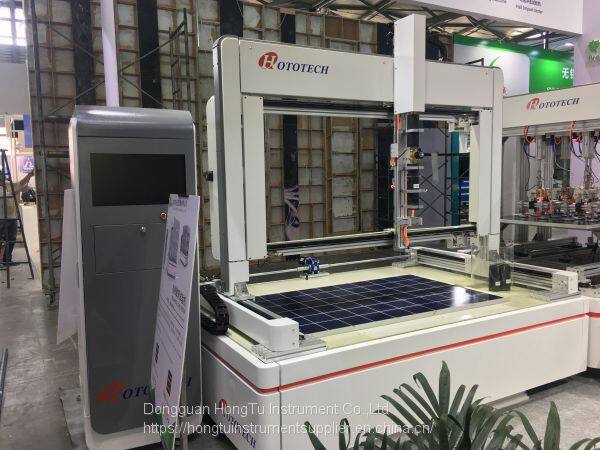

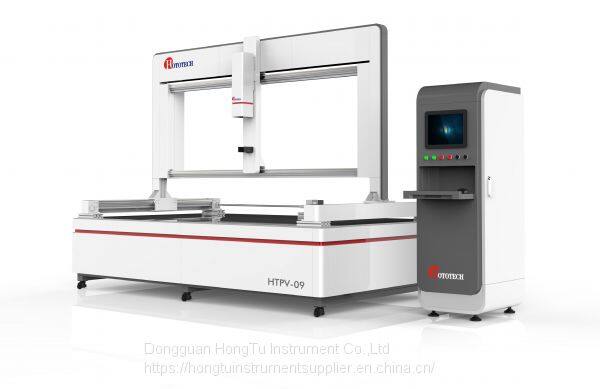

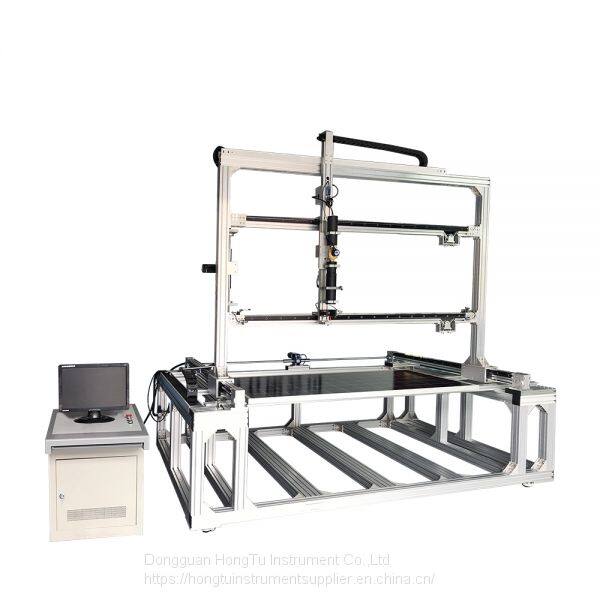

Hail Impact Testing Machine for PV Module Breakage
Standard:According to IEC61215,IEC61646,UL1703 standard requirement | |||||||||||
Purpose:To verify that the module is capable of with standard requirement | |||||||||||
| Technical specifications: | |||||||||||

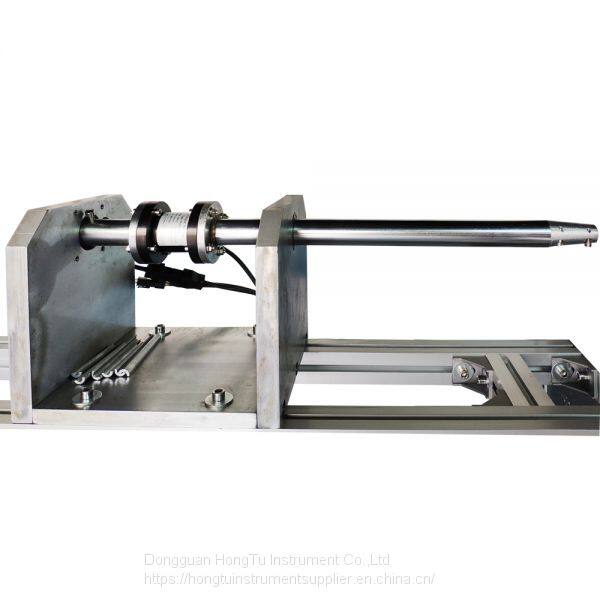

| 1.Launch device | |||||||||||
| a.Power source is air compressor | |||||||||||
| b.Air pressure:6-8bar | |||||||||||
| c.Ice ball single filled by manual | |||||||||||
| d.The barrel can change | |||||||||||
| e.The barrel can change | |||||||||||
| 2.Moving locating device | |||||||||||
| a.X shaft move distance approx.2100mm | |||||||||||
| b.Y shaft move distance approx.1000mm | |||||||||||
| c.Locating accurate:≤1mm | |||||||||||
| d.Impact area:2000*1000mm | |||||||||||
| e.Guide ways is high quality import guide rail | |||||||||||
| f.Driving ways adopt import servo motor+synchronous wheel | |||||||||||
| g.Locating control ways is PC control and automatic locating | |||||||||||
| 3.Test velocity system and theory | |||||||||||
a.Via determine ice through the infrared test velocity sensor, meanwhile catch by the breaking time T,according to V=S/t calculation ice ball flight velocity | |||||||||||
b.Test speed sensor use high accurate infrared test speed sensor | |||||||||||
| c.Infrared test speed sensor accurate±5% | |||||||||||
| d.Speed catch range 0~40m/s | |||||||||||
| e.Ice ball speed:diameter 25mm,ice ball speed 23.0m/s±5% | |||||||||||
| diameter 35mm,ice ball speed 27.2m/s±5% | |||||||||||
| diameter 45mm,ice ball speed 30.7m/s±5% | |||||||||||
| 4.Ice make ways and mould | |||||||||||
a.Take the ice mould filled water and placed in the refrigerator freezing chamber,waiting for the water cooling after take the mould separate take out ice ball placed in the ice ball storage chamber cold storage spare | |||||||||||
| b.Mould use special material that does not expand easily | |||||||||||
| c.Inner cavity diameter 25mm<1%;35mm<1%;45mm<1% | |||||||||||
d.One mould have 6 ice balls,one specification at least have 2 sets of mould | |||||||||||
e.Mould inner cavity diameter 25mm<1%;35mm<1%;45mm<1% | |||||||||||
| f.Ice ball diameter 25mm<5%;35mm<5%;45mm<5% | |||||||||||
| g.Ice ball weight:7.53g<5%;20.7g<5%;43.9g<5% |
