Mechanical Load Tester for PV Module

Mechanical Load Tester for PV Module

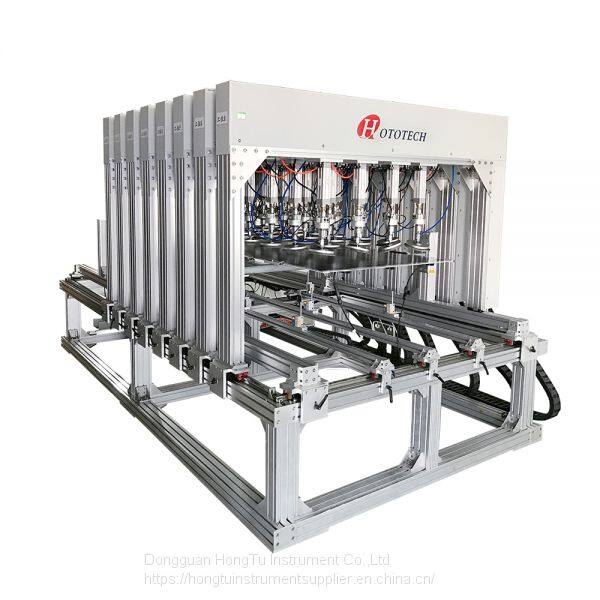

HTPV-08 Mechanical Load Tetser:
Standard:According to IEC 61215,UL1703,IEC 62782 standard requirement
Purpose:This test is to determine the ability of the module to withstand wind,snow,static or ice loads.
1.The machine table apperance dimension:L280*D180*H195cm
2.Test Positive load 5400Pa,reverse load:2400Pa(Pressure can setting)
3.Cycle times:free setting
4.Dynamic load test frequency:7s±3s
5.Dynamic load:1000Pa,1000times.
6.Pressure control accurate:5%
7.Pneumatic and force value feedback ways:low friction force cylinder,tensile pressure sensor(accurate 0.1N)
8.Aluminum profile structure feature:platform and support frame arent deformation under suffer force situation
9.The maximum test dimension:2000mm*1000mm(can accoding to customer's requirement to customized)
10.Customization test platform fixture,according to determiand install ways to do adjust
11.Current continuity system:DC power,DC 150V/2A,real-time monitor module inner current continuity
12.Cylinder:4 groups,in total 8 pieces Single the maximum output>200kg Telescopic stroke:125mm
13.Sucker:8 groups,in total 32 pieces
Sucker diameter:120mm
Sucker(with cylinder)
Sucker can rotation angle≥15°
14.Operate system
14.1.Computer control software research and development by HOTOTECH,easy operate and stability.
14.2.Software with Chinese and English language,can change each other.
14.3.Real-time show pressure,deformation,test time,cycle times,current continuity
14.4.Real-time draw and show pressure and deformation value.
14.5.Real-time show every cylinder force value and draw force value curve
14.6 Testing data real-time save,inquiry and print
14.7.Testing data export is World,Excel,PDF,JPG etc format
14.8.Fault alarm function
