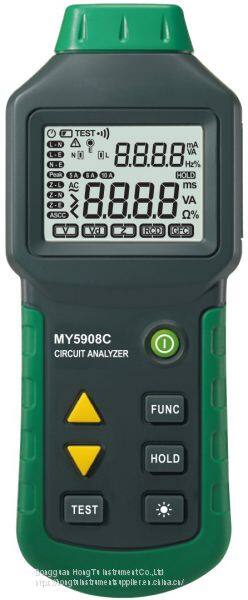

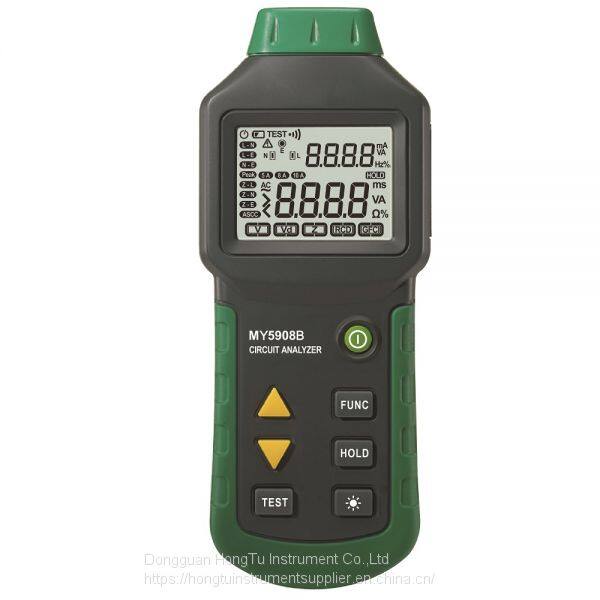

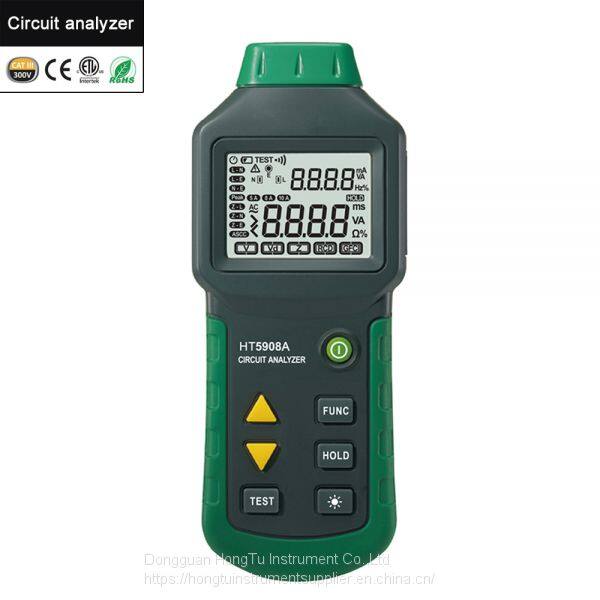

Newest Professional Automatic Circuit Analyzer Fully Automatic Analyzer
Specification
Specifications |
Range |
Resolution |
Accuracy |
Line voltage |
85.0~135.0V |
0.1V |
±(1.0%+2) |
Peak Line Voltage |
120.0~190.0V |
0.1V |
±(1.0%+2) |
Voltage with Loading equipments |
10.0~135.0V |
0.1V |
±(2.5%+2) |
Line frequency |
45.0~65.0HZ |
0.1HZ |
±(1.0%+2) |
Impedance-live and Neutral & Earth |
0.00~3.00Ω |
0.01Ω |
±(2.5%+2) |
>3.00Ω |
0.01Ω |
NO ensure |
|
Neutral-Ground Voltage |
0.0~10.0V |
0.1V |
±(2.5%+2) |
RCD trip time |
1ms~6.5S |
1mS |
±(1.0%+2) |
RCD trip current |
30mA~37mA |
0.1mA |
±(1.0%+2) |
GFCI trip time |
1ms~6.5S |
1mS |
±(1.0%+2) |
GFCI trip current |
6mA~9mA |
0.1mA |
±(1.0%+2) |
Voltage drop |
0.1~99.9% |
0.1% |
±(2.5%+2) |
Voltage drop load current |
12/15/20A |
||
General | |||
Power supply |
6*1.5V AAA Batteries |
||
Product size |
194mm*78mm*37mm/7.64”*3.07”*1.46” |
||
Product weight |
254g/0.56lb |
||
Certificate |
CE/ETL/RoHS |
||
Safety rating |
CAT III 300V |
||
Accessories include | |||
Power cord | |||
Carry bag | |||
Battery and user´s manual | |||
