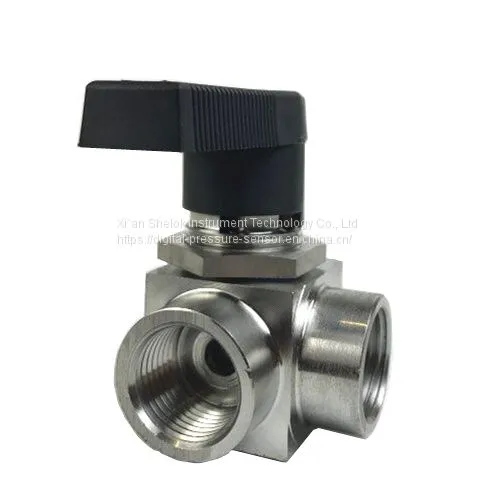

stainless steel 3-way ball valve/3 way high pressure ball valve

Description of stainless steel 3-way ball valve/3 way high pressure ball valve

This type ball valve is made of forged steel and can withstand high pressure (up to 50 MPa pressure), corrosion resistance, compact structure, panel installation and beautiful appearance. Two-side valve seat packing, long service life, metal alloy handle, no need worrying about frequent operation, resulting in handle damage, so the handle does not need to be replaced for life.
At the same time, this type of high pressure ball valve is easy to operate, has low fluid resistance and reliable sealing, and is suitable for various pipeline connection forms.

Material : stainless steel
Maximum working pressure: 138 bar (2000 psig)
Working temperature: -23 °C to 204°C (-10°F to 400°F)
Inner sizes: 0 .81 mm (0.032")
Flow coefficient (Cv):0.004
Stem taper: 1°
Open the number of turns: 9 to12

 Specification of stainless steel 3-way ball valve/3 way high pressure ball valve
