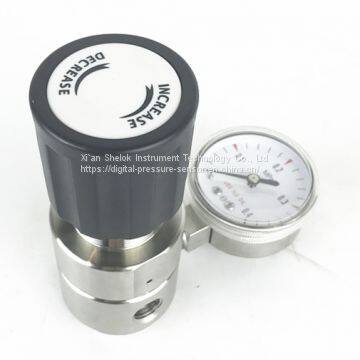

High Pressure One Stage Water Pressure Regulator Back Pressure Regulating Valve
US$ 195 - 258
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Shelok
Place of Origin:
China
Model Number:
SLK-YDR5
Payment & Shipping
Payment Methods:
Port of Shipment:
All port
Delivery Detail:
15 days
Related Products
-
High Pressure Two Stage Back Regulating Valve Regulator ValveUS$ 195 - 258MOQ: 1 Piece -
5 Way Liquid Gas Vapor Valve Manifold for Pressure TransmitterUS$ 29 - 45MOQ: 1 Piece
-
Needle Gas Pressure Regulator Valve Air Oxygen Nitrogen Brass Pressure Reducing ValveUS$ 197 - 258MOQ: 1 Piece
-
PTFE Back Pressure RegulatorUS$ 56 - 108MOQ: 1 Piece
-
1/2 1/4 1/8 Stainless Steel Needle ValveUS$ 13 - 30MOQ: 1 Piece
Brand Name
Shelok
Place of Origin
China
Model Number
SLK-YDR5
Description of one stage water pressure regulating valve:
This two stage pressure regulating valve is high pressure regulator with piston type pressure reducing structure, which is mainly applied for high input pressure demand, the maximum input pressure is 6000 psig.
Body: 316L
Seat: PCTFE, Vespel
Piston: 316L
O-rings: Viton
Max pressure range: 6000PSI
Output pressure: 0-3000PSI
Piston pressure reducing structure
Parent interface thread: NPT "1/4 (F)
Safety pressure: 1.5 times the maximum output pressure
Applicable temperature: 40℃~74℃(-40℉~165℉)
Internal leak rate: 2 x /sec He
CV: 0.06
Weight: 0.9 kg (2.0 lbs)
Gas Analysis Test
Laboratory
Petrochemical industry
Power Plant Equipment
