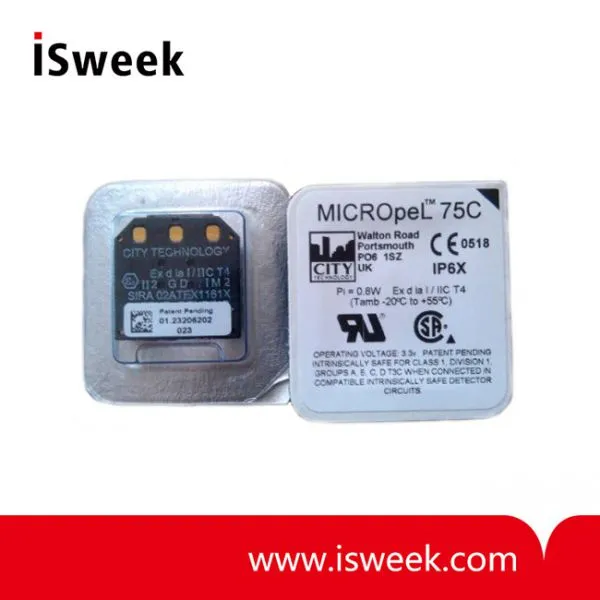

Help CenterMICROpeL 75C Combustible Gas Sensor
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
City
Place of Origin:
United Kingdom
Model Number:
MICROpeL 75C
Payment & Shipping
Payment Methods:
Port of Shipment:
HK
Delivery Detail:
7 days
Related Products
-
MH-Z14 NDIR CO2 Sensor Module for Carbon Dioxide DetectionNegotiableMOQ: 1 Piece -
NAP-57A Catalytic Type Flammable Gas SensorNegotiableMOQ: 1 Piece
-
3SP_NO2_5F P 15x15 Nitrogen Dioxide Sensor 0-5ppm P Package 110-507NegotiableMOQ: 1 Piece
-
7HL CiTiceL Electrochemical Hydrogen Chloride Gas Sensor (HCl Sensor)NegotiableMOQ: 1 Piece
-
The GS Oxygen Sensor KE Series (KE-25 & KE-50)NegotiableMOQ: 1 Piece
Brand Name
City
Place of Origin
United Kingdom
Model Number
MICROpeL 75C
Usage
Gas Sensor
Theory
Other, Catalytic Oxidation
Output
Analog Sensor
MICROpeL 75C Combustible Gas Sensor Description
MICRO combustible gas sensor, resistant to H2S and enhanced resistance to silicone poisoning – ATEX, UL & CSA certified.
MICROpeL 75C Combustible Gas Sensor Key Features & Benefits:
• ATEX, UL and CSA Approvals
• Withstands EN/IEC 60079-0 impact test
• Enhanced H2S and silicone poison resistance
• Reduced Orientation Effects
MICROpeL 75C Combustible Gas Sensor Performance Characteristics
| MEASUREMENT | |
| Operating Principle | Catalytic Oxidation |
| Gases Detected | Combustible gases |
| Suitable for | Methane, ethane, propane, butane, pentane, hexane, carbon monoxide & hydrogen |
| Unsuitable for | Higher hydrocarbons, alcohols, ketones, esters, hydrogen sulfide and other sulfur containing compounds |
| Range | 0-100% LEL |
| Sensitivity* | 31 ± 5 mV/%methane |
| T90 Response Time* | <5 seconds (methane) |
| Poison Resistance | Resistance to H2S poisoning Superior silicone resistance |
| H2S Filter Lifetime | Typically 1000 ppm hr |
| Linearity | Linear up to 3% methane |
| ELECTRICAL | |
| Operating Voltage | 3.30 ± 0.02 VDC |
| Detector Operating Current | 78 ± 6 mA |
| Maximum Power Consumption | 295 mW |
| Resolution | 1% LEL |
| MECHANICAL | |
| Weight | 2 g (nominal) |
| Orientation Sensitivity | None |
| ENVIRONMENTAL | |
| Operating Temperature Range | -20 ºC to +55 ºC |
| Operating Pressure Range | 1 atm ± 20% |
| Operating Humidity Range | 0-90% RH non-condensing |
| LIFETIME | |
| Long Term Span Drift* | <5% signal/month |
| Long Term Zero Drift* | <5% LELmethane/month |
| Recommended Storage Temp | 0 ºC to 20ºC |
| Shelf life | 6 months in sealed container |
| Warranty | 12 months from date of despatch |
* Specifications are valid at 20°C, 50%RH and 1013 mbar at a flow rate of 300 ml/min.
Performance characteristics outline the performance of sensors supplied within the first 3 months. Output signal can drift below the lower limit over time.
