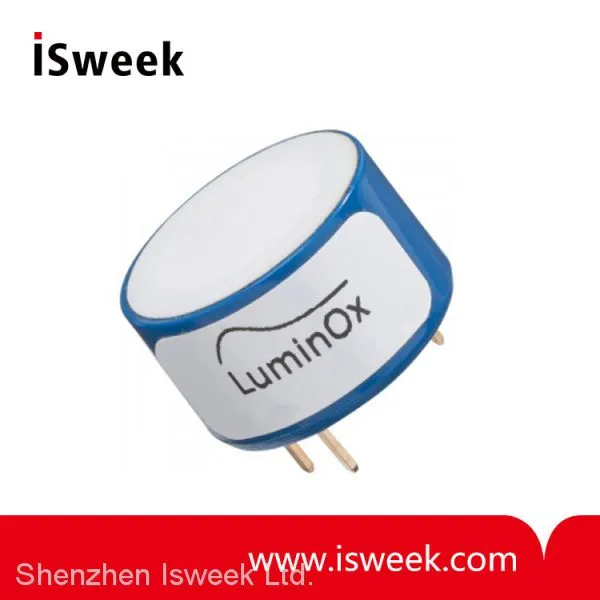

LOX-02 LuminOx Fluorescence Optical Oxygen Sensor (O2 Sensor) description
The LuminOx Family is a range of factory calibrated optical sensors which measure ambient O2 levels using the principle of fluorescence quenching by oxygen.
Our unique patented process allows us to produce an oxygen sensor that benefits from low power, traditionally associated with electrochemical sensing devices, while providing a much longer lifetime due to the non-depleting sensing principle.
LuminOx unlike other sensor technologies is stable and robust, it is RoHS compliant as it does not contain lead or any other hazardous materials and has negligible cross sensitivity.
LuminOx can be purchased as a single optical sensor, or as part as an evaluation kit which includes the LuminOx Sensor Evaluation Interface Board, which was designed to allow customers to easily evaluate the sensor with minimum effort or design work.
LOX-02 LuminOx Fluorescence Optical Oxygen Sensor (O2 Sensor) BENEFITS
• Low power
• Can also measure O 2 % & barometric pressure
• Suitable for battery power use
• Long life
• High accuracy
• Small & compact
• Low cost
• Maintenance free
• Contains no hazardous materials
• Connects directly to microcontroller without any additional circuitry.
• Factory Calibrated
LOX-02 LuminOx Fluorescence Optical Oxygen Sensor (O2 Sensor) APPLICATIONS
• Oxygen Detection
• Portable Equipment
• Breathing Apparatus
• Inerting
• Medical
• Lab Equipment
• Agriculture
• Incubation
• Fire Prevention
• Flue Gas in Condensing Boilers
LOX-02 LuminOx Fluorescence Optical Oxygen Sensor ELECTRICAL AND ENVIRONMENTAL SPECIFICATION
| Supply Voltage (Vs) |
4.5 to 5.5 Vdc |
| Supply Current (Is) |
|
| Output Type |
3.3V TTL level RS232 |
| Operating Temperature |
-30°C to +60°C |
| Storage Temperature |
-30°C to +60°C |
| Humidity |
0-99% Rh (non-condensing) |
| Barometric Pressure Range |
500 to1200mbar |
LOX-02 LuminOx Fluorescence Optical Oxygen Sensor (O2 Sensor) PERFORMANCE SPECIFICATION*
| Oxygen Measuring Range |
0-25% O₂ |
| Oxygen Pressure Range | 0-300mbar ppO2 |
| Response Time |
T90 |
| ppO 2 Accuracy / Resolution |
|
| Temperature Accuracy / Resolution |
Indication Only / 0.1° |
| Pressure Accuracy / Resolution |
±5mbar / 1mbar |
| O 2 % Accuracy / Resolution |
Determined by ppO2 and Pressure Accuracy / 0.1% |
| Lifetime |
>5 years |
*At ambient conditions. All performance measurements are at STP unless otherwise stated. Following extreme temperature fluctuations, re-calibration may be required.
LOX-02 LuminOx Fluorescence Optical Oxygen Sensor (O2 Sensor) MECHANICAL
| Connection |
4 gold-plated pins (0.64mm2) on a 2.54mm grid |
| Housing Dimensions |
20mm max diameter x 12.5mm high |
