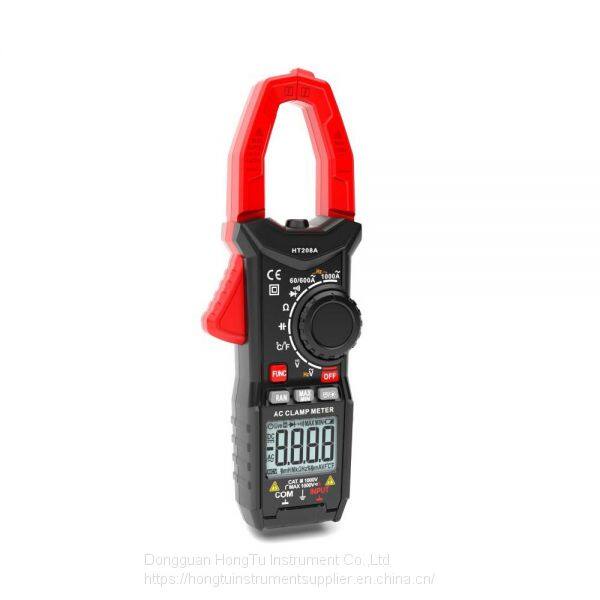

AC Digital Clamp Meter Test Voltage Meter
Specification:
Specifications | Range | Accuracy
|
HT208A | ||
DC Voltage | 6V/60V/600V/1000V | ±(1.0%+3) |
AC Voltage | 6V/60V/600V/750V | ±(1.2%+3) |
AC Current | 60A/600A/1000A | ±(3.0%+5) |
Resistance | 600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ | ±(1.0%+3) |
Capacitance | 60nF/600nF/6uF/60uF/600uF/6mF/60mF | ±(4.0%+3) |
100mF | ±(5.0%+5) | |
Frequency | 10Hz/100Hz/1kHz/10kHz/ 100kHz/1MHz/10MHz | ±(1.0%+3) |
Duty | 1%~99% | ±(1.0%+2) |
Temperature（℃/°F） | -40℃~1000℃ | ±(1.0%+3) |
-40°F~1832°F | ±(1.0%+3) | |
Counters | 6000 | |
Auto/manual range | √ | |
Bargraph | ||
NCV (LED and Buzz) | √ | |
Diode | √ | |
Continuity (LED and Buzz) | √ | |
MAX/MIN hold | √ | |
Data hold | √ | |
True RMS | √ | |
AC bandwidth | 1KHZ | |
Low battery indication | √ | |
Auto power off | √ | |
Double color backlight | √ | |
Flashlight | √ | |
LPF | ||
V-Loz | ||
Power | 2*AA batteries | |
Weight | Appro*.380g | |
Size | 240mm*85mm*40mm | |
Safety rating | EN61010-1,-2-030 EN61010-2-033,EN61326-1 CAT III 1000V,CATIV 600V | |
