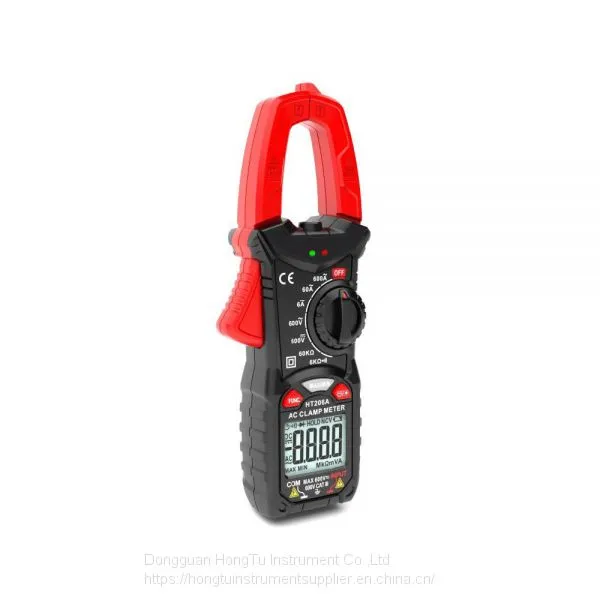

AC Digital Clamp Meter
Specification:
Specifications |
Range |
Accuracy |
|
HT206A |
HT206B |
||
DC Voltage |
600V |
±(0.5%+3) |
|
600mV/6V/60V/600V/600V |
±(0.5%+3) |
||
AC Voltage |
600V |
±(1.0%+5) |
|
6V/60V/600V/600V |
±(1.0%+3) |
||
AC Current |
2A/20A/200A |
±(2.5%+5) |
±(2.5%+5) |
Resistance |
2KΩ/20KΩ |
±(1.0%+3) |
|
600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ |
±(1.0%+3) |
||
Capacitance |
10nF/100nF/1uF/10uF/100uF/1mF/10mF |
±(4.0%+3) |
|
Frequency |
10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz |
±(0.5%+5) |
|
Duty |
1%~99% |
±(1.0%+2) |
|
Temperature（℃/°F） |
-40℃~1000℃ |
±(1.0%+2) |
|
-40°F~1832°F |
±(1.0%+2) |
||
Counters |
6000 counters |
6000 counters |
|
Auto/manual range |
Manual |
Auto |
|
Continuity (sound and light alarm) |
√ |
√ |
|
Diode test |
√ |
||
Data hold |
√ |
√ |
|
NCV (sound and light alarm) |
√ |
||
Backlight |
√ |
√ |
|
Flashlight |
√ |
√ |
|
Low battery indication |
√ |
√ |
|
Auto power off |
√ |
√ |
|
True RMS |
√ |
||
LPF |
√ |
||
Max/MIN |
√ |
√ |
|
LowZ |
√ |
||
Power |
2*AAA(1.5V)batteries |
||
Weight |
Appro*.260g |
||
Size |
193mm*73mm*34mm |
||
Safety rating |
EN61010-1,-2-030 EN61010-2-033,EN61326-1 CAT III 600V |
||
