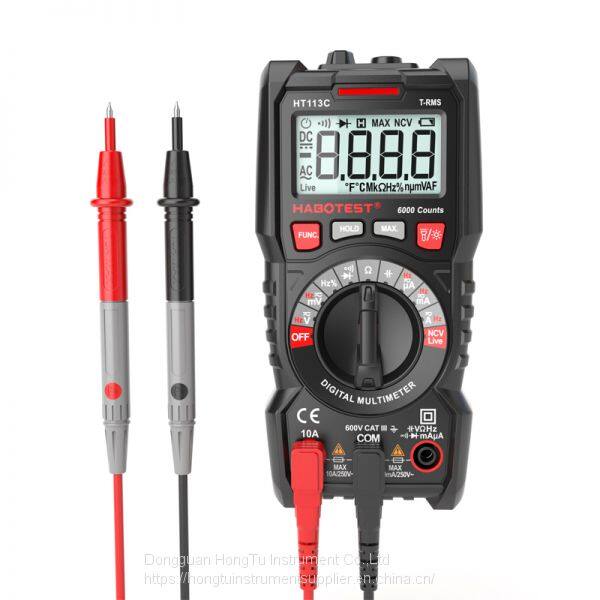

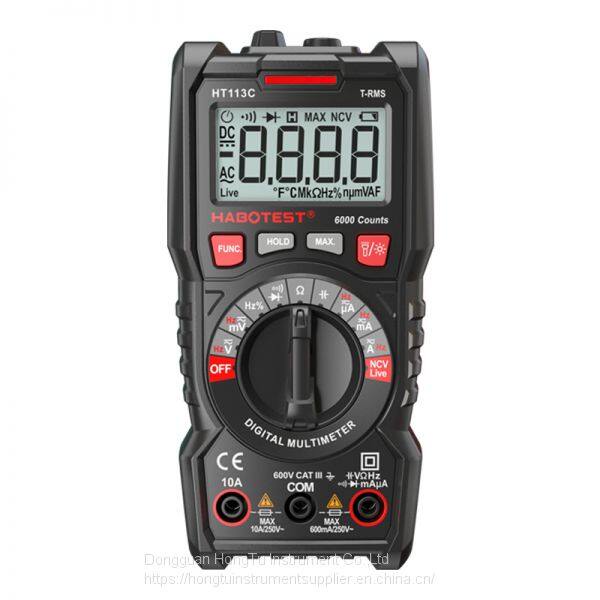

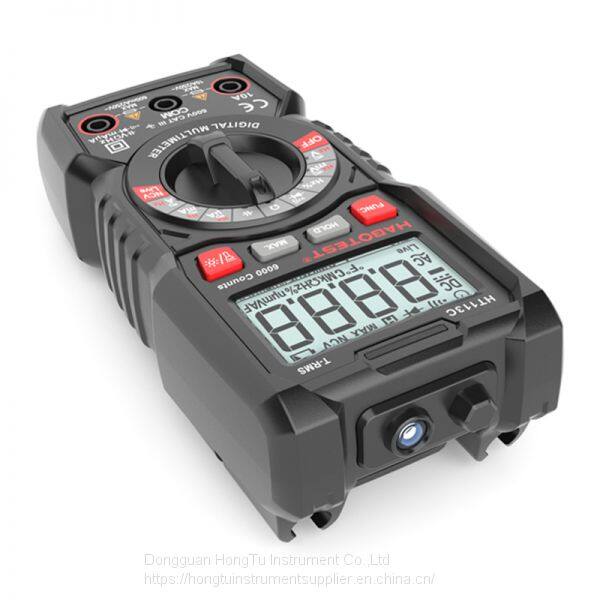

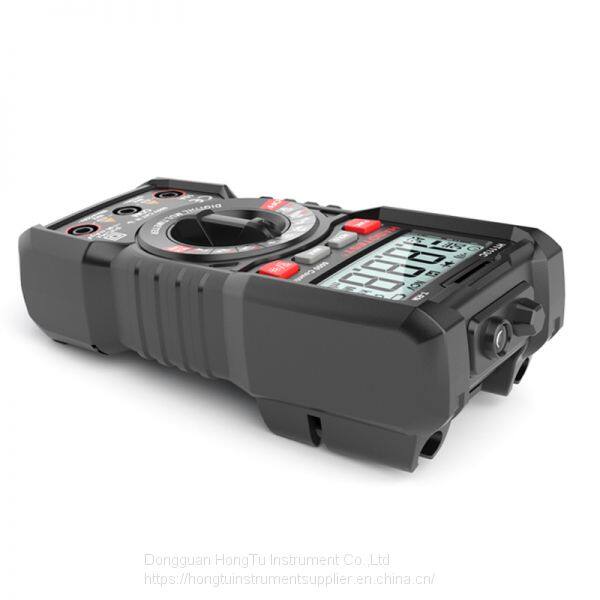

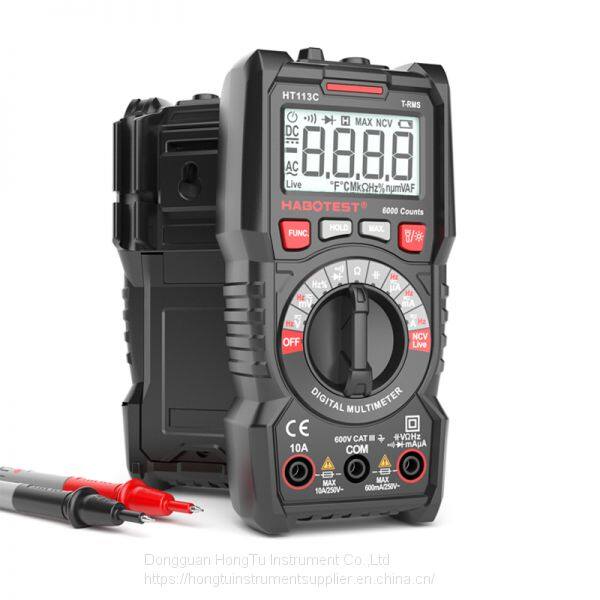

Diode Test 6000 Counts Digital Multimeter with Autorange Non Contact Multimeter
Specification
Specifications |
Range |
Accuracy |
|
HT113B |
HT113C |
||
DC Voltage |
400mV/4V/40V/400V/600V |
±(0.5%+3) |
|
600mV/6V/60V/600V |
±(0.5%+3) |
||
AC Voltage |
400mV/4V/40V/400V/600V |
±(1.0%+3) |
|
600mV/6V/60V/600V |
±(1.0%+3) |
||
400uA/4000uA/40mA/400mA |
±(1.2%+3) |
||
DC Current |
600uA/600uA/60mA/600mA |
±(1.2%+3) |
|
10A |
±(2.0%+3) |
±(2.0%+3) |
|
AC Current |
400uA/400uA/40mA/400mA |
±(1.5%+3) |
|
600uA/6000uA/60mA/600mA |
±(1.5%+3) |
||
10A |
±(2.0%+3) |
±(2.0%+3) |
|
Resistance |
400Ω/4KΩ/40kΩ/400kΩ/4MΩ/40MΩ |
±(1.0%+3) |
|
600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ |
±(1.0%+3) |
||
Capacitance |
10nF/100nF/1uF/10uF/100uF/1mF/10mF |
±(4.0%+3) |
|
100mF |
±(5.0%+5) |
||
Frequency |
10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz |
±(1.0%+3) |
|
Duty |
1%~99% |
±(3.0%+3) |
|
Display |
4000 Counts |
6000 Counts |
|
Auto/Manual range |
Auto |
Auto |
|
Live test |
√ |
||
NCV |
√ (LED and Buzz) |
√ (LED and Buzz) |
|
Diode test |
√ |
√ |
|
Continuity |
√ (LED and Buzz) |
√ (LED and Buzz) |
|
Max/Min hold |
√ |
√ |
|
Data hold |
√ |
√ |
|
True RMS |
√ |
√ |
|
bandwidth |
1kHz |
1kHz |
|
Battery test (1.5V/9V) |
√ |
||
Low battery indication |
√ |
√ |
|
Auto power off |
√ |
√ |
|
Back light |
√ |
√ |
|
Work light |
√ |
√ |
|
Power |
2x1.5V AAA batteries |
||
Weight |
Approx.220g |
||
Size |
151mm*75mm*48mm |
||
Safety Rating |
EN61010-2-030,EN61010-2-033,CATIII 600V |
||
