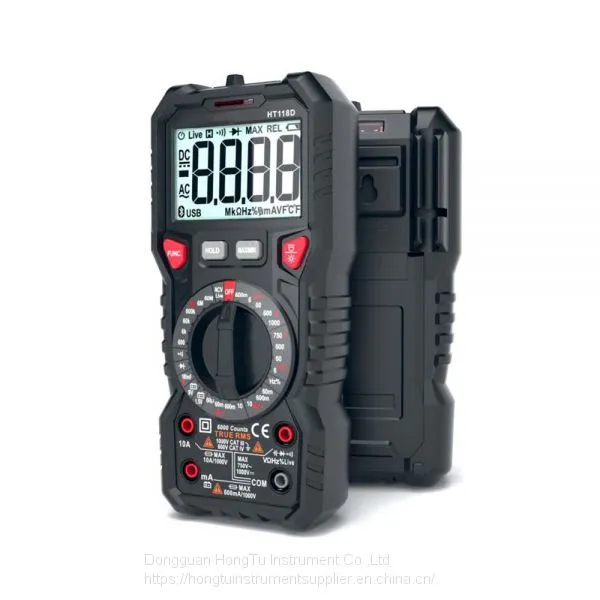

Made in China HT118D Best multimetro digital with LCD
Specification:
Specifications |
Range |
Accuracy |
|
HT118C |
HT118D |
||
DC Voltage |
600mV/6V/60V/600V/1000V |
±(0.5%+3) |
±(0.5%+3) |
AC Voltage |
6V/60V/600V/750V |
±(1.0%+5) |
±(1.0%+5) |
DC Current |
60uA/600uA/600mA |
±(0.8%+3) |
±(0.8%+3) |
10A |
±(1.2%+3) |
±(1.2%+3) |
|
AC Current |
60mA/600mA |
±(1.0%+3) |
±(1.0%+3) |
10A |
±(1.5%+3) |
±(1.5%+3) |
|
Resistance |
600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ |
±(0.8%+3) |
±(0.8%+3) |
Capacitance |
10nF/100nF/1uF/10uF/100uF/1mF/10mF |
±(4.0%+3) |
±(4.0%+3) |
100mF |
±(5.0%+5) |
±(5.0%+5) |
|
Frequency |
10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz |
±(1.0%+3) |
±(1.0%+3) |
Duty |
1%~99% |
±(1.0%+2) |
±(1.0%+2) |
Temperature(℃/℉) |
-40℃~1000℃ |
±(1.0%+3) |
|
-40℉~1832℉ |
±(1.0%+3) |
||
Counts |
6000 Counts |
6000 Counts |
|
Auto/Manual range |
Manual |
Manual |
|
Display |
LCD |
LCD |
|
Live test (sound and light alarm) |
√ |
√ |
|
NCV (sound and light alarm) |
√ |
√ |
|
Diode test |
√ |
√ |
|
Continuity (sound and light alarm) |
√ |
√ |
|
Max/Min hold |
√ |
√ |
|
Data hold |
√ |
√ |
|
True RMS |
√ |
√ |
|
bandwidth |
1kHz |
1kHz |
|
Battery test (1.5V/9V) |
√ |
√ |
|
Low battery indication |
√ |
√ |
|
Auto power off |
√ |
√ |
|
Double color backlight |
√ |
√ |
|
Input jack LED indicate |
√ |
√ |
|
Work light |
√ |
√ |
|
Power |
Power |
||
Weight |
Approx.350g |
||
Size |
188mm*88mm*58mm |
||
Safety Rating |
EN61010-1,-2-030,EN61010-2-033,,EN61326-1, CATIII 1000V,CATlV 600V |
||
