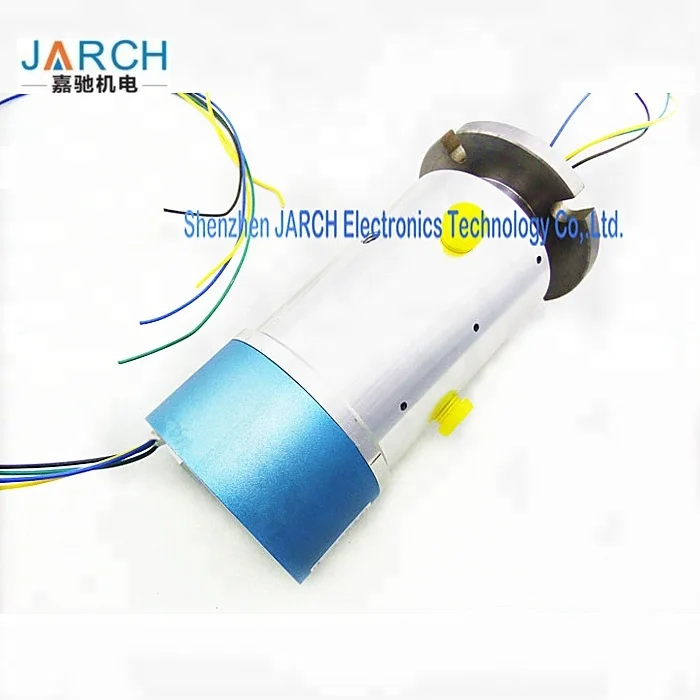

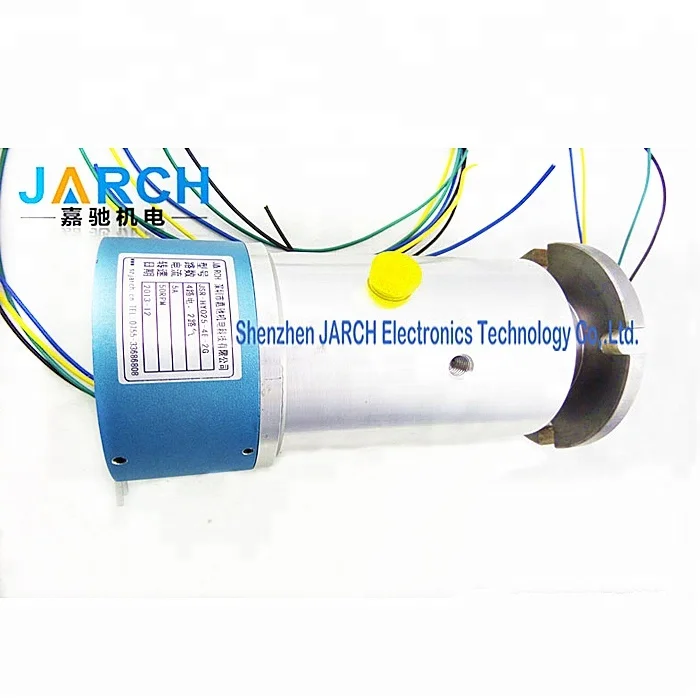

JARCH Compressed Air 10 Circiuts 2 Passages Pneumatic Rotary Union / Electrical Slip Ring
10 Circiuts Signal Hybrid Slip Rings 2 Passages With Aluminium Alloy Housing
Feature:
****10 circuits,2A/5A/10A/15A currentRCH
****2 passage(8mm) with 8-10mm tubeARCH
****Passage media:compressed airARCH
****Max speed:30rpm
****Precision ball bearings for long life
****Custom modifications to our stock products significantly reducing lead times and costs
Model Explanation--JSY-HY025-10E-2G
Electrical Specifications:
| Rings | 2 ~ 24 | Current | Signal(2A) or 5A /15A |
| Voltage | mV~240 VDC/VAC | Max speed | 30RPM |
| Through bore size | None | Overall diameter | 78mm |
| Housing Material | Aluminium Alloy | Torque | 0.05N.m;+0.03N.m/6rings |
| Working life | 50million | Contact material | Precious Metal:Gold-Gold |
| Electrical noise | Contact Resistance | ||
| Dielectric strength | 1000VDC@50Hz | Lead Wire | UL Teflon® Awg26,Awg22,Awg16 |
| Insulation resistance | 500MΩ@600VDC | Lead Lengths | 300mm(12") |
| Operating Temp. | -40°C to 80°C | Protection | IP54 |
| Materials | Lead Free, ROHS | Certified | CE,FCC |
Slip rings can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.
JARCH HY Series Pneumatic Electrical Rotary Union Support 2-24 passage way Pneumatic/Hydraulic, it can combine with power,signal,Ethernet,USB,Devicenet,Control Net,Canbus on request. It also could be mounted by shaft or optional flange mounting.Passage media types can use Air/Gas, Chemical, DI / Tap Water, Oil, Water/Glycol.
The JSR-HY025-10E-1G-FL provide 1 passage 8mm compressed air passage, combine 10 circiuts 2A/15A electrical slip ring.The slip ring provide a rotary flange can be install on a rotary table.

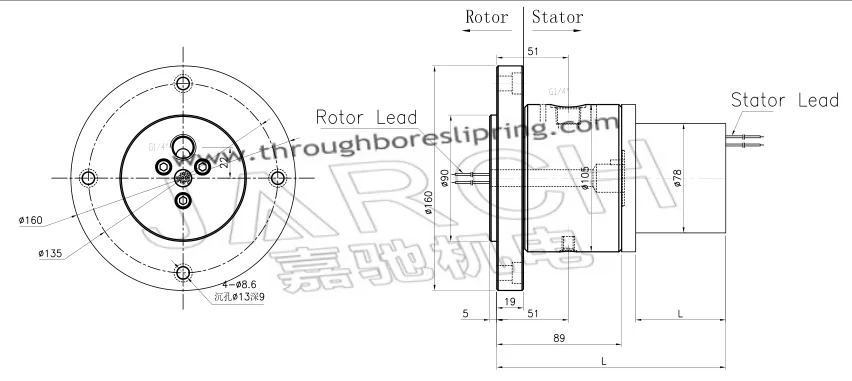

Dimensions:
Dimension L To Be Advised When Ring And Current Details Are Options . Please Contact JARCH Technical Department
Benefits:
***Unique signal handling performance with minimal electrical circuit noise
***Tight packaging to fit in the most demanding space constraints
***Fully compatible with both analog and TTL control level signals
***Precision ball bearings for long life
***Sealed units available,IP67 optional
***Rugged anodized aluminum construction
***Low Cost ,Preferential prices
***Small size
***Rapid delivery
Installation Instructions--Flange mounted:
Applications:
-
• Exhibit/display equipment
• Packaging / wrapping machinery
• Semiconductor handling systems
• Industrial machinery
• rotary index tables
• Process control equipment
