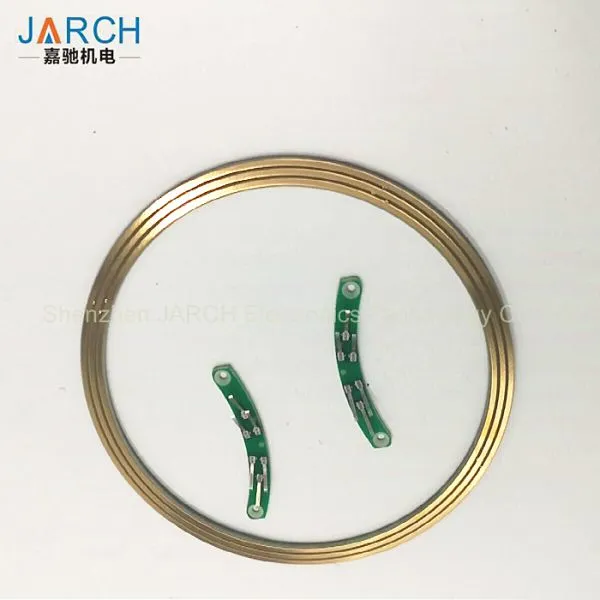

IP00,ID 100mm,OD 113mm PCB slip ring
Pancake slip rings are specially designed when length is at a premium but diameter is less restrictive;
2,3,4,6,8,10 circuits version
Dimensions & Specification:
Benefits:
Longer lead lengths availableI
Power and signal combinations
Rotor and stator lead exits
gold alloy brush,Gold plated rings
IP65 are optional
More thickness available
Applications:
Filling equipment
Electrical test equipment.
Medical equipment.
Rotary table
Robotics
Laboratory equipment
Manufacturing and process control equipment
Installation Instructions:
Shaft mounted
Flange mounted
Packaging & Delivery:
| Packaging Details: | Standard Export carton Package |
| Delivery Details: |
Delivery time:15 days after got the payment Shipping:BY DHL, FedEx, UPS or TNT...... |
If you have any questions, please contact us without any hesitation.
|
Shenzhen JARCH Electronics Technology Co.,Ltd.
Main Item list: slip ring,rotary union,fiber optic rotary joint(FORJ),hose reel/cable reel,carbon brush,brush holder...
Customer Service: ATTN: Ms.Kris Yao E-mail: kris Phone&WhatsApp:86-13929708571 Skype/Kakao: krisyao313 Wechat: laoyao313 QQ: 3003854385
|
|
JARCH is a professional Slip Ring & Routry Joint manufacturer in Shenzhen, China. JARCH has become one of the best-known Chinese brands in the world for high quality slip rings and first-rate services. Since we were founded in 1998, we have been committed to innovating, developing and manufacturing high quality slip rings and providing perfect rotation solutions for customers around the world.
A:
If you want to customize the special slip ring model, you need provide details as below:
a. Operatring speed(RPM)
b. The type of installation
c. Outline size
d. Channels(the No. of single wire besides cable)
e. Rated voltage & current for power rings and signal rings
f. The signal type and related parameters(very important)
g. Operating temperature h.IP(sealing requirements)
2.How long is your production lead time?
A: It needs 7 to 15 days for standard products, 10 to 20 days for simple customized products,
15 to 40 days for complex customized porducts.
