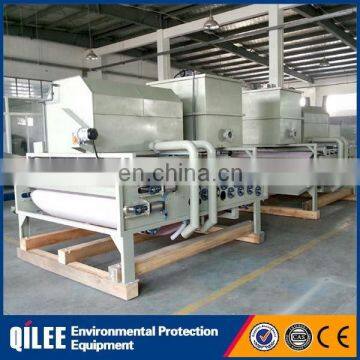

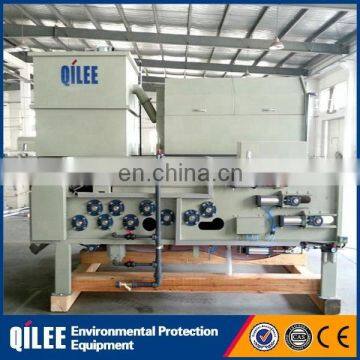

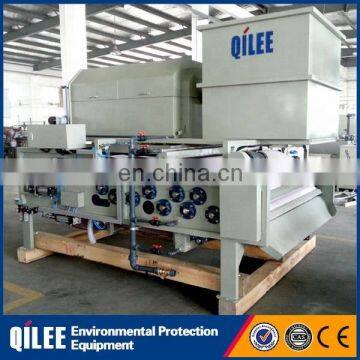

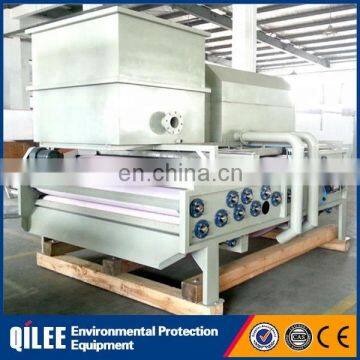

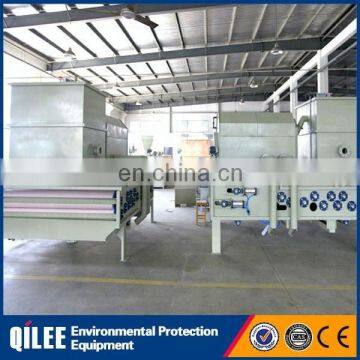

Biochemical Tail Steel Plant Converter Sludge Filter Machine
The pictures are for your reference only, please subject to practicality.
Biochemical Sludge Filter Machine Features:
1.The principal part adopts stainless steel as its material and possesses high strength. It is rust-less.
2. The filter cloth imported from Swiss, to provide the best performance and long service life.
3. Air chamber type automatic deviation correction device is set to assure stable running of the filter cloth.
4. Great product capability, good washing effect, flexible operation, low containing moisture in cake and low maintain expense
5. Low energy consumption,high efficiency ,low revolutions,low noise≤75dB(A)
6. Safety system monitor the entire working environment,automatic stopping devices to satisfy the need of operation security.
Biochemical Sludge Filter Machine selection of models:
Model | QTBH-1000 | QTBH-1250 | QTBH-1500 | QTBH-1500L | QTBH-2000 | |
Belt Width(mm) | 1000 | 1250 | 1500 | 1500 | 2000 | |
Low Consistency
| Treating Capacity(m3/hr) Inlet Consistency(s.s.0.4-0.8%) | 13.5-17.5 | 17.5-22.5 | 21-27 | 27.5-35.5 | 37.5-49 |
Dried sludge(kg/hr) | 55-112 | 70-144 | 85-172 | 110-228 | 150-312 | |
Middle Consistency
| Treating Capacity(m3/hr) Inlet Consistency(s.s.0.8-1.5%) | 10.5-13.5 | 12.5-17.5 | 16-21 | 20.5-27.5 | 30-37.5 |
Dried sludge(kg/hr) | 84-158 | 100-188 | 128-240 | 164-308 | 240-450 | |
Water Content’s Rate(%) | 75-85 | 75-85 | 75-85 | 75-85 | 75-85 | |
Powder Consumption (HP)
| Driving Motor | 1/2 | 1/2 | 1/2 | 1 | 1 |
Disposal Agitator Motor | 1/4 | 1/4 | 1/2 | 1/2 | 3/4 | |
Drum Thickener | 3/4 | 1 | 3/4*2 | 3/4*2 | 1*2 | |
Lower Collecting Tray for Pressed Filtrate | None | None | None | None | None | |
External Dimensions (Reference)(mm)
| L | 2700 | 2800 | 2900 | 3500 | 3500 |
W | 1550 | 1800 | 2150 | 2150 | 2650 | |
H | 2500 | 2500 | 2500 | 2600 | 2700 | |
Base Dimension L1*W1(mm) | 2100*1330 | 2100*1580 | 2100*1830 | 2450*1900 | 2580*2400 | |
Reference Weight(kgs) | 1420 | 1680 | 2100 | 2550 | 3150 | |
Biochemical Sludge Filter Machine Treatment Flowchart:
Biochemical Sludge Filter Machine Application:
1. Sludge dewatering of various industrial waste water.
2. Sludge dewatering of butchery, husbandry.
3. Slurry and water separation in food& beverage industry, chemical industry, mining and other industries.
4. Sludge dewatering of city sewage, excretion, water purifying industries.
Biochemical Sludge Filter Machine Structure:
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
