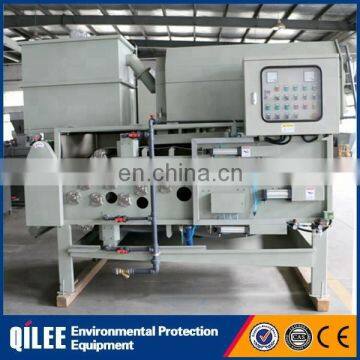

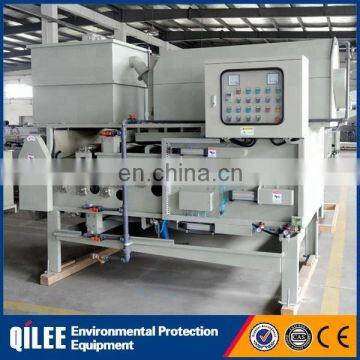

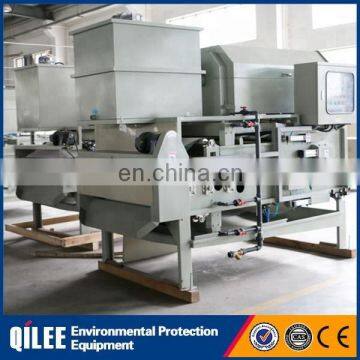

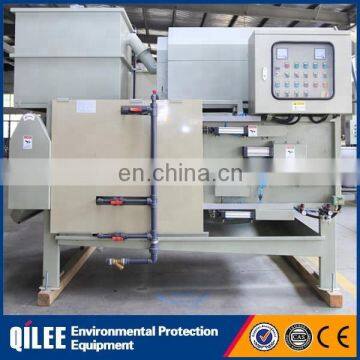

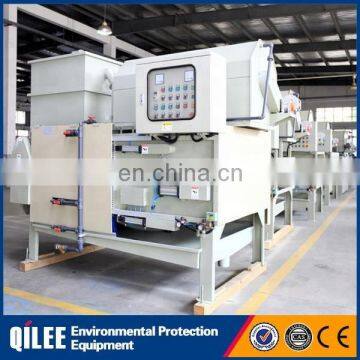

Stylish Sludge Slurry Squeezing Butchery Sewage Stacked Dewatering Machine
- 20 Set / Sets per Month
- Shanghai
- T/T Credit Card
- Dewatering Machine Belt Price Sludge Press
- Textile Package Beverage Plant Wastewater Treatment Dewatering Machine
- Water Saving Concentration New Developed Sludge Sewage Disposal Dewatering Machine
- Oil Small Belt Filter Press For Leather Sludge Dewatering
- Full Automatic Sludge Belt Filter Press For Wastewater Treatment
- Biochemical Tail Steel Plant Converter Sludge Filter Machine
Product Details
Brand Name: | QILEE | Place of Origin: | Shanghai, China |
Product Description
Stylish Sludge Slurry Squeezing Butchery Sewage Stacked Dewatering Machine
Stylish Sludge Slurry Dewatering Machine Featurs:
1.The principal part adopts stainless steel as its material and possesses high strength. It is rust-less.
2. The filter cloth imported from Swiss, to provide the best performance and long service life.
3. Air chamber type automatic deviation correction device is set to assure stable running of the filter cloth.
4. Great product capability, good washing effect, flexible operation, low containing moisture in cake and low maintain expense
5. Low energy consumption,high efficiency ,low revolutions,low noise≤75dB (A)
6. Safety system monitor the entire working environment,automatic stopping devices to satisfy the need of operation security.
Stylish Sludge Slurry Dewatering Machine Selection of models:
Model | QTB-500 | QTB-750 | QTB-1000 | QTB-1250 | QTB-1500 | QTB-1500L | QTB1750 | QTB-2000 | |
Belt Width(MM) | 500 | 750 | 1000 | 1250 | 1500 | 1500 | 1750 | 2000 | |
Treating Capacity( m³/hr ) Inlet Consistency(ss0.5~1.5%) | 3.0~5.2 | 4.5~7.5 | 6.5~10.5 | 7.5~12.5 | 9.5~16 | 12~20.5 | 15~24.5 | 18~30 | |
Dried Sludge(kg/hr) | 45~78 | 68~113 | 98~158 | 113~188 | 143~240 | 180~308 | 225~368 | 270~450 | |
Water Content's Rate(%) | 63~84.5 | 63~84.5 | 63~84.5 | 63~84.5 | 63~84.5 | 63~84.5 | 63~84.5 | 63~84.5 | |
Power Consumption (HP) | Driving Motor | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1 | 1 | 1 |
Disposal Agitaor Motor | 1/4 | 1/4 | 1/2 | 1/2 | 3/4 | 3/4 | 3/4 | 1 | |
Drum Thickener | 1/4 | 1/4 | 1/2 | 1/2 | 1/2 | 3/4 | 3/4 | 3/4 | |
Lower Collecting Tray For Pressed Filtrate | Yes | Yes | Yes | Yes | Yes | Yes | No | No | |
External Dimensions (Reference) (MM) | L | 2600 | 2600 | 2600 | 2600 | 2700 | 3300 | 3300 | 3400 |
W | 1050 | 1300 | 1550 | 1800 | 2150 | 2150 | 2400 | 2650 | |
H | 2150 | 2350 | 2350 | 2350 | 2500 | 2500 | 2500 | 2600 | |
Base Dimension(L1*W1,MM) | 2100*830 | 2100*1080 | 2100*1330 | 2100*1580 | 2100*1830 | 2450*1860 | 2580*2110 | 2580*2360 | |
Reference Weight(Kg) | 830 | 1000 | 1210 | 1450 | 1850 | 2200 | 2450 | 2850 |
Stylish Sludge Slurry Dewatering Machine Application:
1. Sludge dewatering of various industrial waste water.
2. Sludge dewatering of butchery, husbandry.
3. Slurry and water separation in food& beverage industry, chemical industry, mining and other industries.
4. Sludge dewatering of city sewage, excretion, water purifying industries.
Stylish Sludge Slurry Dewatering Machine Treatment Flowchart:
Stylish Sludge Slurry Dewatering Machine Structure:
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
