HYBRID STEP-SERVO MOTOR 23CF3P SERIES HIGH TORQUE LOW VIBRATION
General Specifications：
Step Angle --------------------------------------------------------1.2° (full step)
Step Angle Accuracy --------------------------------±5%(full step, no load)
Resistance Accuracy -----------------------------------------------------±10%
Inductance Accuracy -----------------------------------------------------±20%
Temperature Rise ----------------80℃ Max(rated current, 2 phases on)
Ambient Temperature Range ----------------------------- -20℃∽+50℃
Insulation Resistance ----------------------------- 100MΩ Min. 500VDC
Dielectric Strength ----------------------------500VAC 50Hz 1mA 1 Minute
Insulation Class -------------------------------------------------B Class (130℃)
Electrical Specifications:

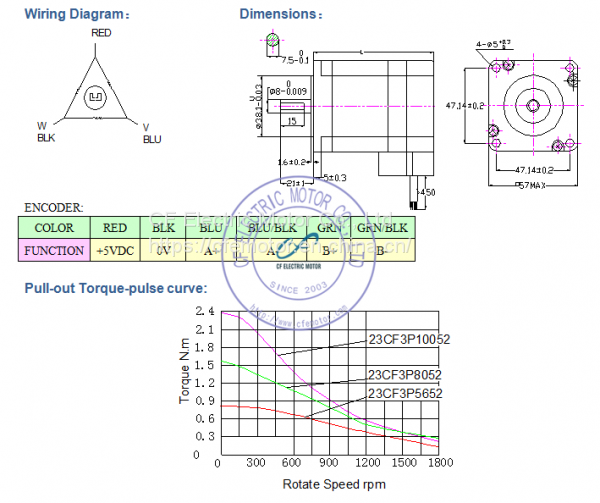

Model | L Motor Length (mm) | Holding Torque (N.m) Min. | Rated Voltage DC(V) | Rated Current (A) | Phase Resistance (Ω) | Phase Inductance (mH) | Rotor Inertia (kg.cm²) | Motor Weight (kg) |
1000 Encoder | ||||||||
23CF3P5652-1000 | 73 | 1.0 | 24-48 | 5.2 | 0.6 | 0.9 | 0.28 | 0.7 |
23CF3P8052-1000 | 97 | 2.0 | 24-48 | 5.2 | 0.9 | 1.6 | 0.52 | 1.1 |
23CF3P10052-1000 | 117 | 3.0 | 24-48 | 5.2 | 1.2 | 2.5 | 0.78 | 1.5 |
Shown in the table is the representative product. It can be customized according to the requirements of users.
