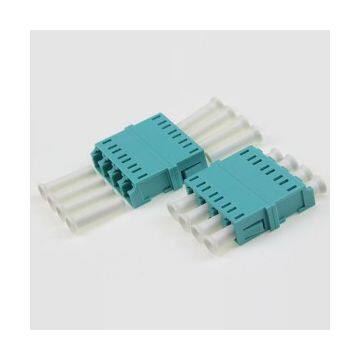

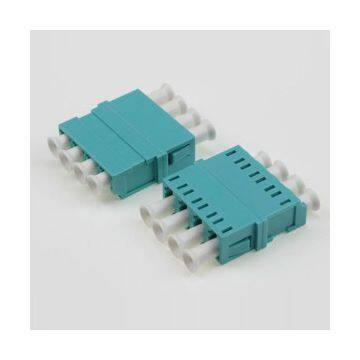

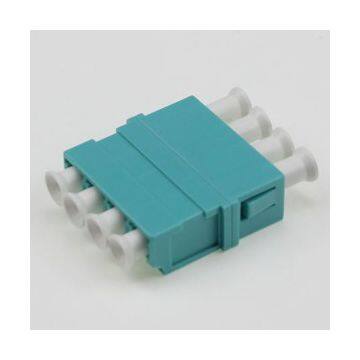

Help CenterLC MM OM3 SC-Type Adapter Without Ear
Related Products
LC MM OM3 SC-Type Adapter with ear
fiber Optic Adapters are an important component in a fiber optic network; they are used in a fiber optic patch
panel or any other outlet to mate two connectors. Fiber Optic adaptors are available for all standard connector
types in both singlemode and multimode including Simplex and duplex versions. Our fiber optic adapters are
made with high precision machines which ensure precise alignment for the connectors when they are plugged in. fiber Optic Adaptors are color coded allowing easy identification of the adaptor type.
| Connector Type | LC |
| Polish Type | UPC |
| Fiber Mode | Multi mode |
| Fiber Counts | Simplex |
| Insertion Loss | ≤0.2dB |
Specification
Parameter |
Unit | LC,SC,FC,ST,MTRJ,MPO |
|||
| SM | MM | ||||
| PC | UPC | APC | PC | ||
| Insertion Loss(Typical) | dB | ≤0.2dB | ≤0.2dB | ≤0.2dB | ≤0.2dB |
| Return Loss | dB | ≧45 | ≧50 | ≧60 | ≧30 |
| Exchangeability | dB | ≤0.2dB |
|||
| Repeatability | dB | ≤0.2dB |
|||
| Durability | Time | >1000 |
|||
| Operating Temperature | ℃ | -40~75 |
|||
| Storage Temperature | ℃ | -40~85 |
|||
Features
Accurate Mechanical Dimensions
Low Insertion Loss,high return loss
Excellent compatibility
Excellent repeatability
Excellent Temperature stability
No Polishing, no Epoxy
More Convenient to install
Application
Local Area Network
Optical fiber communication system
Optical access network(OAN)
Optical CATV
Optical fiber sensor
Fiber optics data transmission(FODT)
Active device termination
Equipment test
