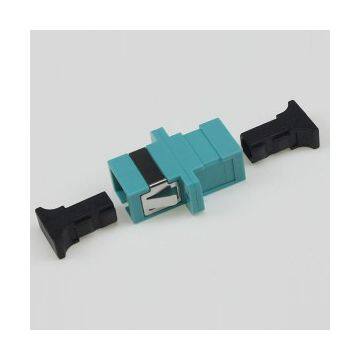

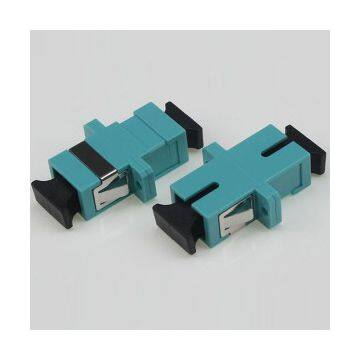

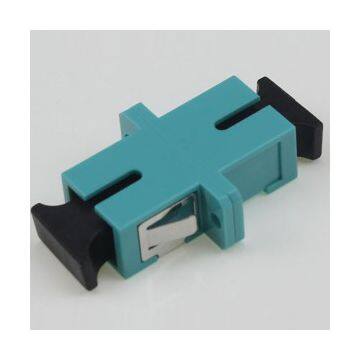

SC MM OM3 SX Adapter with ear
A fiber optic adapter or coupler is a special passive component designed to mate or connect two ends of a fiber optic cable with high precision. Fiber optic adapters mate two ends of different fibers optic connectors, achieving the conversion between different connectors FC, SC, ST,LC, MTRJ, MPO, E2000 and so on. They are widely used for Optical Distribution Frame (ODF),fiber optic communication device and equipment, with excellent performance, good stability. We can also call them Fiber optic Flange or Coupler.
| Connector Type | SC |
| Polish Type | UPC |
| Fiber Mode | Multi mode |
| Fiber Counts | Simplex |
| Insertion Loss | ≤0.2dB |
Specification
Parameter |
Unit | LC,SC,FC,ST,MTRJ,MPO |
|||
| SM | MM | ||||
| PC | UPC | APC | PC | ||
| Insertion Loss(Typical) | dB | ≤0.2dB | ≤0.2dB | ≤0.2dB | ≤0.2dB |
| Return Loss | dB | ≧45 | ≧50 | ≧60 | ≧30 |
| Exchangeability | dB | ≤0.2dB |
|||
| Repeatability | dB | ≤0.2dB |
|||
| Durability | Time | >1000 |
|||
| Operating Temperature | ℃ | -40~75 |
|||
| Storage Temperature | ℃ | -40~85 |
|||
Features
Accurate Mechanical Dimensions
Low Insertion Loss,high return loss
Excellent compatibility
Excellent repeatability
Excellent Temperature stability
No Polishing, no Epoxy
More Convenient to install
Application
1.Data Processing Networks
2.Telecommunication networks
3.Connection of optical transmission equipments and devices
4.Computer network
5.CATV
6.Industrial, military and medical
