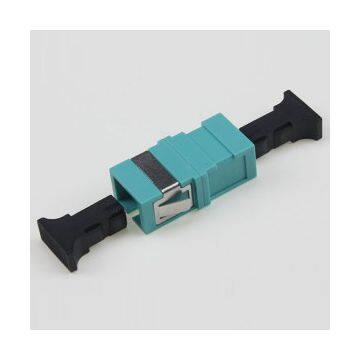

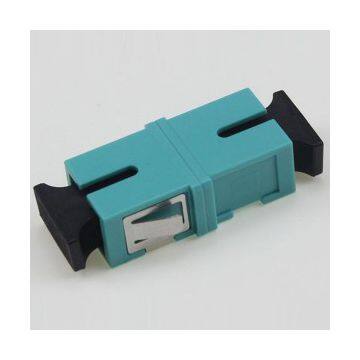

SC MM OM3 Adapter without ear
A fiber optic adapter or coupler is a special passive component designed to mate or connect two ends of a fiber optic cable with high precision. Fiber optic adapters mate two ends of different fibers optic connectors, achieving the conversion between different connectors FC, SC, ST,LC, MTRJ, MPO, E2000 and so on. They are widely used for Optical Distribution Frame (ODF),fiber optic communication device and equipment, with excellent performance, good stability. We can also call them Fiber optic Flange or Coupler.
| Connector Type | SC |
| Polish Type | UPC |
| Fiber Mode | Multi mode |
| Fiber Counts | Simplex |
| Insertion Loss | ≤0.2dB |
Specification
Parameter |
Unit | LC,SC,FC,ST,MTRJ,MPO |
|||
| SM | MM | ||||
| PC | UPC | APC | PC | ||
| Insertion Loss(Typical) | dB | ≤0.2dB | ≤0.2dB | ≤0.2dB | ≤0.2dB |
| Return Loss | dB | ≧45 | ≧50 | ≧60 | ≧30 |
| Exchangeability | dB | ≤0.2dB |
|||
| Repeatability | dB | ≤0.2dB |
|||
| Durability | Time | >1000 |
|||
| Operating Temperature | ℃ | -40~75 |
|||
| Storage Temperature | ℃ | -40~85 |
|||
Features
Low insertion and back reflection loss, high precision alignment
Telcordia, TIA/EIA compliance
Compact design, Plastic housing
Good changeability and repeatability
Simplex, Duplex
Application
1.Communication Workshop
2.FTTH
3.Local Area Network
4.Fiber Sensor
5.CATV
6.Fiber Optical Communication System
