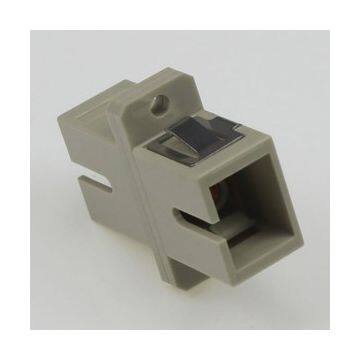

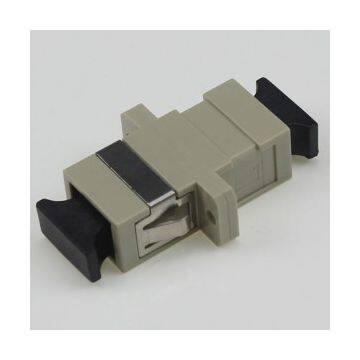

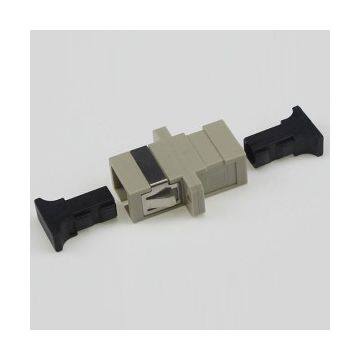

SC MM SX Adapter with ear
Fiber Optic adapters have been designed to be compact and flexible making it suitable for the interconnection between optical fiber in optical patching panels. With dust protection caps included, the combination of a unique ferrule polishing and a precision metal or plastic housing provides a consistent mechanical and optical performance.
| Connector Type | SC |
| Polish Type | UPC |
| Fiber Mode | Multi mode |
| Fiber Counts | Simplex |
| Insertion Loss | ≤0.2dB |
Specification
Parameter |
Unit | LC,SC,FC,ST,MTRJ,MPO |
|||
| SM | MM | ||||
| PC | UPC | APC | PC | ||
| Insertion Loss(Typical) | dB | ≤0.2dB | ≤0.2dB | ≤0.2dB | ≤0.2dB |
| Return Loss | dB | ≧45 | ≧50 | ≧60 | ≧30 |
| Exchangeability | dB | ≤0.2dB |
|||
| Repeatability | dB | ≤0.2dB |
|||
| Durability | Time | >1000 |
|||
| Operating Temperature | ℃ | -40~75 |
|||
| Storage Temperature | ℃ | -40~85 |
|||
Features
Accurate Mechanical Dimensions
Low Insertion Loss,high return loss
Excellent compatibility
Excellent repeatability
Excellent Temperature stability
No Polishing, no Epoxy
More Convenient to install
Application
Local Area Network
Optical fiber communication system
Optical access network(OAN)
Optical CATV
Optical fiber sensor
Fiber optics data transmission(FODT)
Active device termination
Equipment test
