144 Henan Sunrise reverse osmosis membrane pressure vessels

Henan Sunrise reverse osmosis membrane pressure vessels
This reverse osmosis membrane pressure vessels adopts stainless steel sand filter,active carbon filter effctively to remove impure particles and suspending matters,effectively remove the smell and rest chlorine of the original water,to reach the goal of improve taste of water qualit.

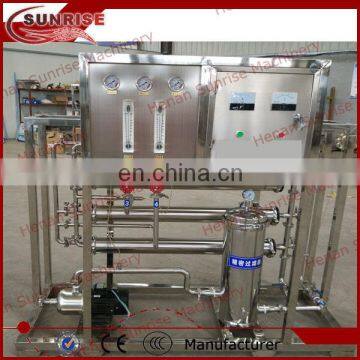

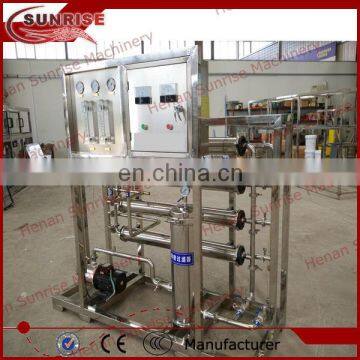

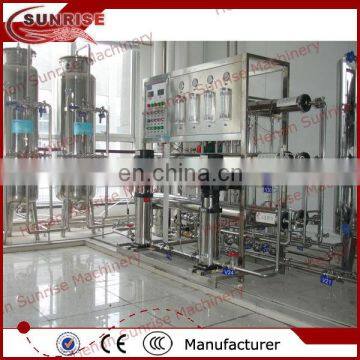

Pictures of the reverse osmosis membrane pressure vessels

List of the whole equipments for 2ton capacity reverse osmosis membrane pressure vessels
1. Pretreatment
a. Raw pump Material: SUS304 Power: 380v/0.75kw/50hz
b. Multi-media filter
c. Active carbon filter
d. Scale inhibition system
2. Reverse osmosis host Production: 3M3/h Material: SUS304
a. Ultrafilter Model: 5μ/40 Material: SUS304
b. Vertical multistage high-pressure pump Material: SUS304 Power: 380v/1.1kw/50hz
c. RO putamina
d. RO central control unit
e. pure water flow meter
f. Strong water flow meter
g. pressure gage
h. Low voltage protection switch
i. electrically operated valve
j. rack
l. electrical control system

Working principle of the reverse osmosis membrane pressure vessels

reverse osmosis membrane pressure vessels, the principle is the raw water under high pressure through a reverse osmosis membrane, the solvent water from high concentration to low concentration diffusion to achieve the separation, purification and concentration of purpose, because it is contrary to natural penetration direction, thus says it is reverse osmosis. Reverse osmosis can remove bacteria, viruses, colloids, organics, and more than 98% of dissolved salts. The method has low running costs, simple operation, high degree of automation, water quality and stability and other characteristics, and other conventional water treatment method has obvious superiority, widely used in water treatment related industries.

Working flow of the reverse osmosis membrane pressure vessels

Features of the reverse osmosis membrane pressure vessels

reverse osmosis membrane pressure vessels with price desalination process is essentially a physical method, it has excellent characteristics of conventional water treatment methods that are not in many aspects:
1.Reverse osmosis is at room temperature, using physical means no phase change will contain salt water desalination and purification. At present, ultra-thin composite membrane elements desalination rate can reach 99.5%, and water while removing colloids, organic matter, bacteria, viruses etc.
2. reverse osmosis membrane pressure vessels rely solely on water pressure as a driving force, the lowest energy consumption in many water treatment methods.
3.Reverse osmosis water system can run continuously, the system is simple, easy operation, product quality and stability.
4.Reverse osmosis unit high degree of automation, operation and maintenance and equipment maintenance workload rarely.
5.Equipment, small footprint, small space is required.
6.Both adapted to brackish water, seawater treatment, but also to adapt to low salinity fresh water treatment. Experience in process design company with years of industrial water treatment systems, equipment manufacturing, the system sets and application of membrane technology, selecting appropriate design parameters and process settings to ensure long-term stable operation of the equipment.

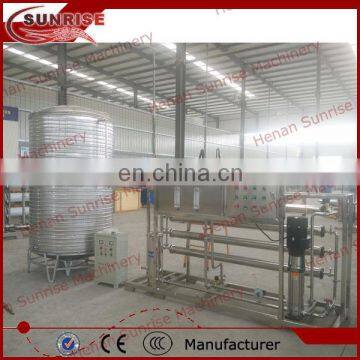

Tank of the reverse osmosis membrane pressure vessels

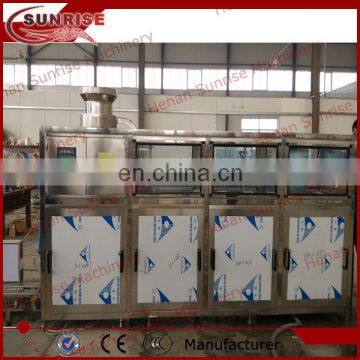

Picture of the bottle water filling machine, mineral water filling machine

After the water treatment machine, the pure water can be filled into bottles by using our bottle filling machine

Features of the bottle water filling machine, mineral water filling machine

1. This machine can be used to different volume of bottles and can be swithed within minutes.

2. The filling machine has 4, 6, 8, 12 nozzles, you can choose according to your capacity.

3. No bottles, no filling. The machine will only filling when there are bottles.

4. Touch screen control, more convenient.

Technical parameters of the bottle water filling machine, mineral water filling machine

Packing and Delivery of the machines

If you are interested in our reverse osmosis membrane pressure vessels, please feel free to contact Irene. My skype is irene52090   Cell/WhatsApp:  0086 13721438675
