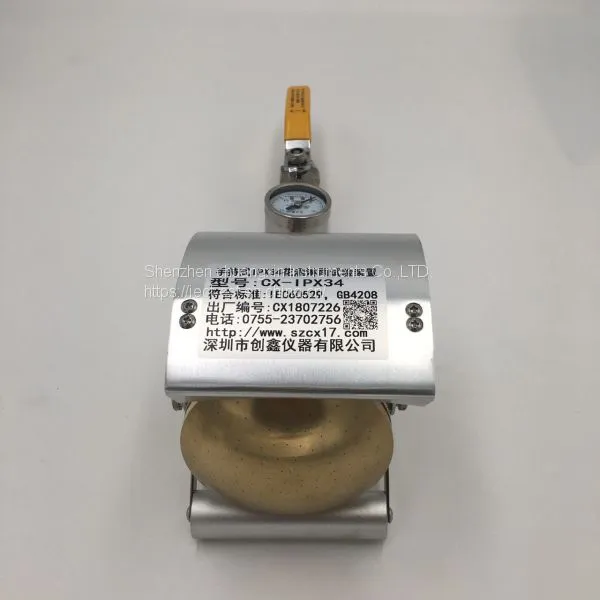

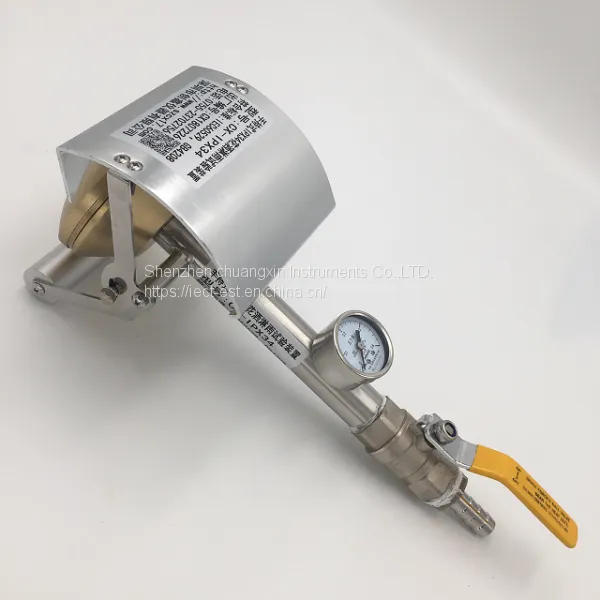

IEC60529 IPX3 IPX4 brass water spray nozzle for hand sprayer
Introduction:

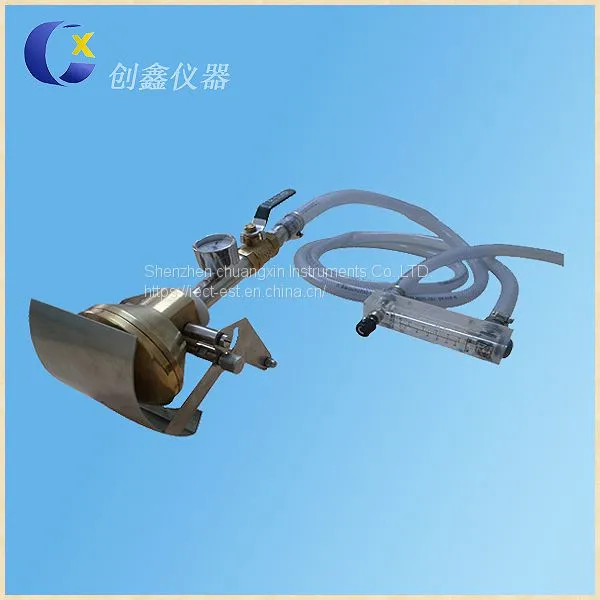

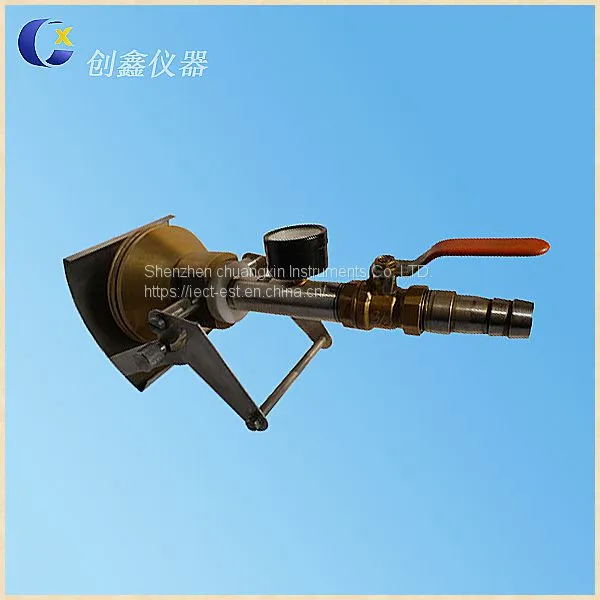

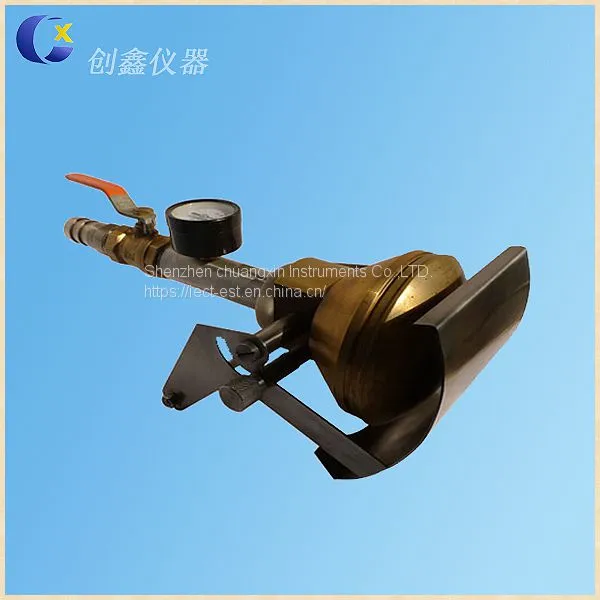

The IPX3-4 Spray Nozzle is a hand-held test device to verify protection against spraying and splashing water. The water pressure can be adjusted using the flow control knob on the device to give the required flow rate. The pressure can be seen on the gauge which is conveniently positioned by the nozzle. The spray pattern of the nozzle is made to the specifications of IEC 60529. A moveable shield can be put down over a portion of the nozzle for IPX3 or moved out of the spray pattern for IPX4.
Applications:
The Spray Nozzle is an alternative to the Oscillating Tube Tester for establishing the degree of protection against ingress of water. The Spray Nozzle is intended for use on specimens that will not fit within the diameter of the Tube Tester. The primary IEC tests include IPX3 and IPX4 protection against water spraying and splashing water.
Features:
· Spray nozzle made of brass
· Pressure gauge
· Movable shield with counterweight
· Ball valve for water flow regulation
· Water filter
· Hose connector
No. |
Item |
parameter |
1 |
Water supply |
Water flow rate is 50~150kpa clean water without inclusion. |
2 |
Spray nozzle parameters |

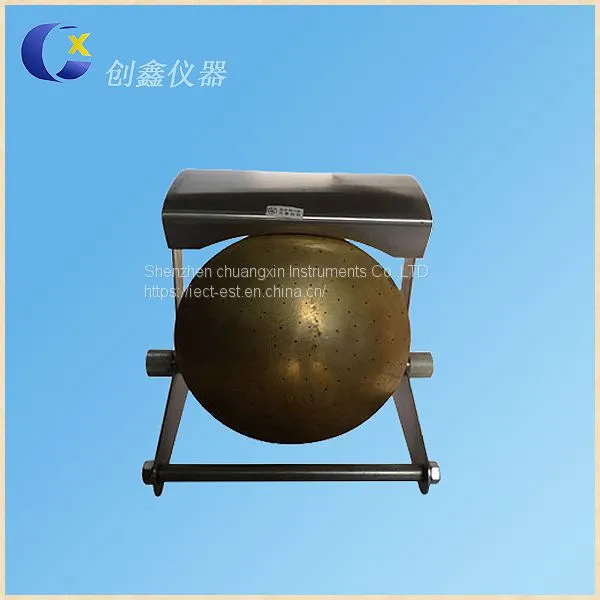

external diameter: 102mM spherical diameter: S 75.5mm There is a middle hole and There are 24 holes in the internal circle of holes of which the included angle is 30°. There are 96 holes in the external circle of holes of which the included angle is 15°. |
3 |
Water flow |
10L/min±5%,Flow meter is adjustable |
4 |
Range of pressure gauge |
0~0.4Mpa |
5 |
Baffle |
removable |
6 |
Pressure gauge |
0~0.25MPa |
7 |
Site requirements |
Dedicated IP waterproof test room,The ground should be flat with illumination With good function of inflow and drainage. Wall installation |
Number of Holes |
121 |
Diameter of Nozzle Holes |
0.5mm |
Material |
Spray nozzle make of brass |
Reference |
IEC60529, IEC60598-1, IEC 60335-1, IEC60745-1 |
