Waterproof Test IEC60529 Ipx3 Ipx4 Oscillate Tube Testing / Test Equipment

1. Application:
For checking the protection against water with spray nozzle of 0, 4 mm bore are used to prove the degrees of protection for the second characteristic numerals 3 and 4 "Protection against Spraying Water" resp. "Protection against splashing Water".

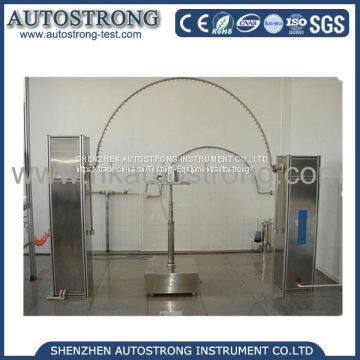

A complete test unit comprises a set of oscillating tubes as accessories, the oscillating appliance with the drive and-in the case of larger oscillating tubes-the opposite bearing. The oscillating tubes are manufactured with orifice radii of 200 mm to 1600 mm with a progressive ratio of 200 mm. According to IEC60529 figure 4, IEC60598 clause 9.2.5, IEC60947.

2. Standard Outfit:

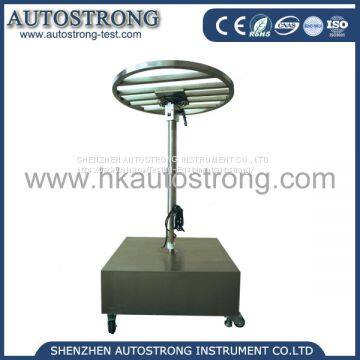

1 oscillating appliance, with flanged shaft to screw on the oscillating tubes, height above floor 1400 mm, on request with a second flanged shaft as shown on figure,

1 drive by 750W servo motor, oscillating speed 60° /s, with frequency converter, swiveling angle sensor, swiveling angle limiting safety switch, electromagnetic brake, brake release switch, emergency stopping switch and watertight socket to connect a turntable,

1 water supply with fine filter to be cleaned by reverse flow, pressure regulator and pressure indicating instruments, adjustable flow regulating valve and flow indicating instrument, electromagnetic valve and rotary union to supply the water through the flanged shaft, prepared to connect a hose of nominal diameter 20 mm,
1 resp. 2 opposite bearings, with flanged shaft to screw on the oscillating tubes, wall fastening type, also available for floor fastening,
