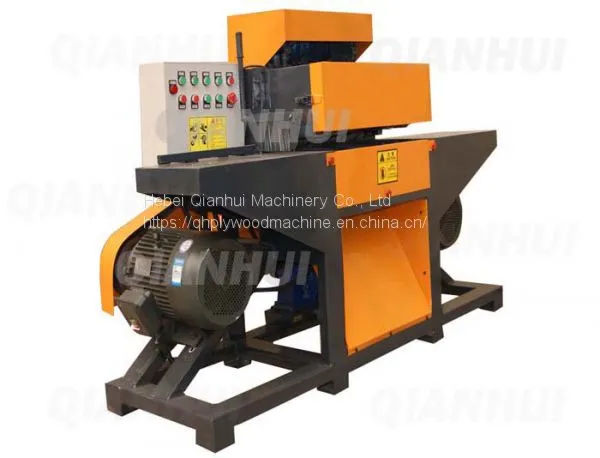

Multi Blade Rip Saw Machines for Square Timber
multi rip saw,multi blade rip saw
Technical Specification: | |
Model No. |
QHMS 602D |
Min Working Width |
10mm |
Max Working Width |
Unlimited |
Min Working Thickness |
30mm |
Max Working Thickness |
60mm |
Min Working Length |
400mm |
Max Working Length |
2000mm |
Feeding Speed |
Adjustable |
Motor Power |
11kwx2sets |
Dimension |
2000x900x1400mm |
Weight |
900kg |
Model No. |
QHMS 802D |
Min Working Width |
10mm |
Max Working Width |
unlimited |
Min Working Thickness |
30mm |
Max Working Thickness |
80mm |
Min Working Length |
400mm |
Max Working Length |
2000mm |
Feeding Speed |
Adjustable |
Motor Power |
11kwx2sets |
Dimension |
2000x900x1400mm |
Weight |
920kg |
|
Key Features: 1.The machine head adopts HT300 casting,so the stretching strength is increased and will not deform easily 2.The upper and lower shaft structure,multi plate cutting discharging,improve the efficiency of 5-6 times than the band saw 3.The company patented axis water,improve the service life of the saw 4. High quality chains for transmission 5.Press roller is lifted antomatically,easy to operate 6.Machine boby is made of square steel and steel plates,more durable 7.The main shaft high-quality materials through modulation,dynamicbalance,high stablility,wear resistant | |
