Spindle Veneer Rotary Peeling Lathe 3300m Length x φ2200mm For Face Veneer 0.2-2.6mm
Key: spindle peeling machine、pindle veneer peeling lathe、Face Veneer Making Machinery
Key Features:

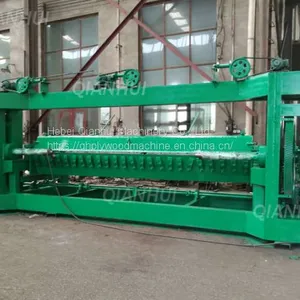

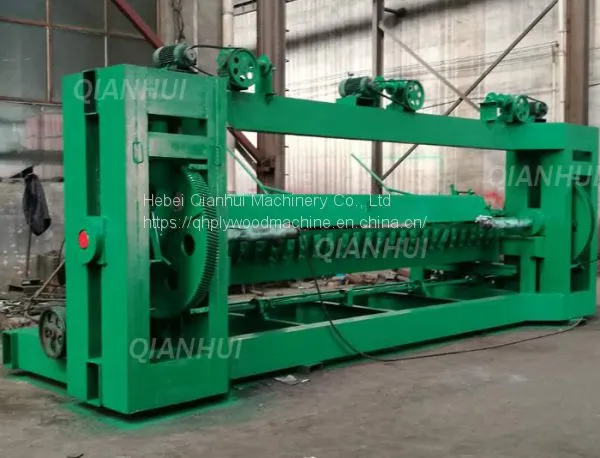

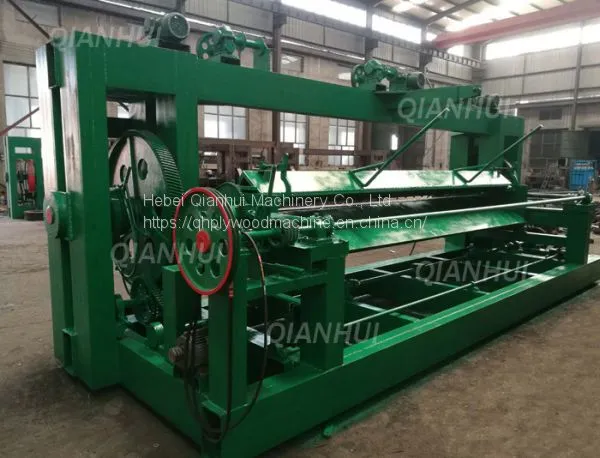

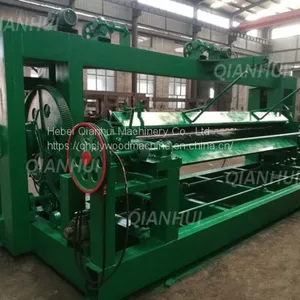

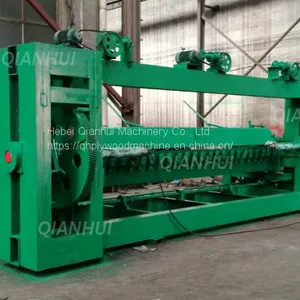

This is 11ft spindle peeling machine for making face veneer, it’s max peeling length 3300mm , max peeling diameter 2200mm,suitable for peeling keruing, teak, poplar etc. The spindle veneer peeling lathe uses a swinging veneer collection system.
Face Veneer Making Machinery is heavy duty machine , weight up to 14000 kg
Technical Specification:
Model No |
BX3300 |
Peeling Length |
2800-3300mm |
Peeling Diameter |
180-2200mm |
Peeling Thickness |
0.15-2.6mm |
Spindle Speed |
30-80m/min |
Spindle Diameter |
100-120mm |
Main Motor |
55kw Variable Speed Motor |
Knife Table Motor |
3kw |
Spindle Motor |
3kw x 2sets |
Thickness Adjust Motor |
4kw x 1 set |
Dimension |
6000x2300x2700mm |
|
Weight
http://www.articleconstruction.icu http://www. http://www. http://www. http://www. http://www. http://www. http://www. http://www. |
14000kg |
