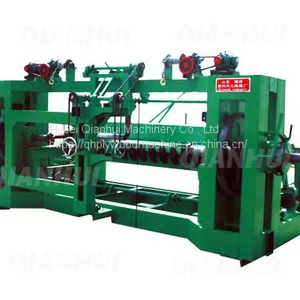

8ft Heavy Duty Spindle Face Veneer Lathe Max Peeling Diameter 2000 mm
Key：spindle peeling machine、spindle veneer peeling lathe、Spindle veneer rotary equipment
Key Features:
This is 8ft spindle peeling machine for making face veneer, spindle veneer peeling lathe is max peeling length 2600mm , max peeling diameter 2000mm,suitable for peeling keruing,teak, poplar etc, With swing veneer collector system.
Spindle veneer rotary equipment is heavy duty machine , weight up to 14000 kg is heavy duty machine , weight up to 14000 kg
Technical Specification:
Model No |
BX260-200 |
Peeling Length |
1900-2600mm |
Peeling Diameter |
180-2000mm |
Peeling Thickness |
0.15-2.6mm |
Spindle Speed |
30-80m/min |
Spindle Diameter |
100-120mm |
Main Motor |
22kw |
Knife Table Motor |
3kw |
Spindle Motor |
3kw x 2sets |
Thickness Adjust Motor |
4kw x 1 set |
Dimension |
5300x2300x2600mm |
|
Weight
http://www.articleconstruction.icu http://www. http://www. http://www. http://www. http://www. http://www. http://www. http://www. |
14000kg |
