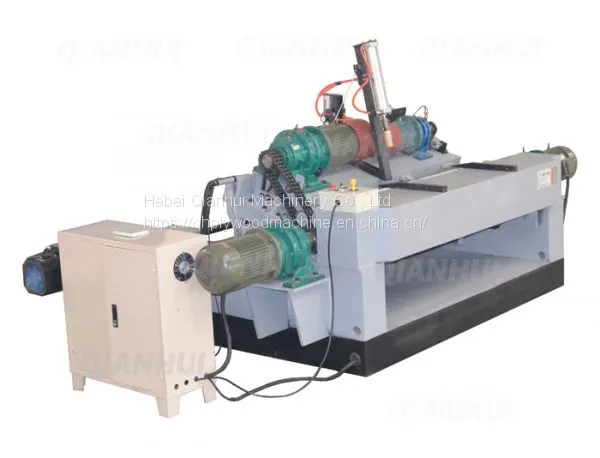

Spindleless Veneer Lathe With Clipper Builtin 2 In One
Technical Specification:
Model No. |
BX1400B |
||
Max Peeling Lathe |
1300 mm |
||
Max Peeling Diameter |
360 mm |
||
Left Log Diameter |
26 mm |
||
Peeling Thickness |
0.4-2.6mm |
||
Thickness Error |
±0.05 mm |
||
Peeling Speed |
45m/min |
||
Knife Size |
1400x180x16 mm |
||
Roller Diameter |
102 mm |
||
Roller Motors |
7.5kwx1set,5.5kw x 1 set |
||
Feed Motor |
5.5kw motor x 1 set |
||
Control System |
Inverter+PLC |
||
Dimension |
3500x1900x1350 mm |
||
Weight |
4000 kg |
||
|
Key Features: 1. 2 in One:Two functions veneer peeling and veneer clipping combined in one machine,so no need to buy another veneer clipping machine 2.Save Labor Cost: As the veneer will be directly cutted after peeling ,so no need one worker between clipping machine and peeling machine , 3.Make Full Use of Wood Log: This machine can keep the last piece of veneer full size,lets say , you are peeling and cutting veneer 1270x640 , it can make the last piece right size 640 width ,so you can will make more profit . | |||
