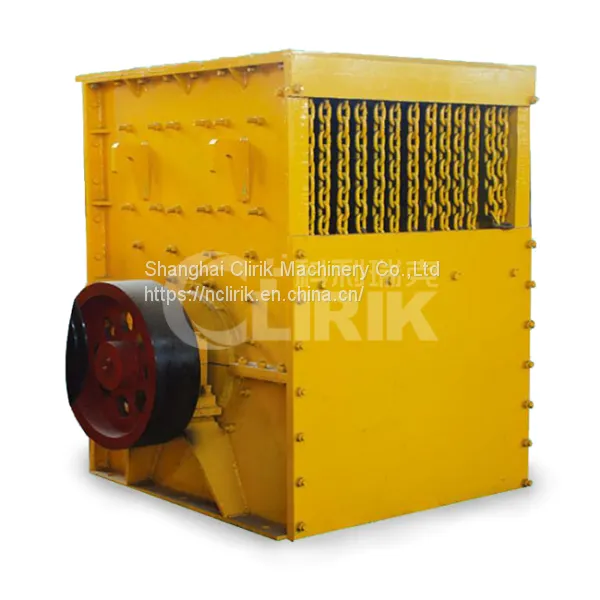

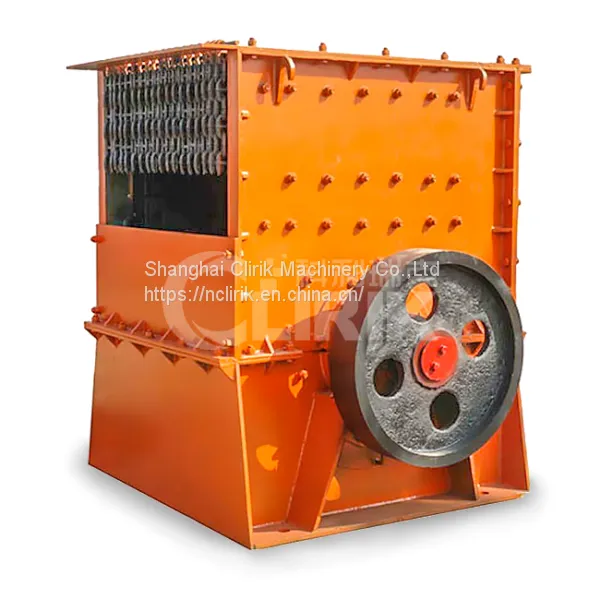

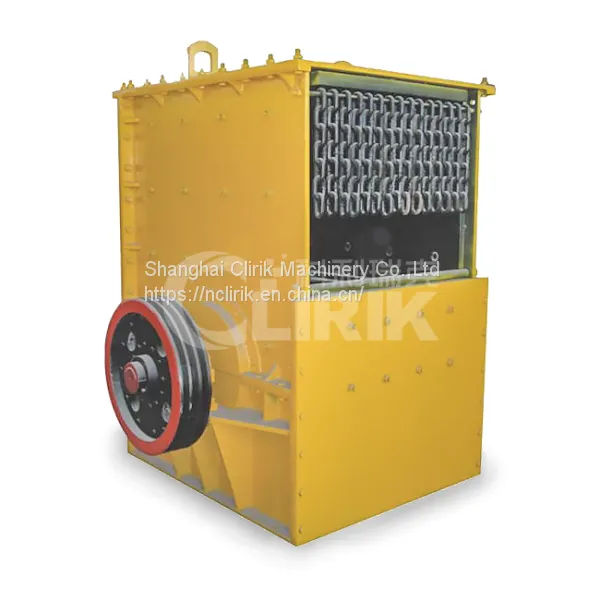

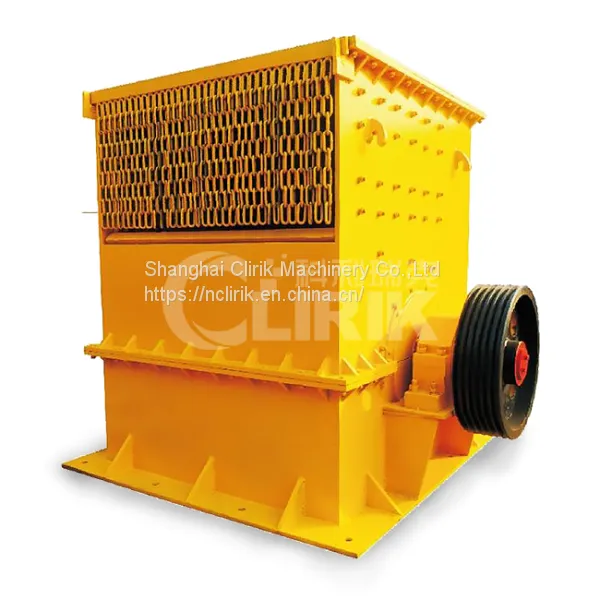

Cabinet Hammer Crusher 008613512155195

Cabinet Hammer Crusher 008613512155195 thumbnail-1
Cabinet Hammer Crusher 008613512155195 thumbnail-2
Cabinet Hammer Crusher 008613512155195 thumbnail-3
Cabinet Hammer Crusher 008613512155195 thumbnail-4
Cabinet Hammer Crusher 008613512155195 photo-1
Cabinet Hammer Crusher 008613512155195 photo-2
Cabinet Hammer Crusher 008613512155195 photo-3
Cabinet Hammer Crusher 008613512155195 photo-4
US$ 1000 - 9999 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Clirik
Place of Origin:
China
Model Number:
HPC
Contact Supplier Request Quote Chat Now
Shanghai Clirik Machinery Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Clirik
Place of Origin China
Model Number HPC
Type Cone Crusher
Certification CE/ISO
After-sales Service Provided Engineers available to service machinery overseas
Warranty 1 year
Weight depends on models
Dimension(L*W*H) depends on models
Application stone crushing
Condition New
Power(W) depends on models
Motor Type AC Motor
Capacity(t/h) depends on models

Brief Introduction of Cabinet hammer crusher:

Cabinet hammer crusher with feature of large feeding space, it is very suitable for processing big raw material with size 450-1400mm to small granularity below 100mm, which are widely used for mine, cement, building material, chemical industry and so on. It is suitable for crush raw materials with compression strength not more than 200Mpa, such as limestone, rock, plaster, coal gangue etc.



Working principle of Cabinet hammer crusher:

In cabinet hammer crusher gravity, hammers do high-speed circular motion along with rotors driven by motor.

After being fed into crusher, large stones are stacking on the shelf which is particular to box crusher. Raw materials are smashed into smaller pieces by hammers. Right following the fist crushing, unqualified pieces hit against the impact plate with new fed material at a tangent to circular motion of Hammers. So once for all, material undergo two steps of crushing, from coarse to medium size then to qualified small size. Finished product are sieved through screen and discharged at a uniform particle size.

Benefit

1.Large feeding size, high crushing ratio, uniform particle size,

2.The finished size can be adjusted, high productivity.
3.Durable hammers, turning type cabinet, easy maintenance.
4.Coarse and medium reduction in one time, which simplified sand-making process.
Specifications
Model PC600 PC800 PC1000 PC1200
Rotor speed(r.p.mm) 600-800 650-750 650-750 600-750
Max feeding size(mm) 550 780 780 800
Finished particle size(mm) ≦50 ≦50 ≦50 ≦50
capacity (t/h) 30-50 40-80 50-100 100-160
Powder(KW) 40-55 75-90 90-110 110-132
Weight( kg) 4200 4800 6500 8300

Note: This specification is just referencing, any changes are subject to the products.


Product Tags: Cabinet Hammer Crusher , Hammer Crusher , Stone pulverizer , stone crusher , jaw crusher , crushing plant , grinding plant , impact crusher , cone crusher
