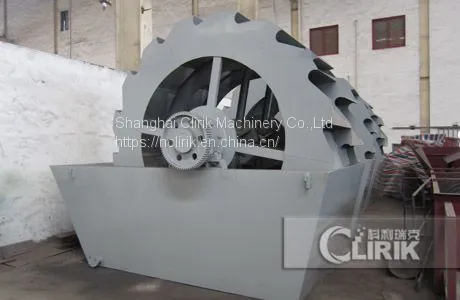

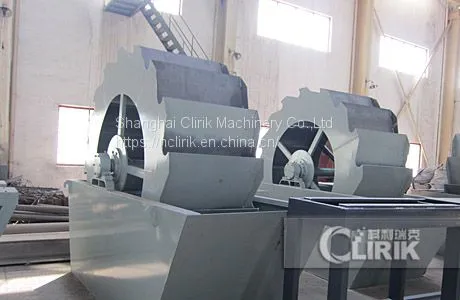

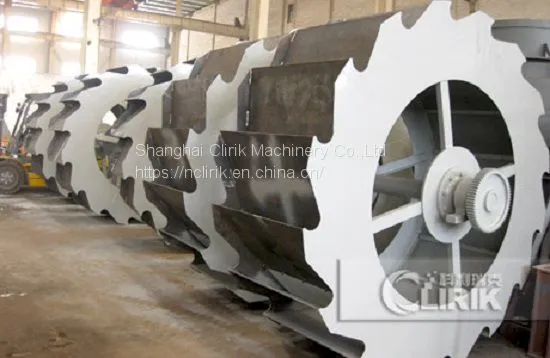

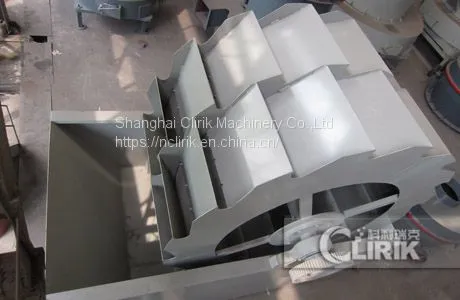

XS Sand Washer 008613512155195

XS Sand Washer 008613512155195 thumbnail-1
XS Sand Washer 008613512155195 thumbnail-2
XS Sand Washer 008613512155195 thumbnail-3
XS Sand Washer 008613512155195 thumbnail-4
XS Sand Washer 008613512155195 thumbnail-5
XS Sand Washer 008613512155195 photo-1
XS Sand Washer 008613512155195 photo-2
XS Sand Washer 008613512155195 photo-3
XS Sand Washer 008613512155195 photo-4
XS Sand Washer 008613512155195 photo-5
US$ 1000 - 9999 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Clirik
Place of Origin:
China
Model Number:
XS
Contact Supplier Request Quote Chat Now
Shanghai Clirik Machinery Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Clirik
Place of Origin China
Model Number XS
Type Impact Crusher
Certification CE/ISO
After-sales Service Provided Engineers available to service machinery overseas
Warranty 1 year
Weight depends on models
Dimension(L*W*H) depends on models
Application stone crushing
Condition New
Power(W) depends on models
Motor Type AC Motor
Capacity(t/h) depends on models

Brief Introduction of XS Sand washer:

XS Sand washer is used for removing dust in sand. It aims at improving the quality of sand. It is especially applicable to wash construction sand and paving sand. Sand washing machine is widely used for cleaning materials in the following industries: quarry, minerals, building materials, transportation, chemical industry, water conservation and hydropower, cement mixture station and so on.



Sand washer



Working Principle of XS Sand washer:

The electric motor runs slowly with the impellor after decelerated by the belt, decelerator and gears wheel. The sand and stone flow into washing launder from feeding launder, rolls with the impellor, and grinds each other. The impurity covering the sand is washing away. At the same time, add more water, the strong water flow will take away waste and some low-weight wastes from washing launder. Through the above process, the washing function is finished. The clean sand and stone is lift up by vane. When it goes up slowly, the water begins to drop through the mesh and fall back in the washing launder. On one hand, water is removed from the sand and stone; on the other hand, the water can be fully used. Finally, the sand and stone goes to the out launder from the rotary impellor to finish the washing task.



sand washer

Benefit

Reasonable structure, high efficiency, and little sand loss during washing; the most advantageous factor is that the transmission device isolates with sand and water, which greatly reduces the failure rate. It is the perfect equipment for domestic sand washer industry.

Specifications


Specification
XS2200
XS2600
XS2900
XS3500
Wheel bucket diameter(mm)
2200
2600
2900
3500
Rotation speed(r/min)
1-2
1-2
0.8-1.5
0.8-1.2
Processing capacity(t/h)
15-30
20-50
50-100
120-200
Motor power(kw)
4
5.5
7.5
11
Total weight(kg)
4300
5600
8100
9900
Dimensions (L*W*H) (mm)
3150*1910*2280
3520*2390*2690
3820*2640*3200
4420*2930*3800

Note: This specification is just referencing, any changes are subject to the products.
