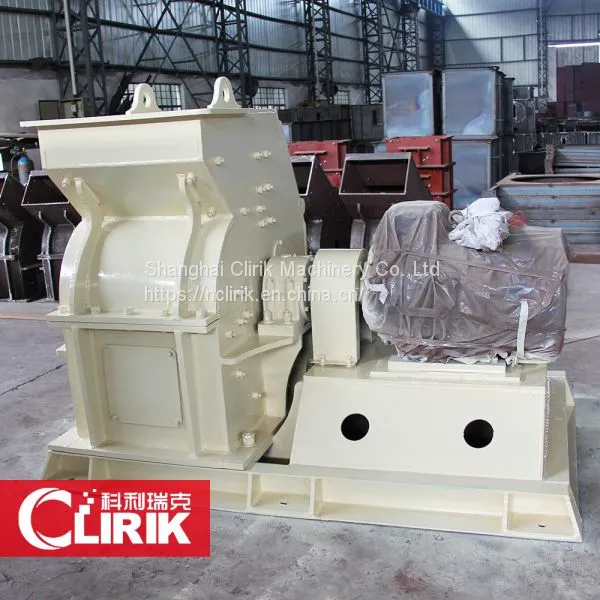

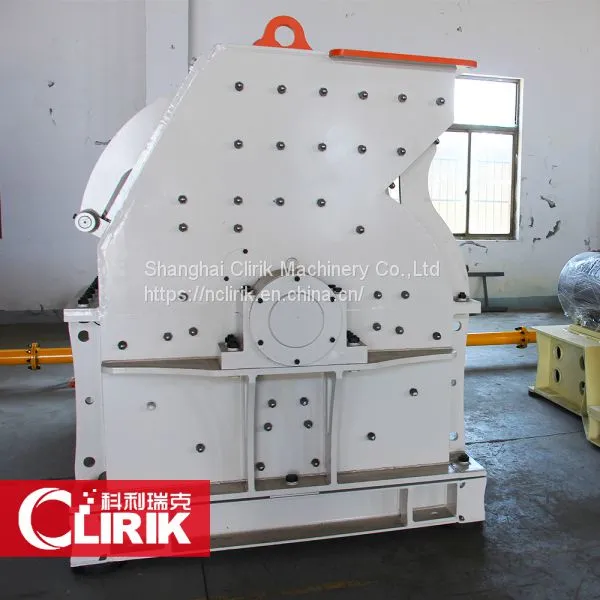

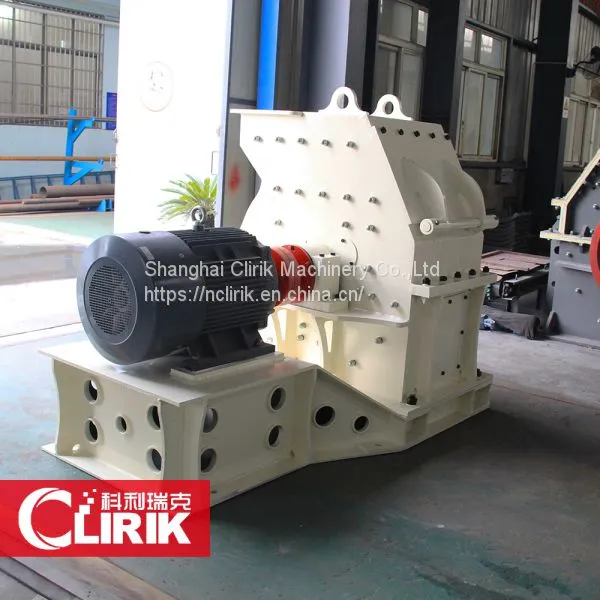

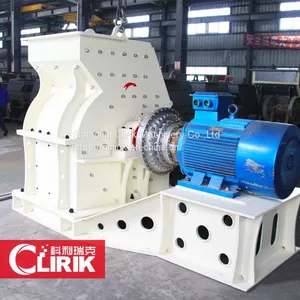

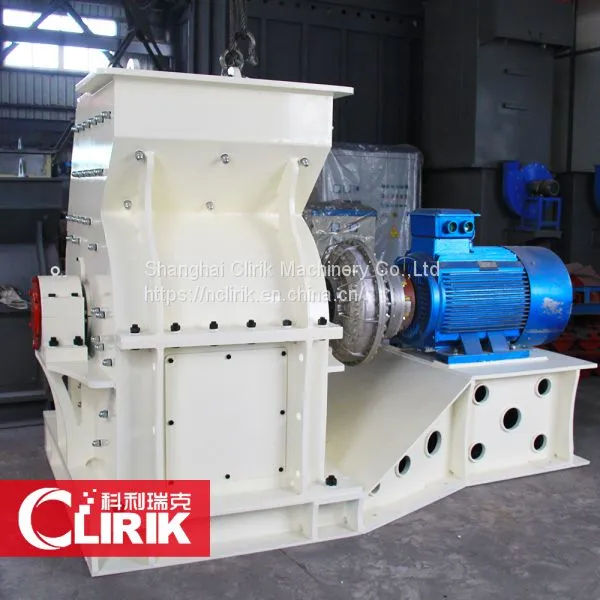

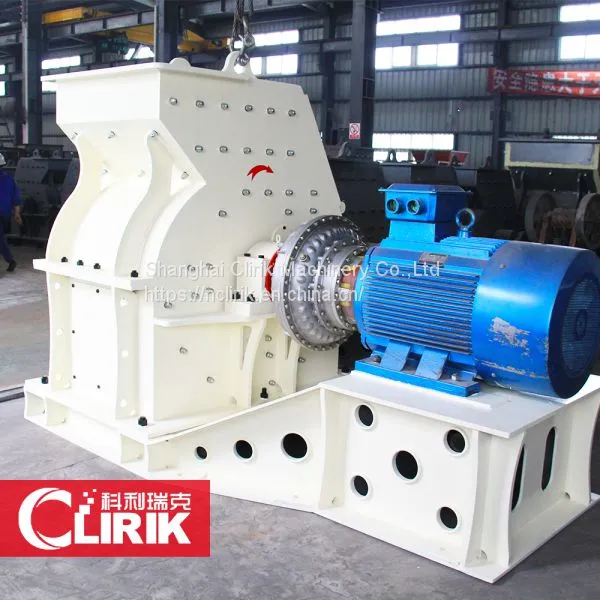

Introduction of hammer crusher Large materials entering the crusher through the feed inlet are stricken, impacted, cut and ground by the high-speed hammers to small size. Qualified materials crushed will be screened out and exit from the gap of the grate bars while the unqualified will be left in the crushing cavity to be further hammered and ground until reach the standard size. The size of the final product can be adjusted by changing the grate bars. The gap between the rotors and the grate bars can also be adjusted according to different requirement. Type PC400x300 PC600x400 PC800x600 PC1000x800 PC1200x1000 Rotor Diameter/mm 400 600 800 1000 1200 Rotor Width mm 300 400 600 800 1000 Rotor Speed r/min 1100 1000 960 980 650 Max feeding size mm Finished size mm 0-10 0-20 0-25 0-25 0-25 Capacity/ t/h 3-8 8-15 15-45 40-60 120-200 Power KW 11 18.5 45 75 110-132 Hammer Number/pieces 16 20 28 30 60 Weight/t 0.5 1.6 4 6.5 13.1 Dimension L*W*H/mm 855*795*860 1150*1095*1230 2360*1490*1415 3072*1720*2121 5000*2500*3100 Please fill in your need products and your message and please do not forget mail and/or phone if you like to be contacted. We are the professional machine manufacturer in China with 30 years experience. Pls kindly check the following, in order to select a suitable machine, send you specific techinical data, quotation and the solution drawing for you. We hope you can tell us these details, we will give you the best quotation, technical data and solution drawing ASAP, thanks. Your satisfaction is our greatest pursuit, we would like to sincerely for your service! We look forward to your inquiry!
Hammer mill crusher is equipment using high-speed rotary hammers to crush materials, mainly applied to the industries of metallurgy, mining, chemistry, cement, construction, refractory materials and ceramics. It can crush hard and soft ores into medium or small size, such as barite, limestone, gypsum, terrazzo, coal, slag, and up to 100 different kinds.
Working principle of hammer crusher
Hammer crusher mainly consists of frame, rotor, support iron and grate bars. The frame is divided into two parts: Upper part and lower part which are welded by steel plates after being cut. Liners made of high manganese steels within the frame can be replaced after being worn out. The rotors consist of the turn plate, pin shafts, and hammers which are grouped regularly in the main shaft. The motor drives the rotors to rotate quickly in the crushing cavity, and hammers spread outward as a result of centrifugal force from the rotation of the rotors.
