Impact Crusher 008613512155195

Impact Crusher 008613512155195 thumbnail-1
Impact Crusher 008613512155195 thumbnail-2
Impact Crusher 008613512155195 thumbnail-3

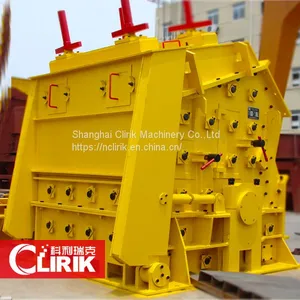

Impact Crusher 008613512155195 thumbnail-4
Impact Crusher 008613512155195 thumbnail-5

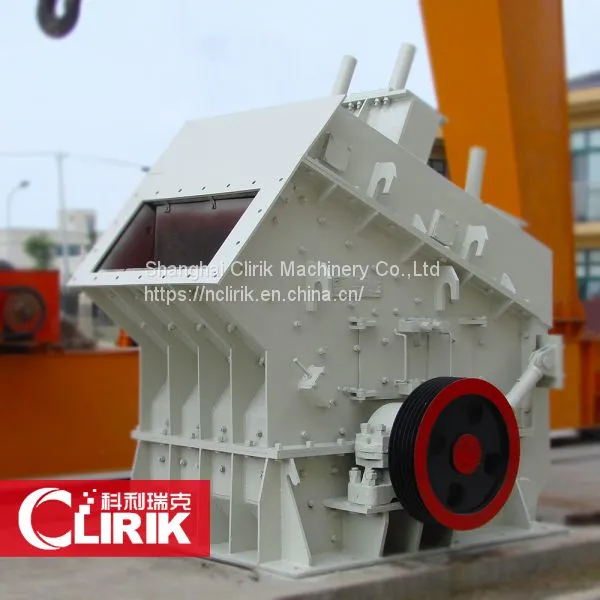

Impact Crusher 008613512155195 photo-1

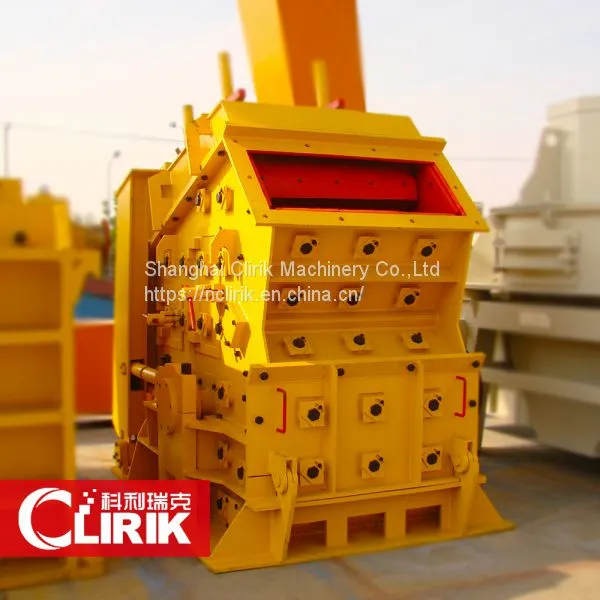

Impact Crusher 008613512155195 photo-2

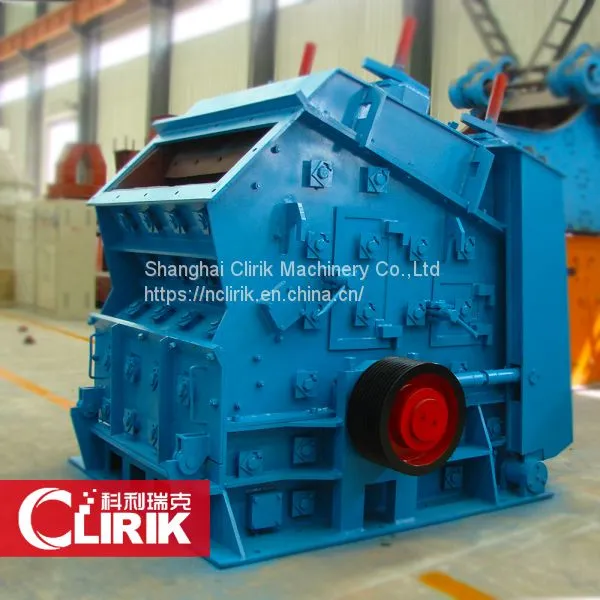

Impact Crusher 008613512155195 photo-3

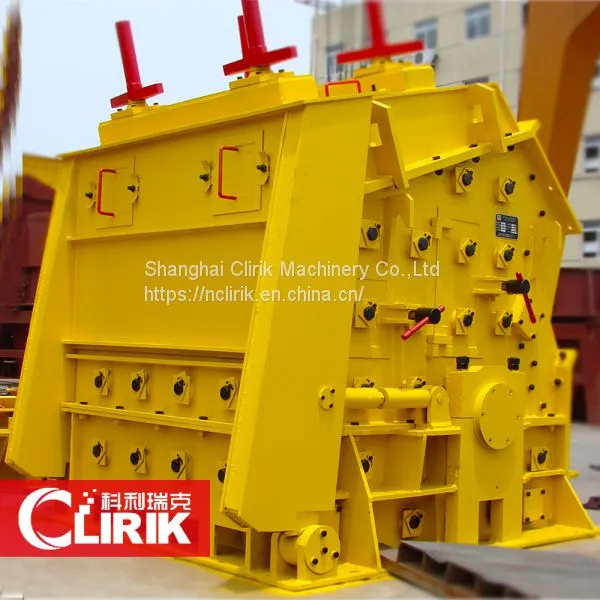

Impact Crusher 008613512155195 photo-4

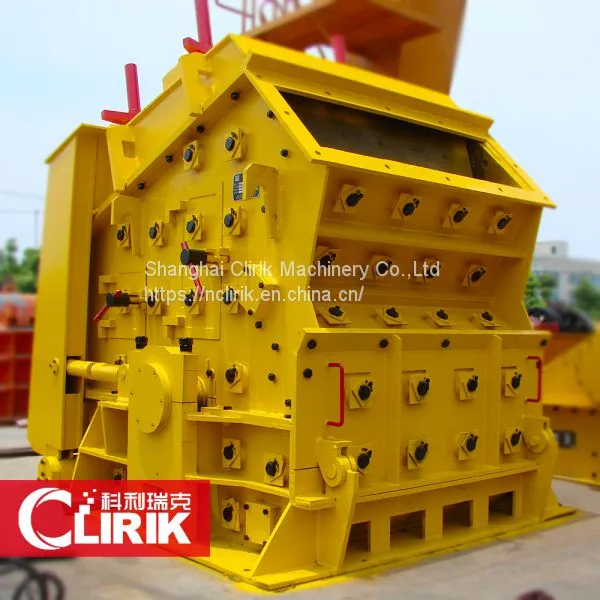

Impact Crusher 008613512155195 photo-5
US$ 1000 - 9999 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Clirik
Place of Origin:
China
Model Number:
PFW
Contact Supplier Request Quote Chat Now
Shanghai Clirik Machinery Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Clirik
Place of Origin China
Model Number PFW
Type Impact Crusher
Certification CE/ISO
After-sales Service Provided Engineers available to service machinery overseas
Warranty 1 year
Weight depends on models
Dimension(L*W*H) depends on models
Application stone crushing
Condition New
Power(W) depends on models
Motor Type AC Motor
Capacity(t/h) depends on models

Application of Impact Crusher



This series impact crusher is able to crush coarse, medium and fine materials such as granite, limestone and concrete whose feeding granularity does not exceed 500mm and compression strength does not exceed 350MPa in many industries such as ore crushing, railway, highway, energy, cement, chemistry and constriction. The size of the discharging granularity is adjustable, and the crushing specifications are diverse.



This series impact crusher is able to process the materials whose length of a side is below 100~500mm and maximum compression strength is 350Mpa, and it has the advantages of big crushing chamber and that the crushed materials are in the form of cube, so that it is suitable for crushing medium hard materials such as limestone in cement plant, and it has such advantages as big production ability and small discharging granularity.



Working Principle of Impact Crusher



Impact crusher is a kind of crushing machine that uses impacting energy to crush materials. When the machine works, driven by the electro motor, the rotor will rotate with high speed, and when the materials go into the action zone of the plate hammer, they will strike and are crushed on the plate of the rotor, and then are crushed again when they are thrown to the impacting device, and then the materials will bounce back from the impact lining board and go to the action zone of the plate hammer and are crushed again. This process will proceed repeatedly, and the materials go into the first, second and third impacting chamber to be crushed until they are crushed to the required granularity, and then discharged from the discharging mouth. Adjusting the gap between the impacting rack and the rotor can change the discharging granularity and the shape of the materials.



Features of Impact Crusher



1. It has big feeding mouth, high crushing chamber, high adaptability of the material hardness and small amount of stone powders

2. The gap between the impacting plate and the plate hammer is convenient to adjust so that it can effectively control the discharging granularity and the particle shape is good.

3. It has compact structure and strong rigidness, and the rotor has big rotational inertia.

4. It adopts high chromium plate so that it has shock resistance, abrasion resistance and big impacting force.

5. It adopts no key links so that it is convenient in maintenance and repair and economical and reliable.

6. It has comprehensive crushing functions, high production ratio, small abrasion and high comprehensive benefits.



Two-curtain cavity hydraulic impact crusher



Model Spec. Feeding size (mm) Max. feeding size (mm) Capacity (t/h) Power (kw) Weight (t) Overall dimension (mm)
PFW 1210II 1150×960 1100×1030 400 90-160 90-110 17.0 2400×1870×2550
PFW 1214II 1150×1400 1100×1430 500 130-200 132-160 22.0 2400×2310×2550
PFW 1315II 1300×1500 1200×1530 600 180-320 160-200 29.0 2700×2570×2800
PFW 1318II 1300×1800 1200×1830 700 240-400 200-250 34.0 2700×2870×2800




Three-curtain cavity hydraulic impact crusher



S model

Spec.

Feed opening size (mm)

Max. feeding size (mm)

Capacity (t/h)

Power (kW)

Weight (t)

PFW
1210

1150X960

570X990

250

70-120

90-110

15.0

PFW
1214

1150X1400

570X1430

250

90-170

132-160

19.0

PFW
1315

1300X1500

625X1530

300

180-270

160-200

25.0

PFW
1318

1300X1800

625X1830

300

220-300

200-250

30.0

PFW
1415

1400X1500

840X1600

350

250-450

220-280

32.0





Please fill in your need products and your message and please do not forget mail and/or phone if you like to be contacted. We are the professional machine manufacturer in China with 30 years experience. Pls kindly check the following, in order to select a suitable machine, send you specific techinical data, quotation and the solution drawing for you.



1. What is the raw material do you want to process?
2. What is the capacity per hour do you need?
3. What is the raw material input size and probable moisture?
4. What is the output size of your product?
5. Do you have other requirement?


We hope you can tell us these details, we will give you the best quotation, technical data and solution drawing ASAP, thanks. Your satisfaction is our greatest pursuit, we would like to sincerely for your service! We look forward to your inquiry!
