Product characteristics of [insulation / voltage tester]
1. Have voltage strength (ACW,DCW) and insulation resistance (IR) test;
2. The high voltage module is used to generate the high voltage signal, and the output voltage is controlled and set accurately.
3. The output voltage is automatically stabilized by the voltage sampling circuit.
4. Alarm over limit by measuring loop current (leakage current);
5. The high resistance measurement module is used to measure the insulation resistance of the test sample by (IR).
6. Can be customized according to customer needs non-standard.
Product introduction of [Insulation / Voltage Tester]

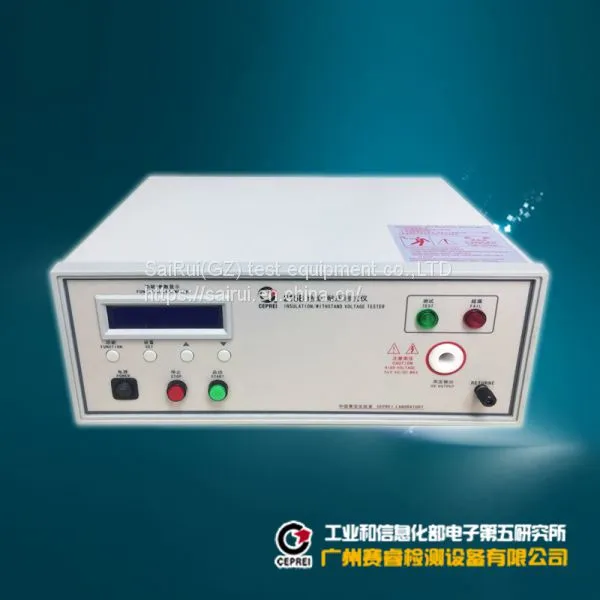

The 215B withstand voltage/ insulation tester is a comprehensive test instrument for measuring the withstand voltage (ACW, DCW) and insulation resistance (IR) of the product.
The design principle of the instrument accords with the safety performance testing requirements of
Technical parameters of [Insulation / voltage tester] (not customizable)
Input characteristics：
1. Input voltage: AC 220V ±10%;
2. Input frequency: 50 Hz / 60 Hz;
3. Working environment: temperature: 10 ℃ ~ 30 ℃, humidity: less than 75% RH;
4. Power supply safety tube: 2A;
5. Form factor: 410 (W) x 350 (D) x 160 (H);
6. Weight: about 15.
Maintenance and regular maintenance of [Insulation / voltage tester]
Maintenance:
To prevent the occurrence of electric shock, do not lift the cover of the instrument. All parts inside the instrument need not be maintained by the user. If there is an abnormal condition in the instrument, please ask for maintenance from my laboratory. the attached lines and block diagrams are for reference only.
Regular maintenance:
At least once a year, the AC power supply and relevant accessories of input power line shall be carefully checked and checked to protect the safety of the user and the accuracy of the instrument.
For more information about products, please contact us and visit the company.
Address: Tianhui Road, Wisdom City, Tianhe District, Guangzhou
Tel: 86-20-37896688
Fax:86-20-37896699
Mobile phone: 86-13711272581,Miss Liu
Web site:
