Product characteristics of [surge pulse generator]
1. The instrument shall be designed and manufactured according to the requirements of H26.10 of GB1453.6.1-1998 (IEC60730-1);
2. Panasonic PLC (FP-X C14R) was used for control.
3. Panasonic A / D (AD2) converter is used for sampling.
4. Through Taiwan Willentong 7-inch color touch screen (TK6070iH) display and set a variety of parameters.
Product introduction of [surge pulse generator]

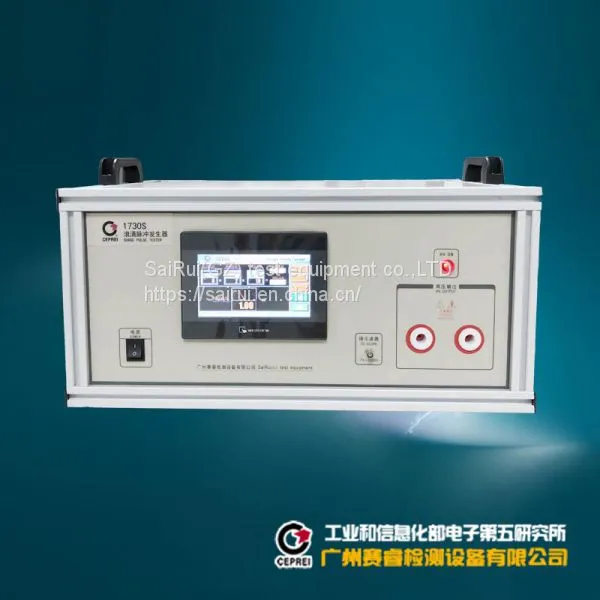

1730S surge pulse generator is a special instrument to produce reduced amplitude oscillation wave. This instrument is designed and manufactured according to the H26.10 clause of GB14536.1-1998 (IEC60730-1) standard and is controlled by Panasonic PLC Programmable Controller (FP-X C14R). All the parameters and the working state of the instrument are displayed and set on Taiwan's 7-inch color touch screen (TK6070iH). Humanized interface, easy to operate. The instrument also has zero-volt harmonic over-voltage protection to ensure the safety and reliability of the instrument. The instrument is simple in operation, good in performance, high in reliability and reasonable in price. It can be widely used in electrical safety testing laboratories and manufacturers of electronic and electrical appliances.
Technical parameters of [surge generator] (customizable)
Input characteristics：
1. Input voltage: AC 220V-10%
2. Input Frequency: 50Hz/60Hz
3. Working environment: temperature: 10 ℃ ~ 30 ℃, humidity: ≤ 75% RH
4. Power supply safe: 3A
5. Dimensions: 640mm (W) × 460mm (D) x 320mm (H)
6. Weight: about 45%
Qualification：
1. Output peak voltage (Vp): 0.1 ~ 3 kV, resolution: 0.01 kV, key setting
2. Display voltage accuracy:1 (10% + 3 words)
3. Rise time: 0.5. mu.S (see attached drawing)
4. rising time error: equal to 0.2 uS
5. Period of reduced Oscillation Wave (T): 10 μ S (see figure)
6. Its error: ±3uS
7. Amplitude reduction of reduced oscillatory waves: 60% (see chart)
8. Error: ±10%
9. Timer (charge / discharge time): 1 x 999s
10. Accuracy: ±3%
11. Counter: 0-999 times
12. Accuracy: ±1
13. Charging capacitance: 0.5 uF/ 10kV
14. Output impedance: 200 Ω and 500 Ω switchable, ±10%
15. Zero-volt harmonic over-voltage protection: continuous setting of protection values (in-machine adjustment settings)
16. High Voltage Transformer Power: ≥ 150VA
17. Instrument size: about 640mm (long) x 460mm (deep) x 320mm (high)
18. Working power: 220V,10%, 50Hz, 2Hz
Maintenance and regular maintenance of [surge generator]
Maintenance:
To prevent the occurrence of electric shock, do not lift the cover of the instrument. All parts inside the instrument need not be maintained by the user. If there is an abnormal condition in the instrument, please ask for maintenance from my laboratory. the attached lines and block diagrams are for reference only.
Regular maintenance:
At least once a year, the AC power supply and relevant accessories of input power line shall be carefully checked and checked to protect the safety of the user and the accuracy of the instrument.
